Using the System

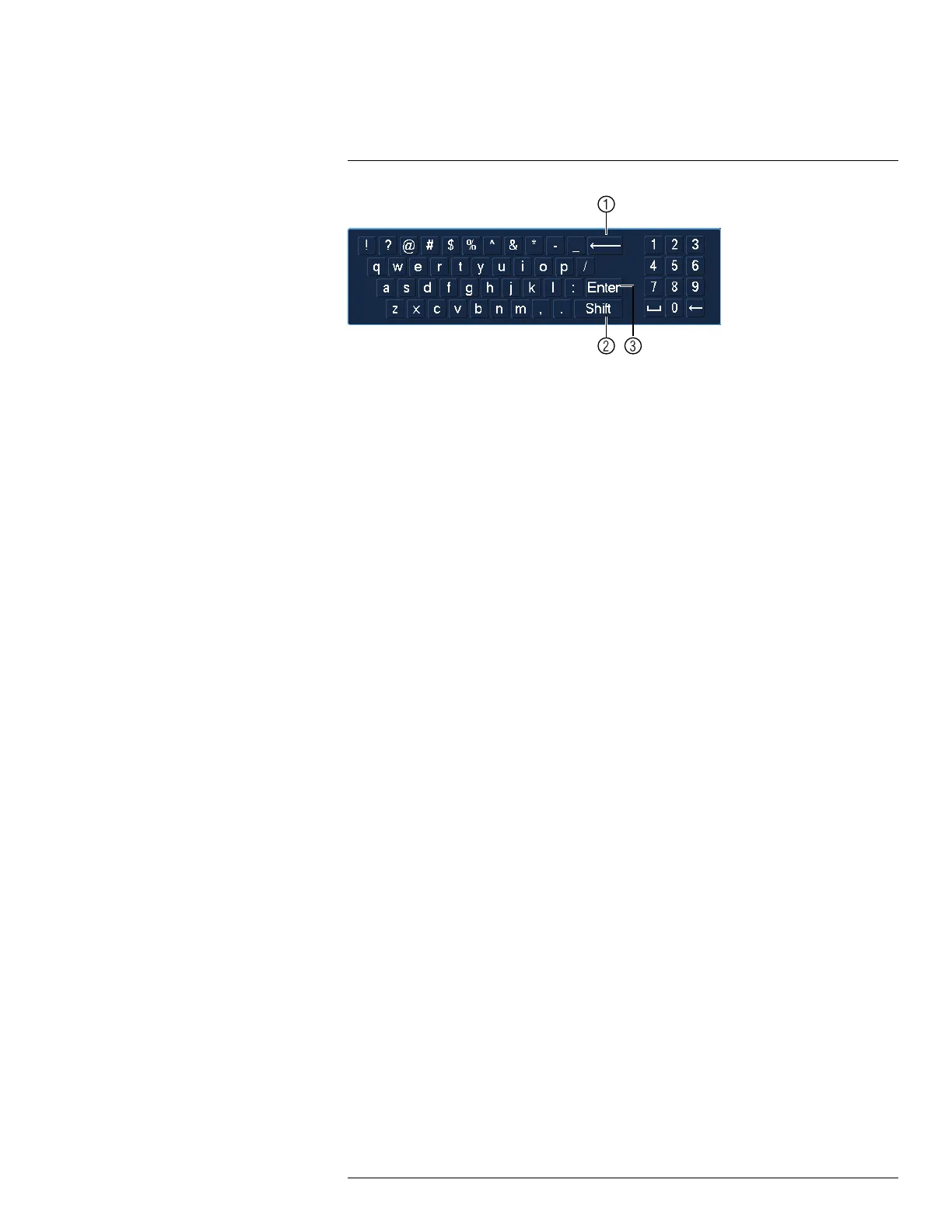

1. Backspace.

2. Enter capital letters.

3. Confirm entry.

#LX400096; r.45547/45547; en-US
