Chapter 3 - External Views, Part Names and Functions
3.1 Print Head Carriage Assembly

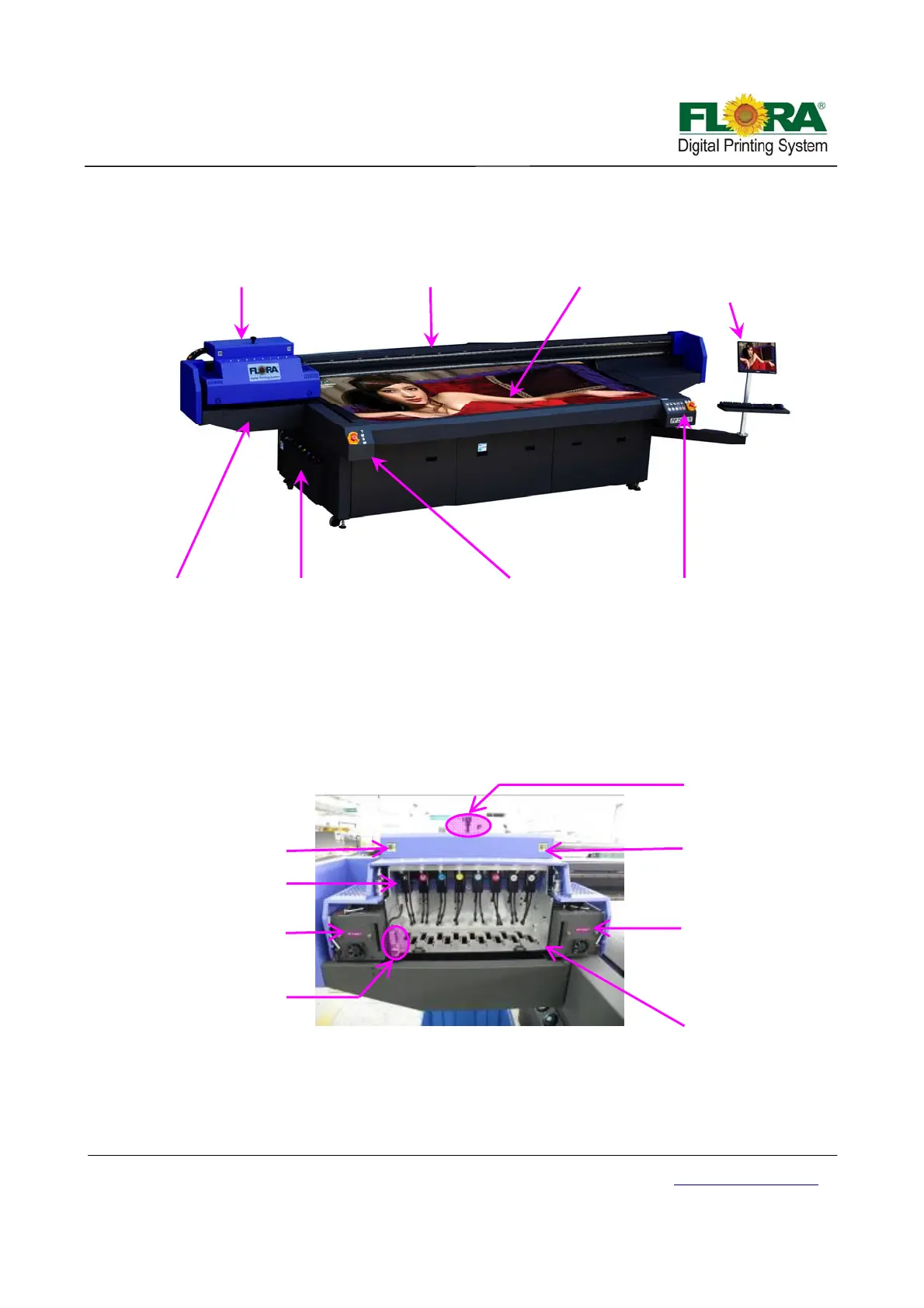

The print head carriage assembly houses the print heads, secondary ink tanks, print head
control board, raster reader, negative & positive pressure sensor, carriage height adjustment motor and
the two UV lamps.
3.1.1 Print heads Platform
This platform is also called carriage platform, which is serves as print heads fixed frame.
There are two kinds of platform because of different print head configuration.
Maintenance
Station
Carriage
A
ssembl
y
Left Control Panel
Right Control Panel
Beam Assembly Flat Bed Monitor & Key board
Assembly
Load ink Area
Negative pressure
sensor display
Height adjust knob
Left UV Lamp
Right UV Lamp
Ink tanks
Print heads Platform
Positive pressure
sensor display
Height adjustment
Assembly
Print Head Carriage Assembly
