3.5 Electrical fixation Shelf
The electrical control panel contains the servo motor drivers for the Beam Movement servo
motors, Carriage servo motor and Media Feeding and Take-Up System servo motor, DC Power supplies,
Servo card, USB_IF control board and the Main Circuit breaker.
3.6 Ink Supply Control Compartment
It is located on the side of the ink bottles compartment. The buzzer, negative pressure air pump
and the corresponding ink supply pumps are mounted on the ink supply control compartment.
3.7 Ink Bottle Compartment
It serves as a compartment for ink and waste bottles and is located at the back of the machine.

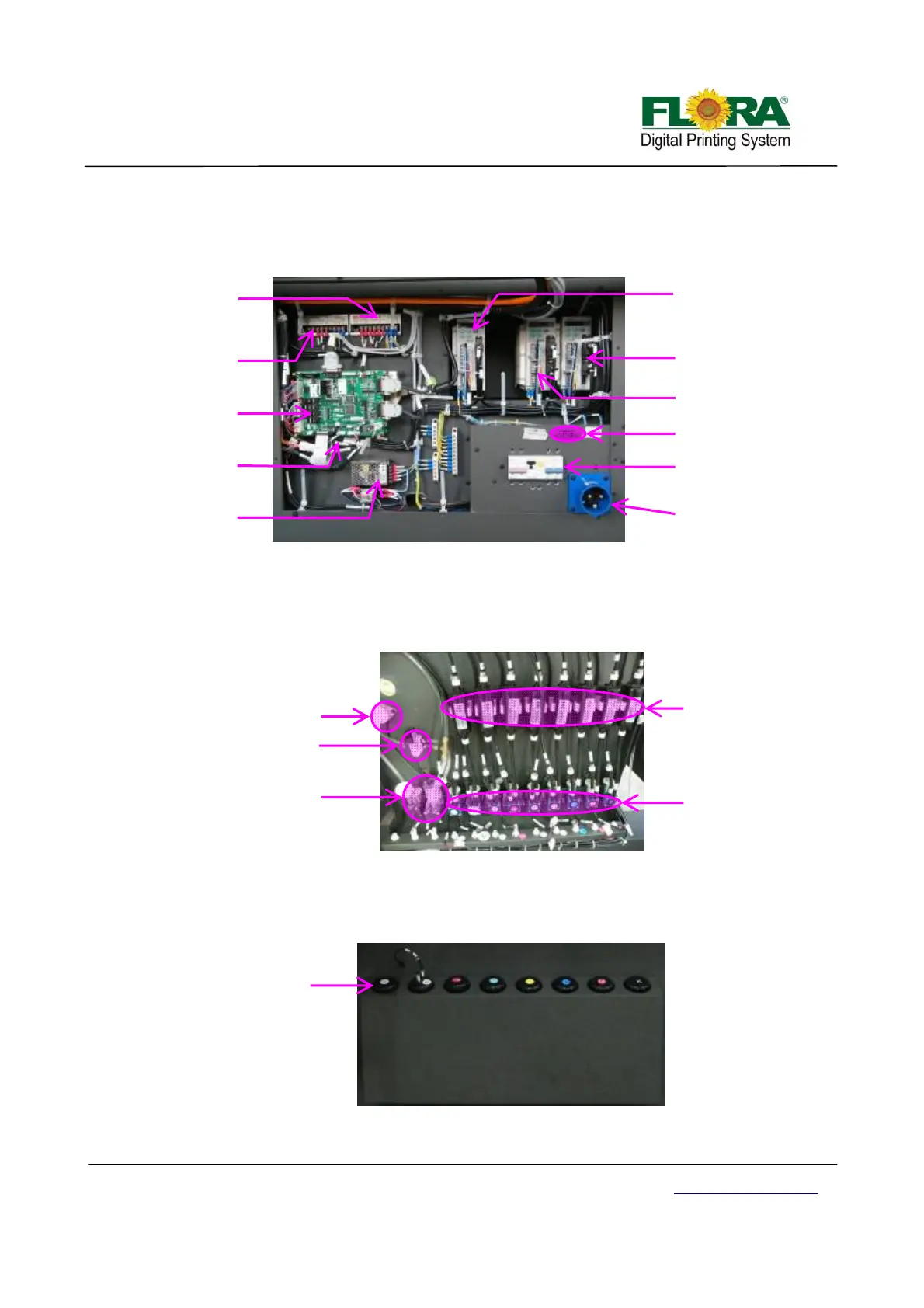

Electrical Control Chamber
Servo Card
Servo Driver for Beam
Right Servo motor
Servo Driver for Beam Left
Servo motor
USB_IF Board
Main Circuit
Breaker
AC Power Inlet
Servo Driver for
Carriage
Power Supply 3
(
15 Vdc
)
Power Suppl
y
1
(
24 Vdc
)
Power Supply 2
(15 Vdc)
NP Extend Power Inlet
Ink supply control compartment
Air pump
Ink filter
Ink pump
Buzzer
Solenoid Valve
Ink Bottle Compartment
Ink bottle
compartment
