control panel and software.

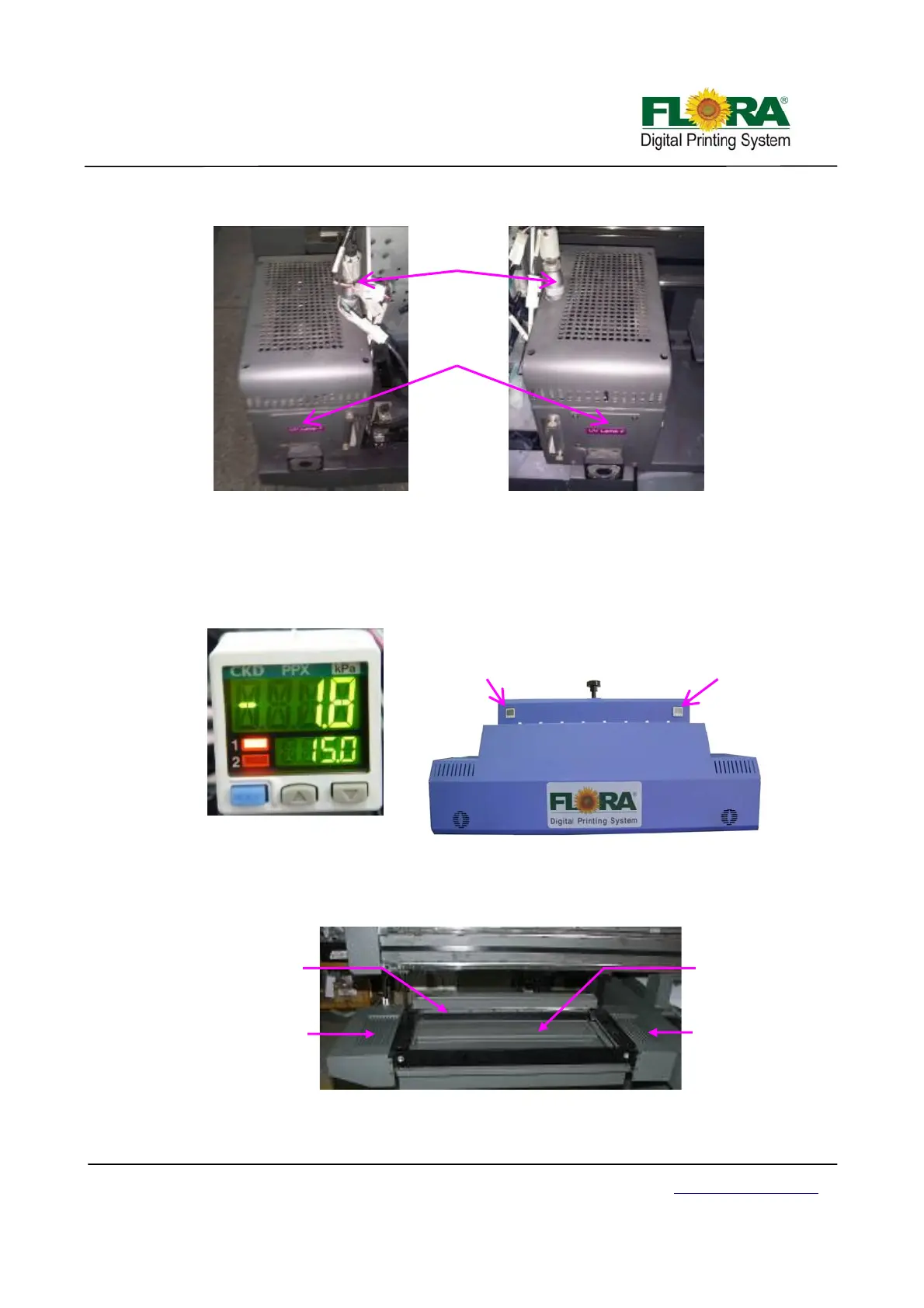

3.1.4 Pressure Sensor
The negative pressure display setting parameters are programmed to control the maximum
positive pressure thereby protecting the print head from excessive pressure.
There are two pressure sensors in total for every printer: one controlling negative pressure,
while the other one controlling positive.
3.2 Maintenance Station
It is also called print head cleaning system where you do ink purging/ priming then wiping the
excess ink off the print head nozzles.
Maintenance Station
Left UV light
reflector
Right UV light
reflector
Wi
per
bl
a
d
e
Waste Tra
y
Enlarge View
Negative
Pressure Sensor
Positive
Pressure Sensor
Carriage Assembly
Left UV Lamp Right UV Lamp
Heat
dissipation
Fans
AC power
Cable
