Drop Volume/Size 14 pL
Drop Speed 6 ± 0.5 m/s
Printing Width 36.03 mm
Heater Temperature Under 55 ºC
4.3 PCB boards
4.3.1 Print Head Connector Board
This board is used as interface board for Print head and the Print head Control Board thru a
30-pin flexible data cable. It is fixed on the print head by two fixation screws,

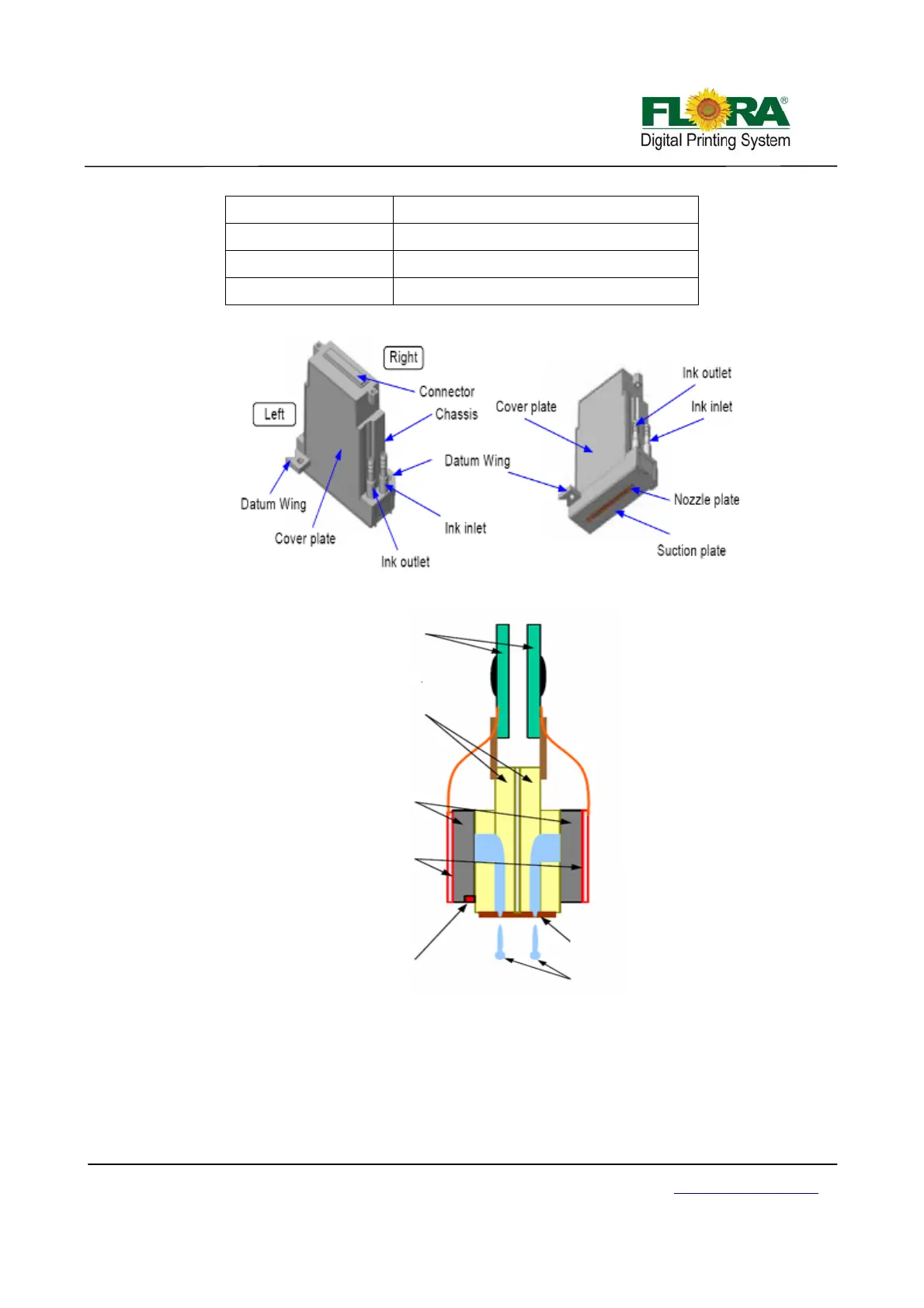

Drive Board
Head Chip
Manifold
Left Side
Right Side
Nozzle Plate
Ink Jet
Thermistor
Heater
Parts of the Konica Minolta
