¾ Figure 2 shows the motor step value when the test was sent is lower than exact
value so we need to decrease, by trial and error method you can get the correct
value.
¾ Figure 3 shows the motor step has exact value so no need for any changes. To
determine the exact motor step value setting, you need to bring the broken and
solid lines closer until you can see one single line only.

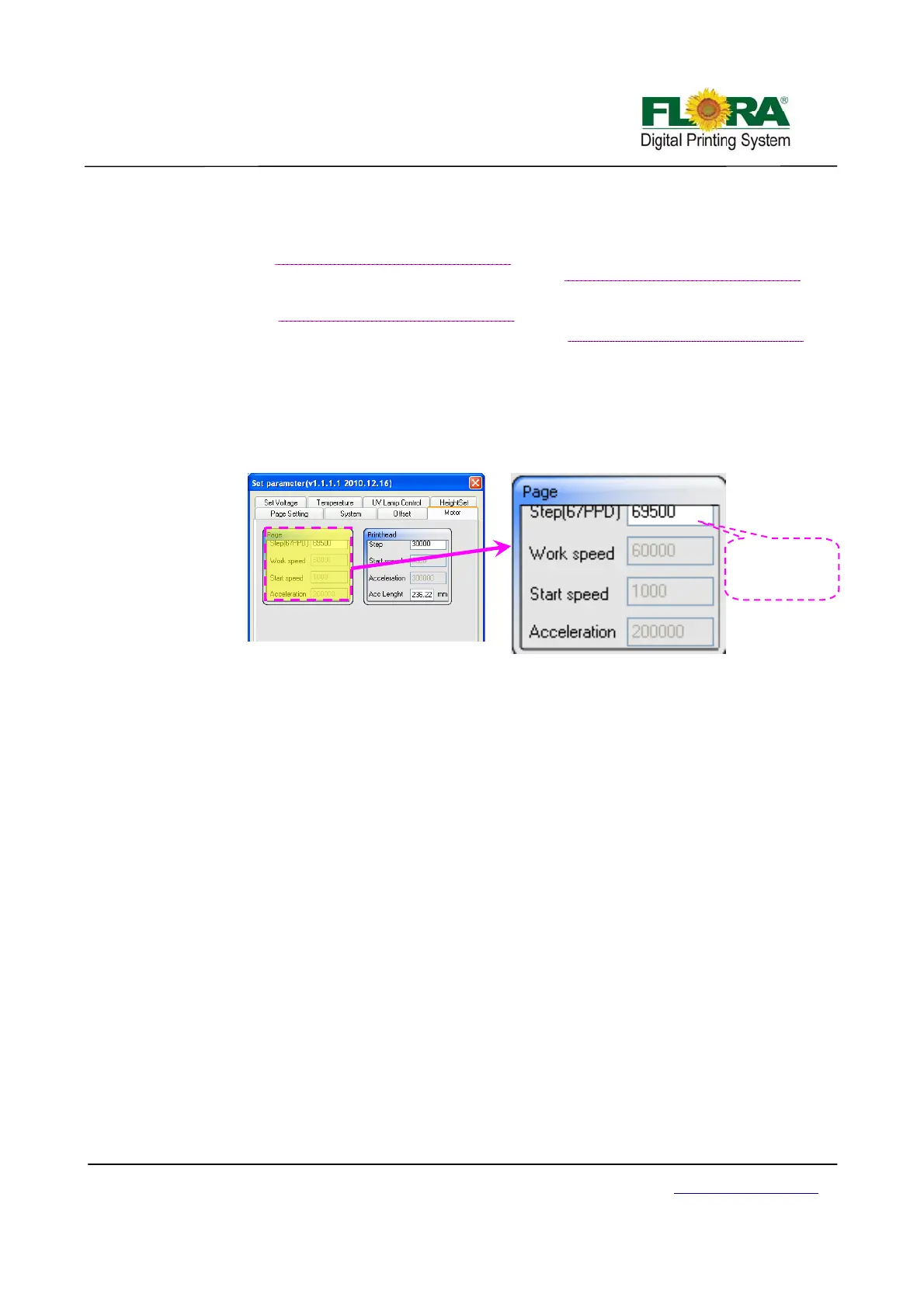

¾ Below is the table where you can find the Step Parameter setting.
Fig. 3 – Correct Media Feeding Step
Enlarged View
Motor Step Parameter Tab
C
han
g
e this
number to
g
et the
exact motor step
value
