43B
Service Manual
8-6
8.4 Main PCA Unit Parts
See Table 8-2 and Figure 8-2 for the Main PCA Unit parts.
Table 8-2. Main PCA Unit
Item Description Ordering Code
1 screw M2.5x5 5322 502 21206
2 combiscrew M3x10 5322 502 21507
3 insulator for power input 5322 325 10163
5 main PCA shielding box 5322 466 10976
6 guide piece for optical gate LEDs 5322 256 10201
7 main PCA shielding plate 5322 466 10964
8 screw M2.5x16 5322 502 14132
9 O-ring 17 mm Input A,B 5322 530 10272
10 O-ring 12 mm COM input 5322 530 10273
Note
If the main PCA must be replaced, you must order the complete Main PCA Unit.
ST8015.WMF

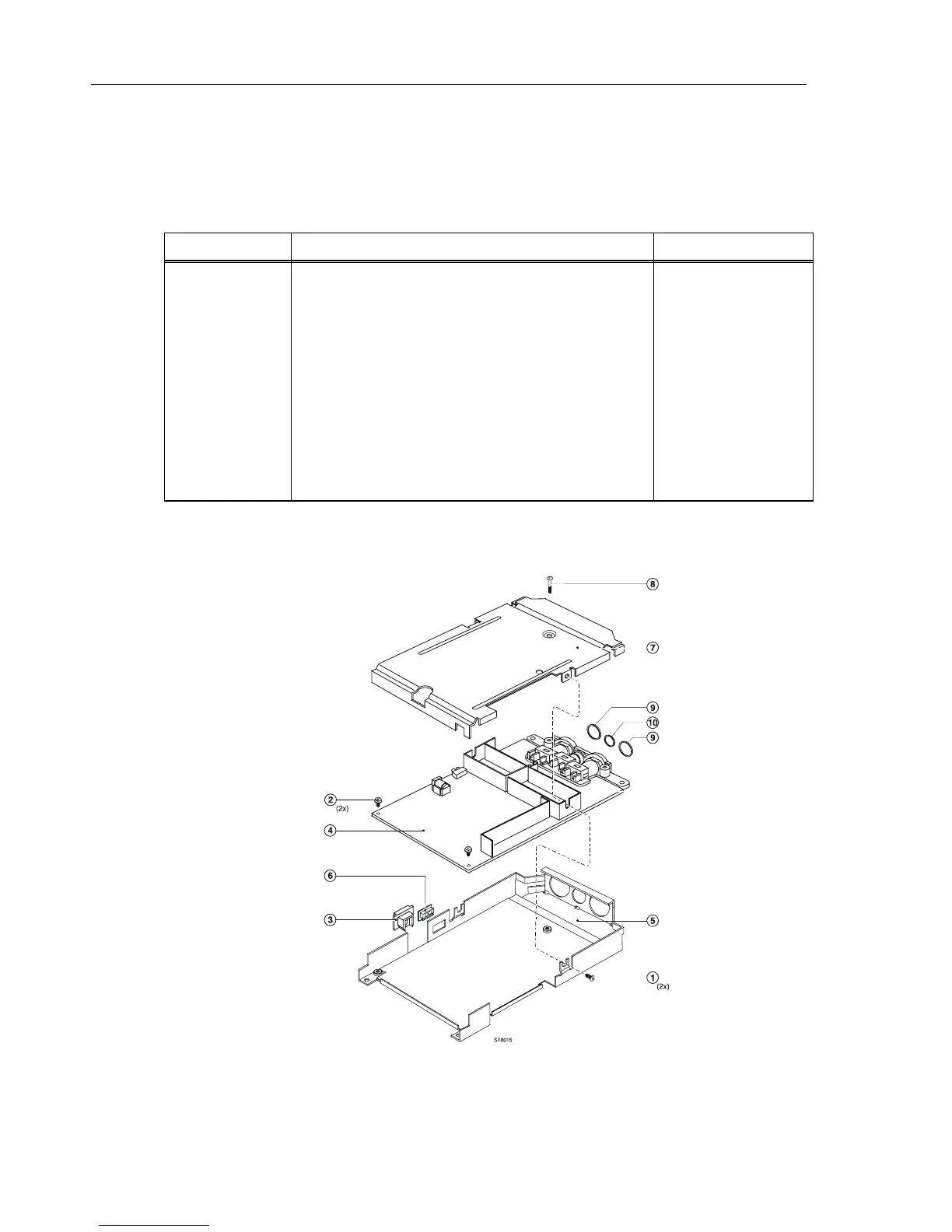

Figure 8-2. Main PCA Unit
