Fluke 43B Service Manual

Performance Verification
4.6 Ohms/Continuity/Capacitance.
4
4-25
11. Observe the Input 1 and 2 main reading (AC) and check to see if it is within the range
shown under the appropriate column.
12. Continue through the test points of table 4-7.
13. When you are finished, set the 5500A to Standby

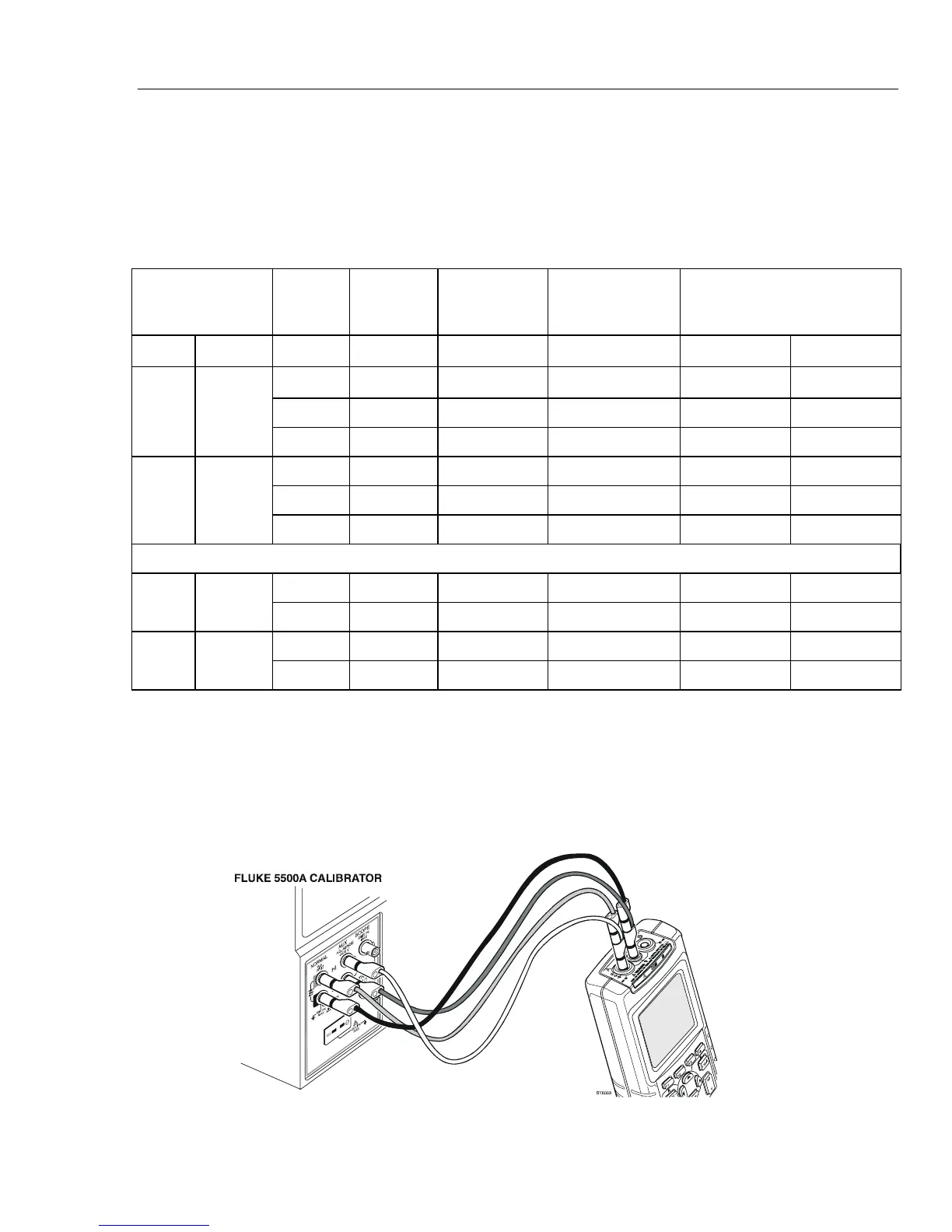

Table 4-7. V DC and V AC High Voltage Verification Tests
Sensitivity Time/
div.
5500A
output
Vrms
5500A
Frequency
Reading (DC) Reading (AC)
Input 1 Input 2 Input 1 & 2 Input 1 Input 2
200V/d 200kA/d 10 ms/d 0V DC -0.5 to +0.5
10 ms/d +500V DC +497.0 to +503.0
10 ms/d -500V DC -497.0 to -503.0
500V/d 500kA/d 10 ms/d +600V DC +0.592 to +0.608
10 ms/d -600V DC -0.592 to -0.608
10 ms/d 0V DC -0.005 to +0.005
Continue at test point 8
500V/d 500kA/d 50 µs/d 600V 10 kHz 0.570 to 0.630
10 ms/d 600V 60Hz 0.584 to 0.616 0.584 to 0.616
200V/d 200kA/d 10 ms/d 500V 60Hz 494.0 to 506.0 494.0 to 506.0
50 µs/d 500V 10 kHz 486.0 to 514.0
4.6 Ohms/Continuity/Capacitance.
4.6.1 Resistance Measurements Test.
Proceed as follows:
1. Connect the test tool to the 5500A as shown in Figure 4-7.
ST8003.WMF
Figure 4-7. Test Tool Input 1 to 5500A Normal Output 4-Wire

Fluke 43B Specifications

General

Category	Power Quality Analyzer
Interface	RS-232
Volts AC/DC	Yes
Ohms	Yes
Continuity	Yes
Diode Test	Yes
Capacitance	Yes
Harmonics Measurement	Up to 51st harmonic
Display	LCD
Battery Life	Approximately 6 hours
Weight	1.1 kg (2.4 lb)
Data Storage	Yes
Amps AC/DC	0.1 to 1000 A (with clamp)
Power Measurement	W, VA, VAR, PF
Dimensions	50 mm
Current Measurement Range	Via current clamp accessories (not built-in)
