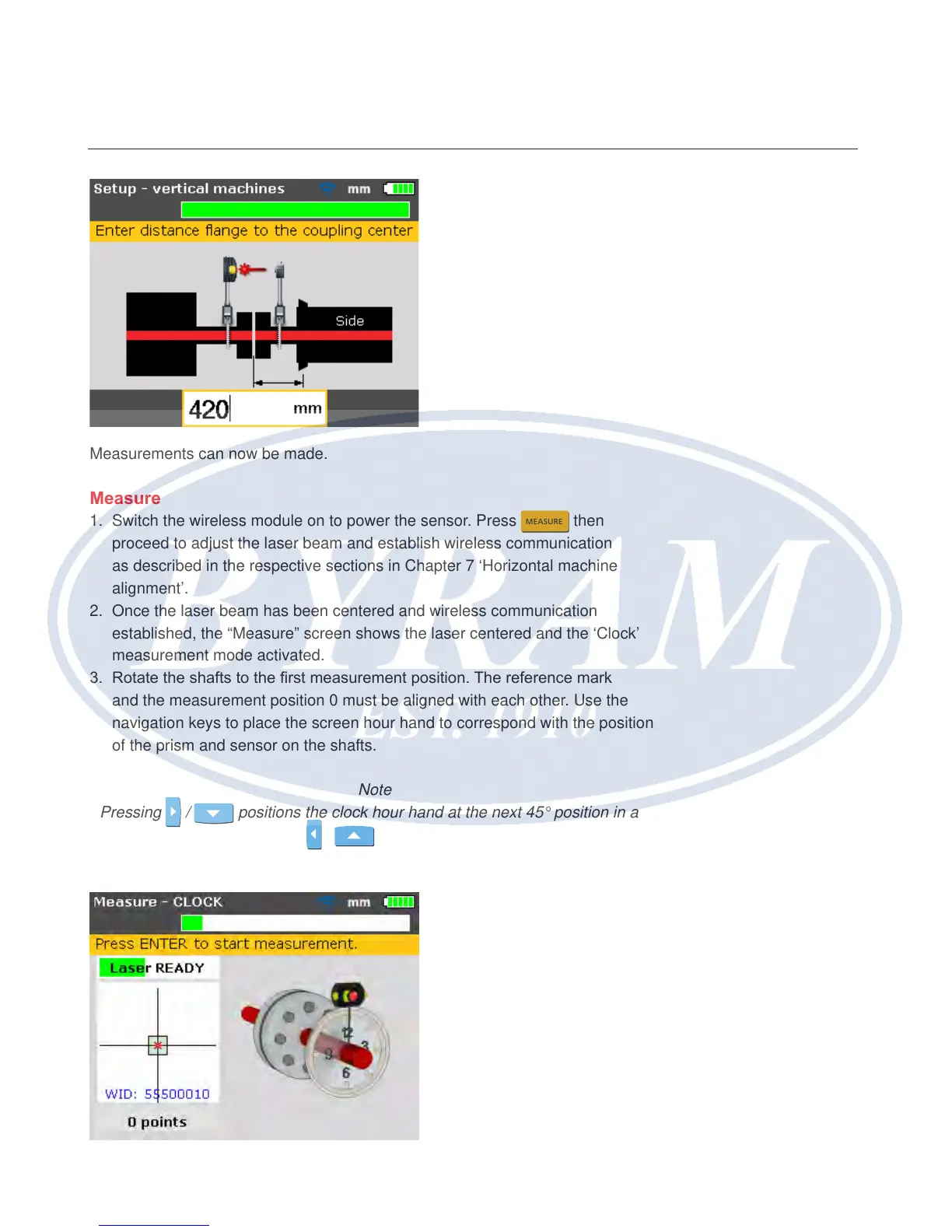

Measurements can now be made.
Measure
1. Switch the wireless module on to power the sensor. Press
MEASURE
then
proceed to adjust the laser beam and establish wireless communication
as described in the respective sections in Chapter 7 ‘Horizontal machine
alignment’.
2. Once the laser beam has been centered and wireless communication
established, the “Measure” screen shows the laser centered and the ‘Clock’
measurement mode activated.
3. Rotate the shafts to the rst measurement position. The reference mark
and the measurement position 0 must be aligned with each other. Use the
navigation keys to place the screen hour hand to correspond with the position
of the prism and sensor on the shafts.
Note
Pressing
/ positions the clock hour hand at the next 45° position in a
clockwise direction. Pressing
/ positions the clock hour hand at the
next 45° position in an anticlockwise direction.
Vertical flanged machines
