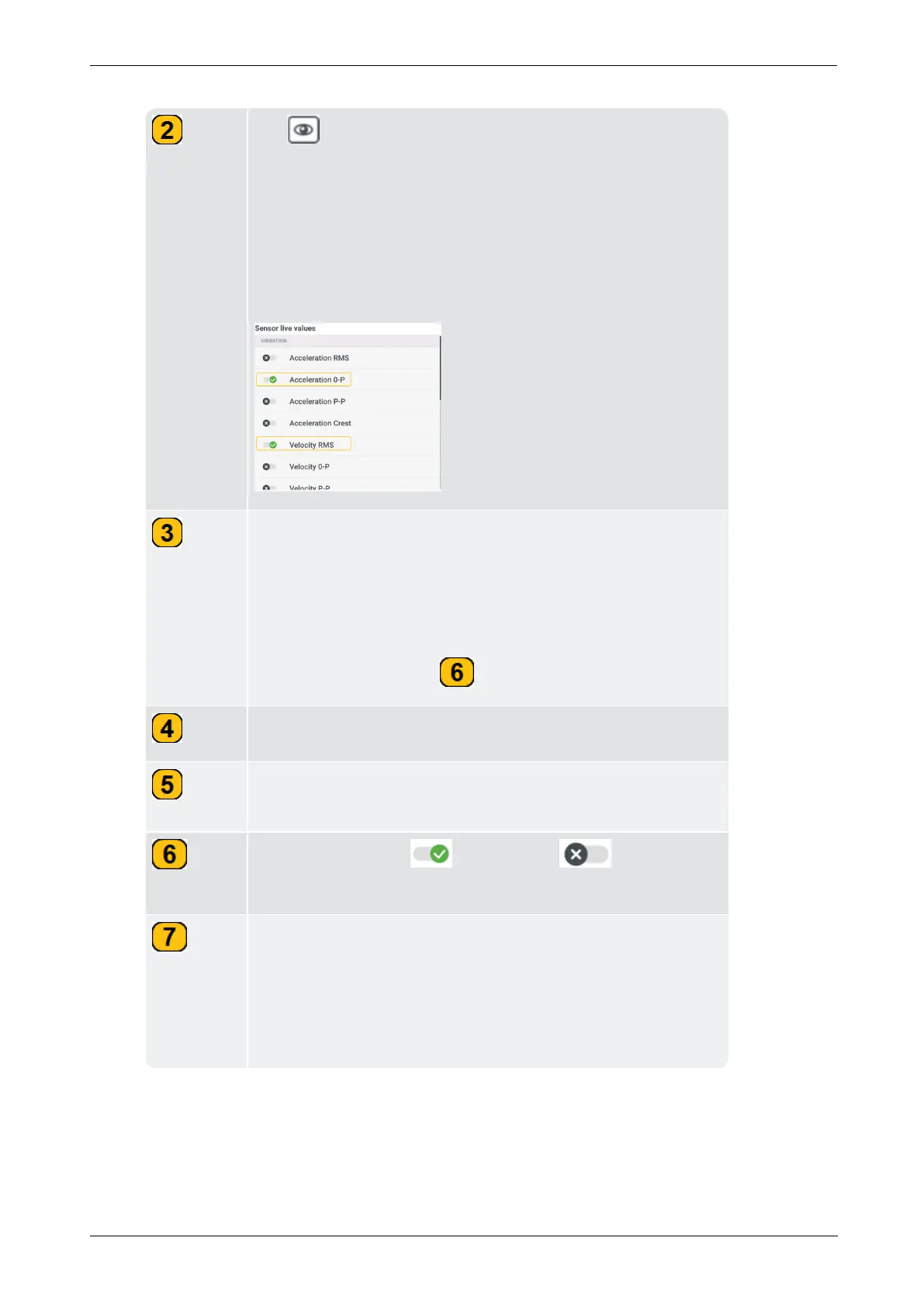

Tap to show the vibration and displacement parameters
that can be selected to be shown live on the display. The
parameters shown initially come from the settings item
Sensor Live Values. The parameters can be changed here,
but for only the selected machine train. A maximum of two
parameters for vibration and/or displacement can be shown
on the screen.
Shows currently selected measure location, device measure
channel and type of sensor to be used to measure the selec-
ted location. The measure channel and sensor are selected
in the device settings menu item channels & sensors .
Live sensor values for the location are shown if the auto-
matic sensor detection ( ) is on.
Other measure locations on the machine
Shows a relative speed point merged with a measure loc-
ation.
Live sensor data — ( indicates on; indicates
off); when on, live values are shown
Machine train reference speed. This value is entered in con-
figuration and the relative speed can be confirmed for the
selected measure location with the stroboscope or speed
finder. The absolute speed can be measured by the
keyphasor.
