Ford F-MAX - Returning the Cab to Driving Position

MAINTENANCE AND SERVICE
5
- 174 -
To use the jack, remove the specifi ed
cover.
1- On vehicles with manually controlled
cab tilt cylinder:

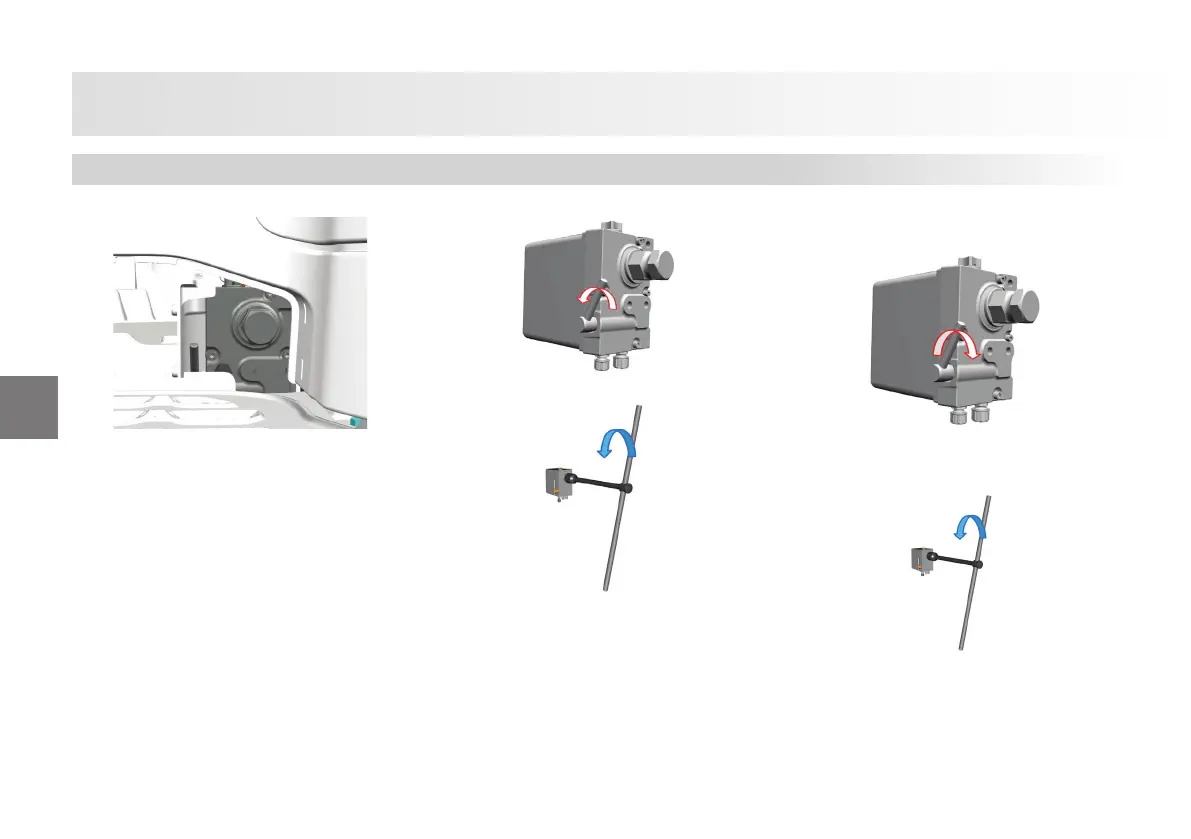

Tilting the cab:
a) Open the hood of your vehicle.
b) Li the latch on the cab tilt cylinder up.
c) Rotate the hexagonal bolt on the cab
tilt cylinder in the direction of arrow until
the cab is tilted completely with the wheel
nut spanner delivered in the toolbox of
your vehicle.
Returning the cab to driving position:
b) Lower the latch on the cab tilt cylinder
down
c) Rotate the hexagonal bolt on the cab
tilt cylinder with the wheel nut spanner
delivered in the toolbox of your vehicle.
Driver Cab
