- 27 -
CONTROLS AND INDICATORS
3

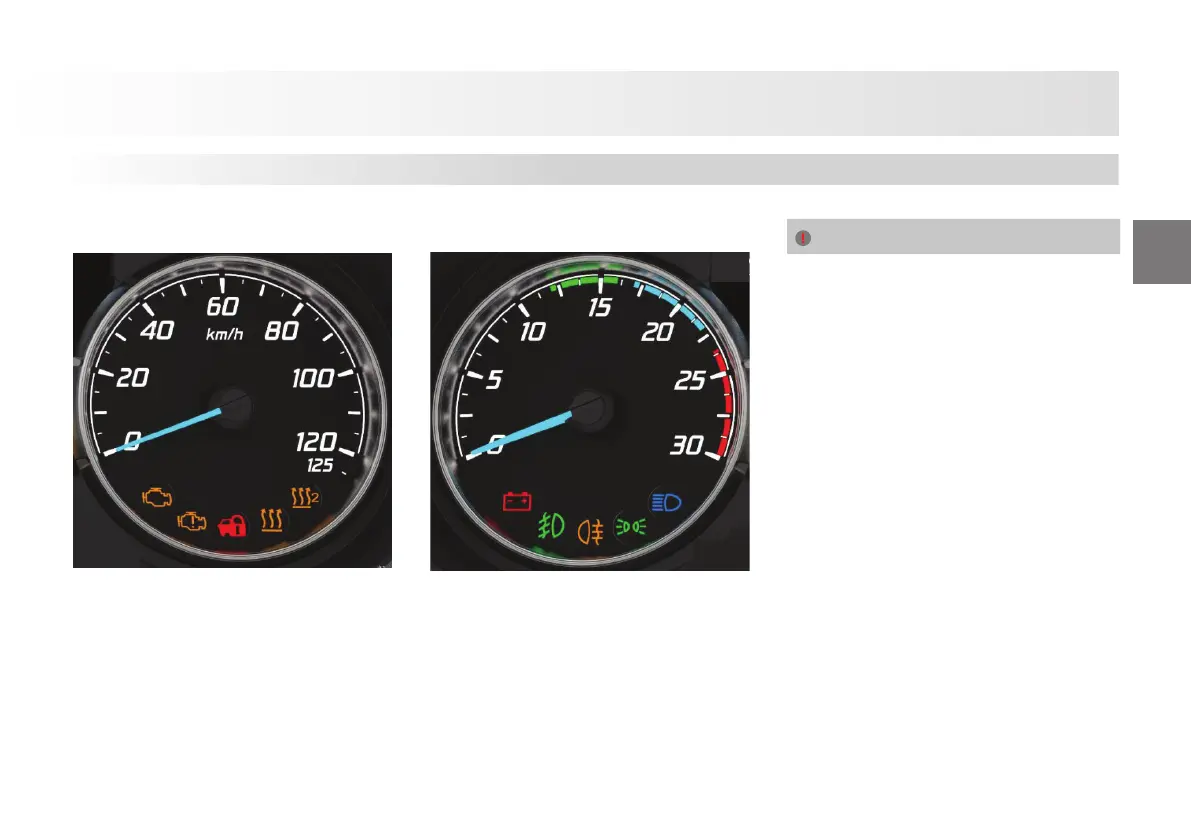

Odometer
Indicates the road speed (kilometer/hour).
CAUTION
Indicates the engine rpm. Operate your
vehicle so that the indicator dial remains in
the green zone as much as possible.
Drive your vehicle considering the engine
speed. Keeping engine speed in the green
zone provides economy. Avoid excessive
speeds in the red danger zone. Otherwise,
your engine may get damaged.
Ensure that the speed does not increase up
to red danger zone, especially while driving
down the hill.
Green zone: Economy zone
Blue zone: Zone where the engine brake is
active
Red zone: Danger zone
Buzzer sounds when you exceed the
maximum allowed engine speed. Lower
the engine speed when you hear that
warning. Engine brake is deactivated over
2400 rpm.
Instrument Panel
Tachometer
