c) If the warning light
is illuminated
when you get into your vehicle, then the
cab is not correctly locked. Please check.
CAUTION
Fully open and close the latch on the
cab tilt cylinder while you are tilting and
bringing the cab back to driving position,
respectively. Do not tilt the cab or bring it
back to driving position while the latch is
in half-open or half-closed position.
Otherwise, you may cause faults in the
cab tilt cylinder.

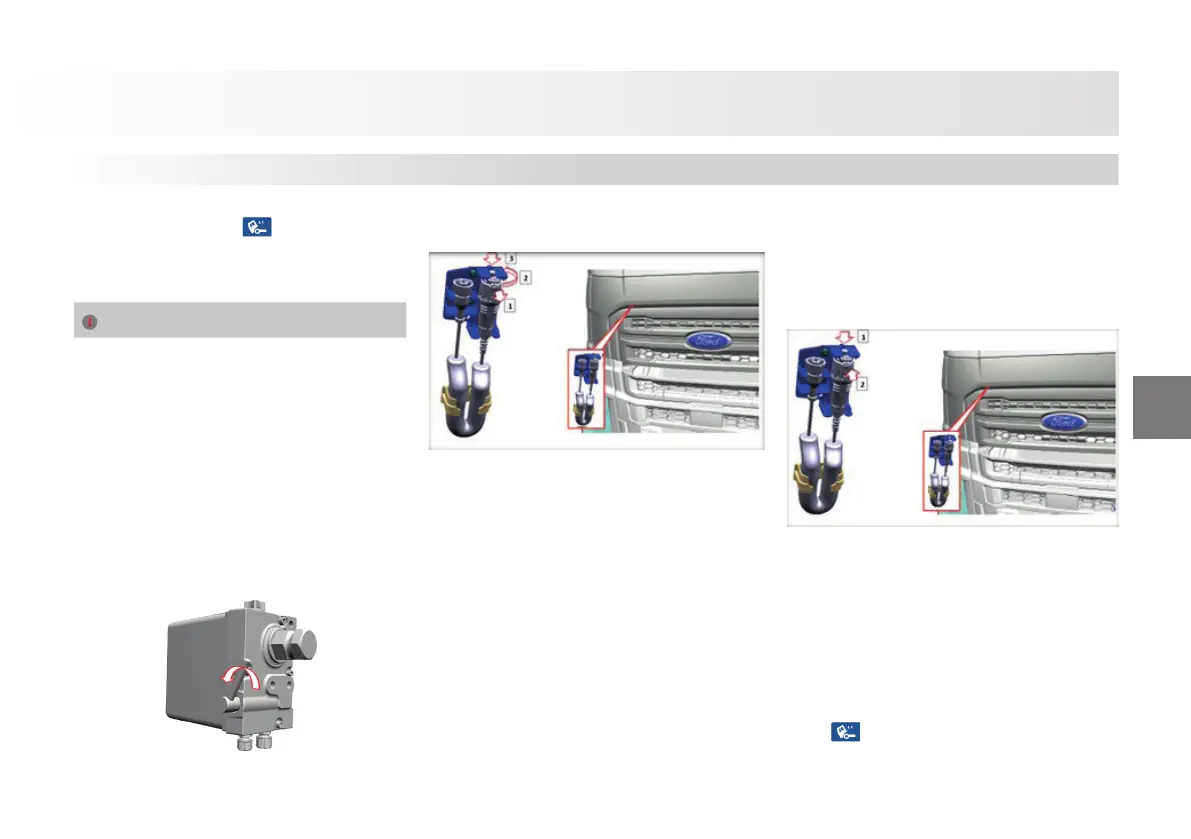

On vehicles with power cab tilt
cylinder (optional)
Tilting the cab:
Open the bonnet of your vehicle.
1) Li the latch on the cab tilt cylinder up.
Control Operating Manual (While raising
the cab):
1-Pull the control out of its housing.
2-Open the upper cover automatically by
pressing the rocker button on the front
face of the control.
3-Tilt the cab by pressing the upper button
of the control.
Caution: Stand away from the vehicle
while lowering and raising the cab
To operate the power cab li ing system,
ignition switch shall be at position 1, park
brake shall be applied and gear shall be
shi ed to neutral.
Returning the cab to driving position:
1) Lower the latch on the cab tilt cylinder
down.
Control Operating Manual (While
lowering):
1-Lower the cab by pressing the button
2-Upper cover closes automatically while
placing the control to its housing.
Caution: The control has a single placing
position, if you cannot place it easily,
then you are trying to place it in the wrong
direction.
If the
warning is illuminated on the
display when you get in the vehicle, this
means that cab is not locked correctly.
Please check.
