Ford F-MAX - High Beam; Headlamp Dipped Beam; Fog Lamp

MAINTENANCE AND SERVICE
5
- 205 -

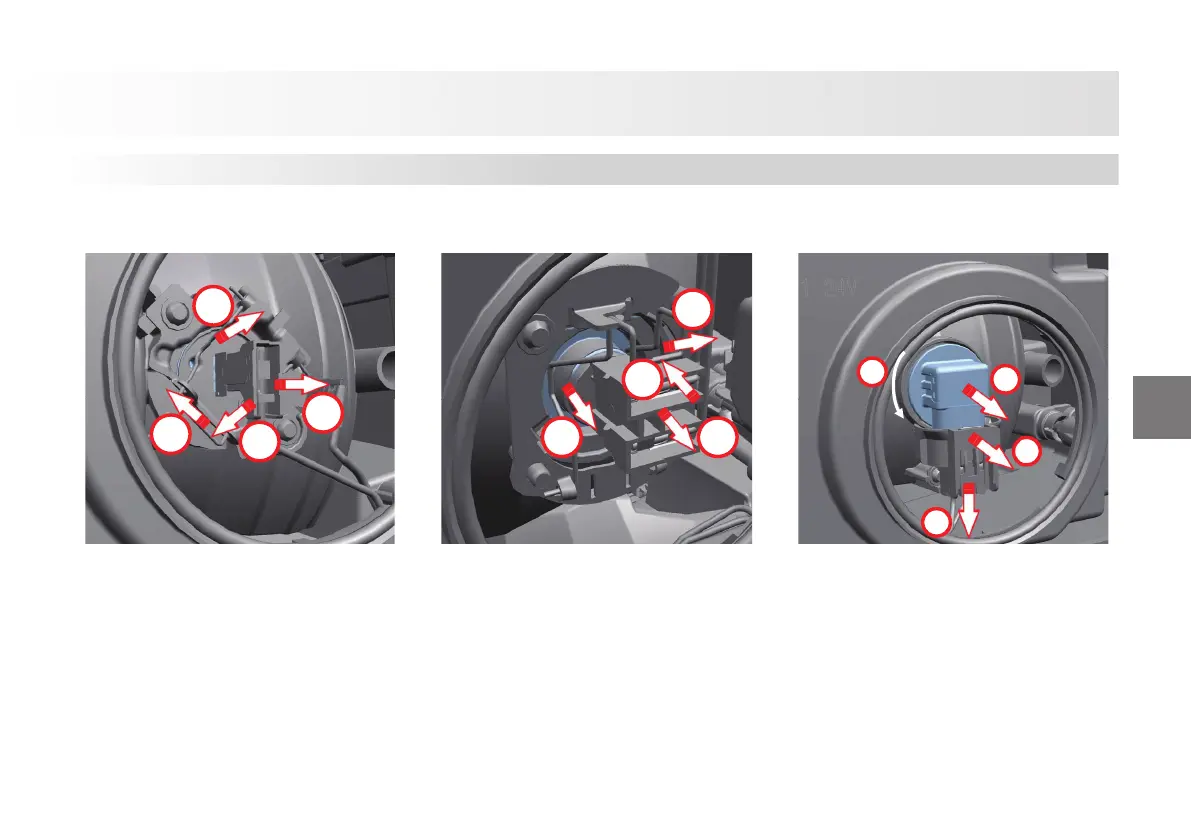

High beam
1
2
3
4
Remove the connector behind the bulb
by pulling it out fi rst to replace the main
beam bulb. Then, press on the retaining
spring wire and release and open it from
tabs by sliding to the upper le side and
remove the bulb. Insert the spring to the
tabs and install the bulb connector a er
placing the new bulb.
Headlamp dipped beam
1
2
3
4
Remove the connector behind the bulb
by pulling it out fi rst to replace the dipped
beam bulb. Then, press on the retaining
spring wire and release and open it from
the by sliding to the right-hand side and
remove the bulb. Insert the spring to the
tab and install the bulb connector a er
placing the new bulb.
Fog lamp
1
2
3
4
Remove the bulb by rotating it counter-
clockwise and unlocking it to replace the
fog lamp bulb. Then, release the bulb by
pulling the connector tab out. Place the
new bulb to its seat a er installing it to the
connector and lock by rotating clockwise.
Changing Bulbs
