Inspection and Cleaning of the
Flyscreen

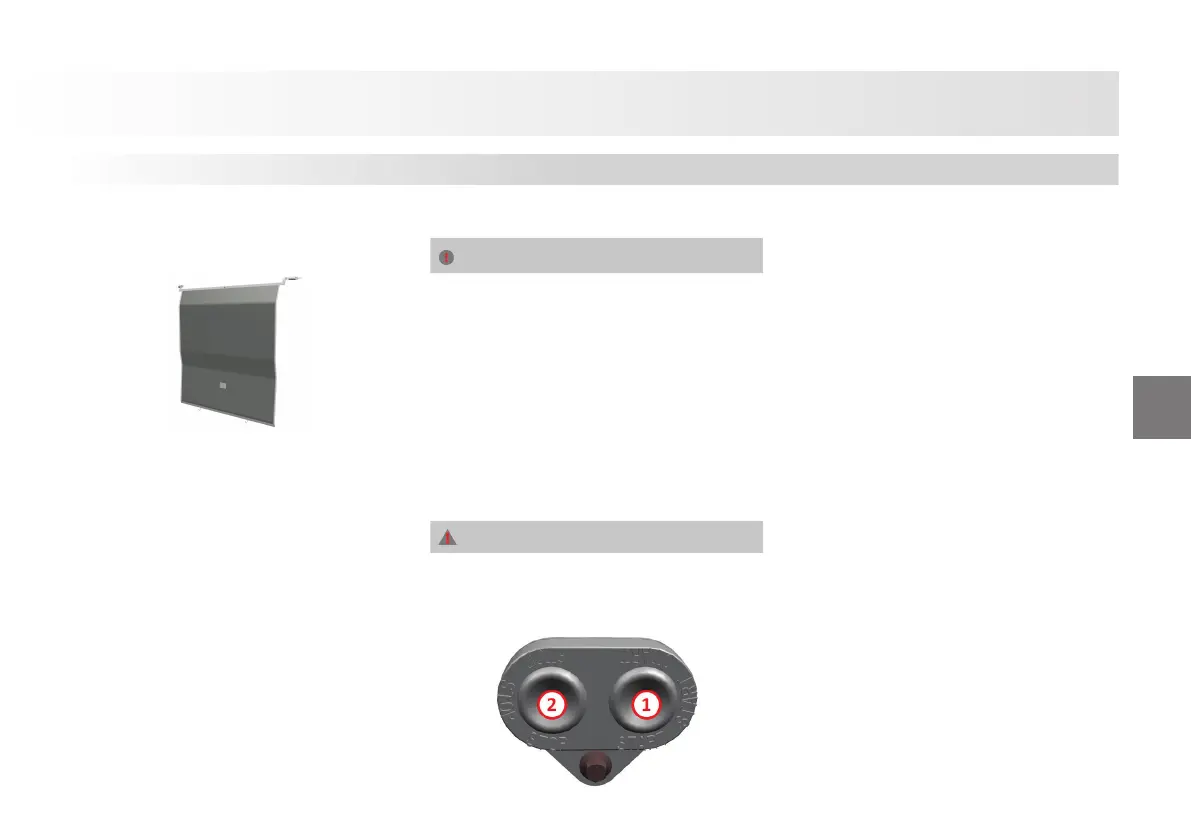

Flyscreen, placed in front of the radiator, is
a component that resembles a curtain and
it can be cleaned.
Its purpose is to prevent objects such as
fl ies, dust, bugs etc. from entering directly
to the radiator. Inspect the fl yscreen as
per the working conditions and clean
it if it is dirty. Cleaning is performed by
removing the fl yscreen from the radiator
and applying pressurized water or air to
the fl yscreen.
Removal of the fl yscreen:
Pull the spring connections of fl yscreen
lower bar downwards and take it out of it
seats that it is connected to.
Then, by removing the butterfl y bolts
used in the upper and side joints, all the
connections of the fl yscreen are removed.
The fl yscreen is pulled up from the radiator
cavity and removed from the vehicle.
CAUTION
Dirty fl yscreen prevents air fl ow to
the intercooler, thus to the radiator,
and reduces the cooling capacity of
the engine. Therefore, the cleaning
procedure described above is important.
Engine Start Stop buttons
Conditions for Starting the Engine
• The ignition shall be at position ’2’.
• The cab shall be overturned
• Doors must be closed
• Parking brake must be applied
• Vehicle speed must be "0".
WARNING
Note:In an event where one of these
conditions are not met, the engine will
not be engaged with Start Button.
1-Start
2-Stop
You can do the following with Two
Buttons:
• Engine Starting
• Engine speed increase
• Engine speed reducement
• Motor shutdown
The System Operation Principle is spec-
ifi ed below:
The Function consists of 4 basic condi-
tions;
1-When the ignition is in position 2, by
pressing the Start button, the engine is
engaged.
2-When the engine is engaged, the fi rst
long pressing the Start button will increase
the engine torque.
When the button is released, the engine
torque is stabilized at the level.
3-A er increasing the engine torque, with
the fi rst long press the engine torque will
be creased with the same amount and
when the button is released, the torque
will be stabilized at the level.
4-Stop button is only used to halt the
engine that is engaged.
In any event, when Stop button is pressed
the engine halts.
