Brief instructions Driver
DTCO® 1381 - Release 3.0
A2C13870700/41024284 OPM 000 AA
BA00.1381.30 500 102
www.fl eet.vdo.com

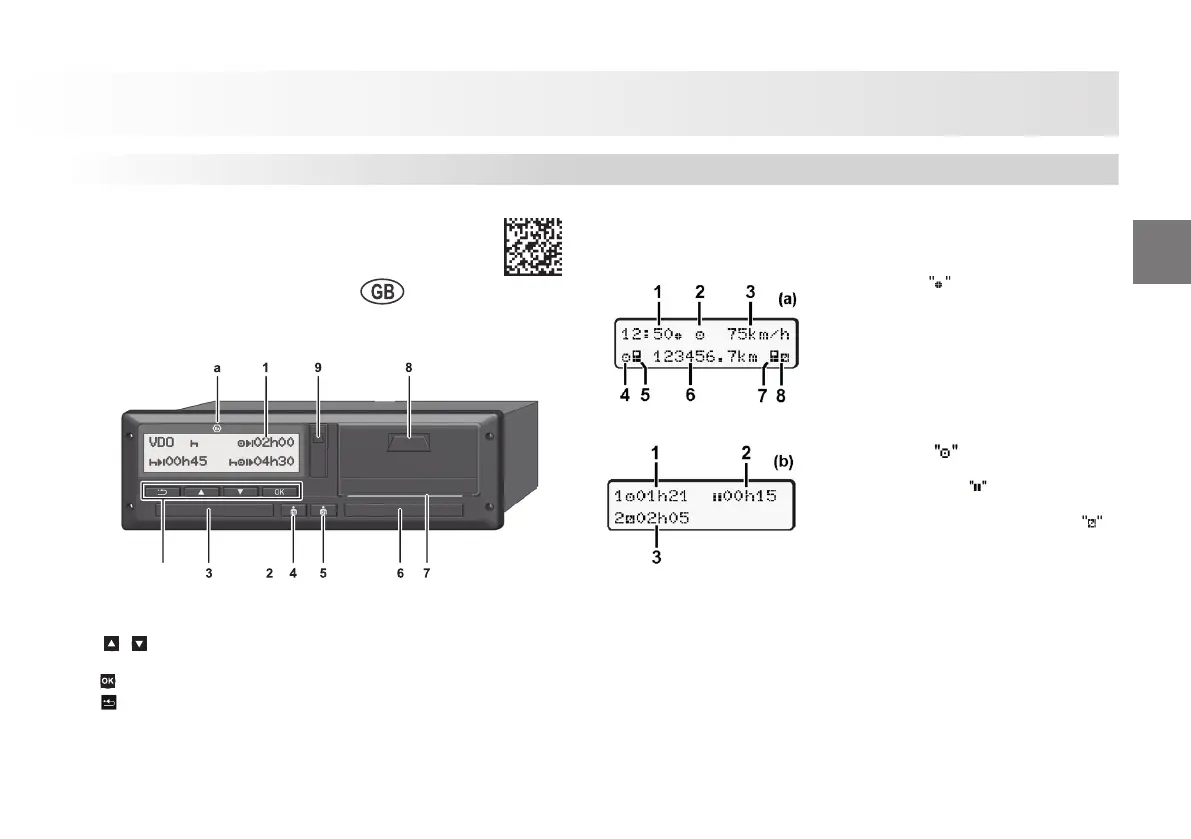

Operational elements
(1) Display
(2)Menu buttons
/ Select function /
selection
Confi rm function / selection
Exit, abort menu
(3) Card slot 1
(4) Combination key Driver 1
Setting of activities and ejection
of the driver card
(5) Combination key Driver 2
Setting of activities and ejection
of the driver card
(6) Card slot 2
(7) Cutting edge
(8) Printer drawer
(9) Download interface
(a) Symbol for ADR variant
Standard display(s) during trip
► Press any menu key, change to the desired display.
(1) Time (with i= set local time)
(2) "Operational mode"
(3) Speed
(4) Activity, driver 1
(5) Card symbol, driver 1
(6) Toplam kilometre
(7) Card symbol, driver 2
(8) Activity, driver 2
(1) Driving time Driver 1 since a valid
break time.
(2) Valid break time
, in accordance
with regulation (EU) no. 561/2006.
(3)Time of driver 2; availability time
.
The option "VDO Counter" allows another standard display; for
details refer to the operating instructions.
Tachograph
