Ford F-MAX - Bed Control Buttons; Lower Left Control Panel Control Buttons; Upper Panel Control Buttons

- 41 -
CONTROLS AND INDICATORS
3

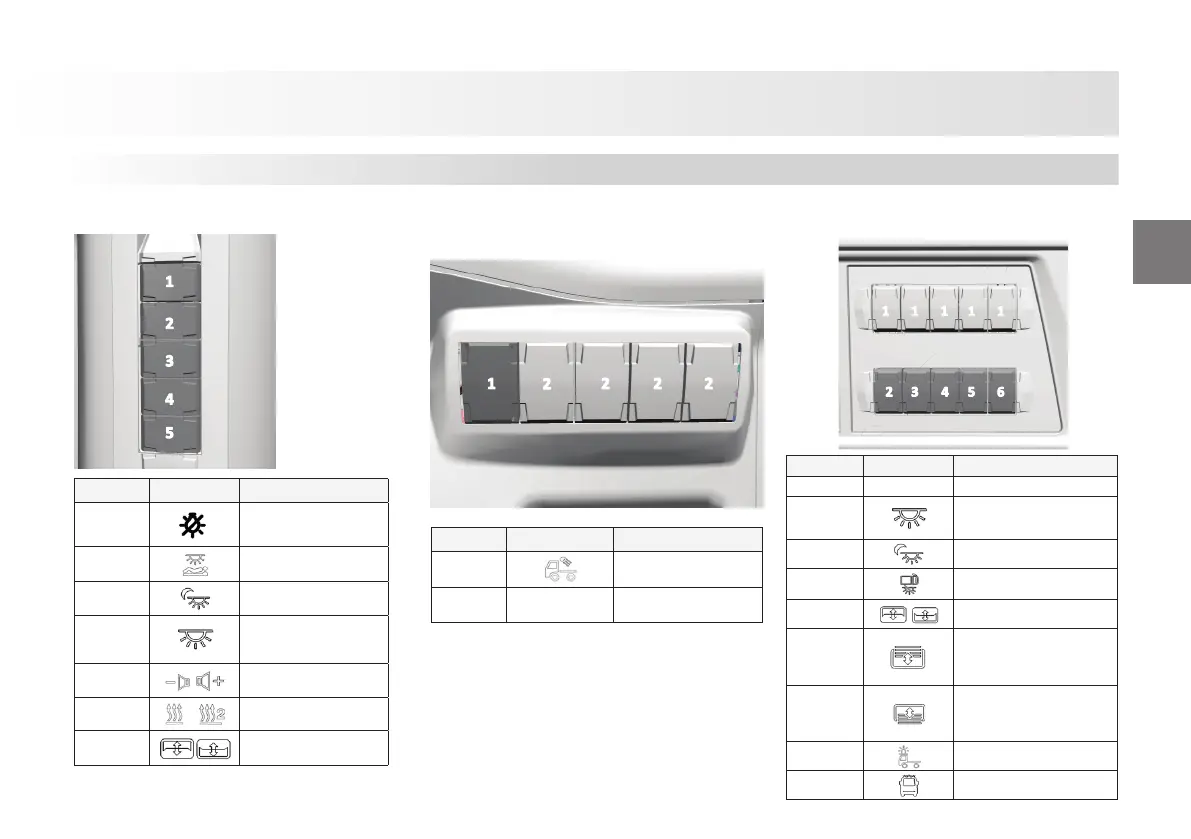

Control Buttons
Bed control buttons Lower le control panel control
buttons
FIGURE SYMBOL DESCRIPTON
1
LIGHTING WORKING
LAMP
2 EMPTY
Upper panel control buttons
FIGURE SYMBOL DESCRIPTON
1
ALL LAMPS OFF
*1
BED COMPARTMENT
LAMPS ON/OFF
2
AMBIENCE LAMP ON/
OFF
*2
FRONT LAMP AND
CENTRAL LAMPS ON/
OFF
3
RADIO VOLUME
UP/DOWN
4
AUXILIARY HEATER
ON/OFF
5
ROOF ON/OFF
FIGURE SYMBOL DESCRIPTON
1 EMPTY
*2
FRONT LAMP AND
CENTRAL
LAMPS ON/OFF
2
AMBIENCE LAMP
ON/OFF
3
DOOR OPEN WARNING
4
ROOF ON/OFF
5
MOVING FRONT
SUNSHADE
(AUTOMATIC)
UPWARDS
5
MOVING FRONT
SUNSHADE
(AUTOMATIC)
DOWNWARDS
6
SIREN BUTTON
6
DOME LAMPS
When the keys specifi ed with an asterisk (*) are pressed more than 1 or 2 seconds,
it is possible to achieve an illumination starting at a low level and increasing to higher levels.
