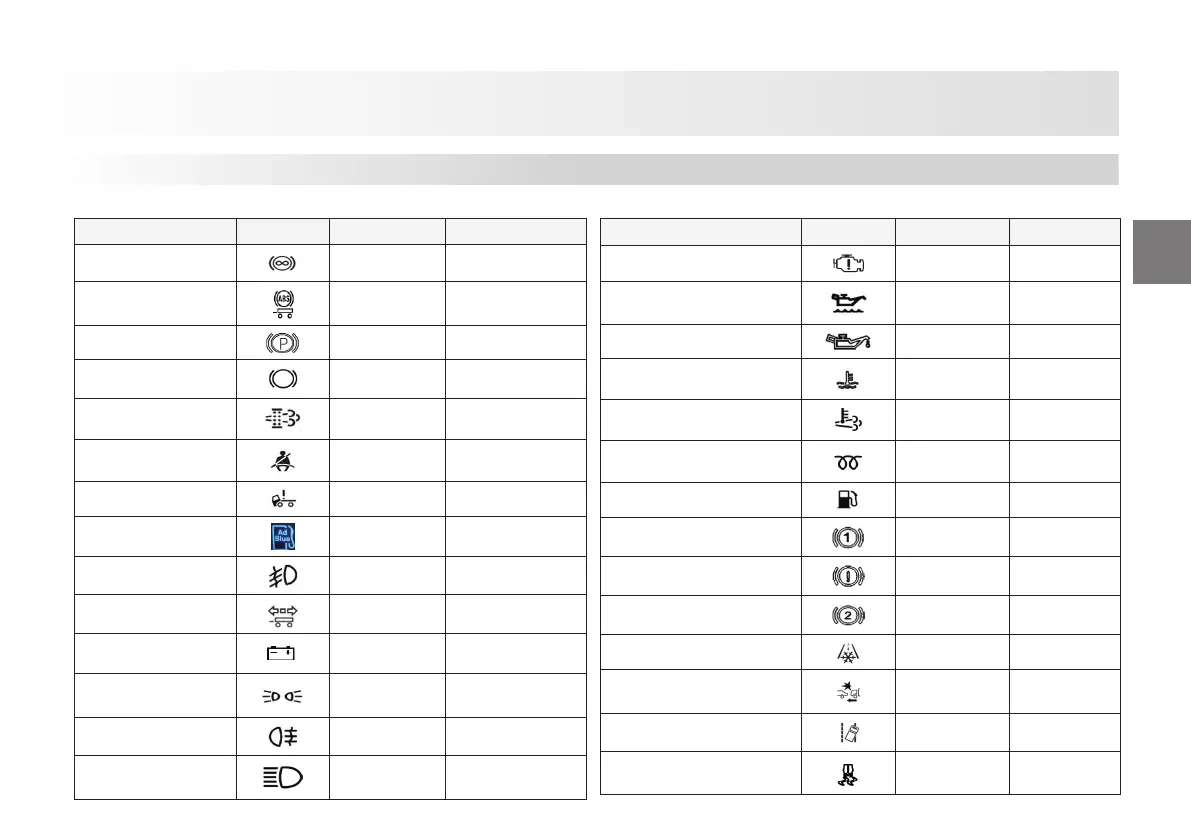

CONTROLS AND INDICATORS
3
Instrument Panel
FUNCTION SYMBOL COLOR BUZZER
Intarder
Green n/a
Trailer ABS/EBS
Yellow n/a
Park Brake Sign
Red n/a
Engine brake
Yellow n/a
Cleaning of Exhaust
Filter
Green n/a
Seat belt warning
Red
yes
Cab raised warning
Red
yes
Low urea level
Yellow yes
Front Fog Light
Green n/a
Trailer right/le turn
signal warning
Green n/a
Alternator /
Charging system
Red yes
Park lamp indicator
warning
Green n/a
Rear Fog Lamp Yellow n/a
Main Beam
Blue n/a
FUNCTION SYMBOL COLOR BUZZER
Engine fault lamp
Yellow n/a
Oil level warning
Yellow/Red yes
Oil Pressure Warning
Green yes
Hight Engine Water
Temperature
Red yes
High Exhaust
Temperature
Yellow yes
Cold Starting Aid
Yellow n/a
Fuel Level warning
Yellow yes
High Air Pressure 1
Red n/a
Low brake air pressure
Yellow/Red yes
High Air Pressure 2
Red n/a
Icing warning
Yellow n/a
Emergency braking
system
Yellow yes
Lane departure warning
system warning
Yellow n/a
ESP
Yellow n/a
