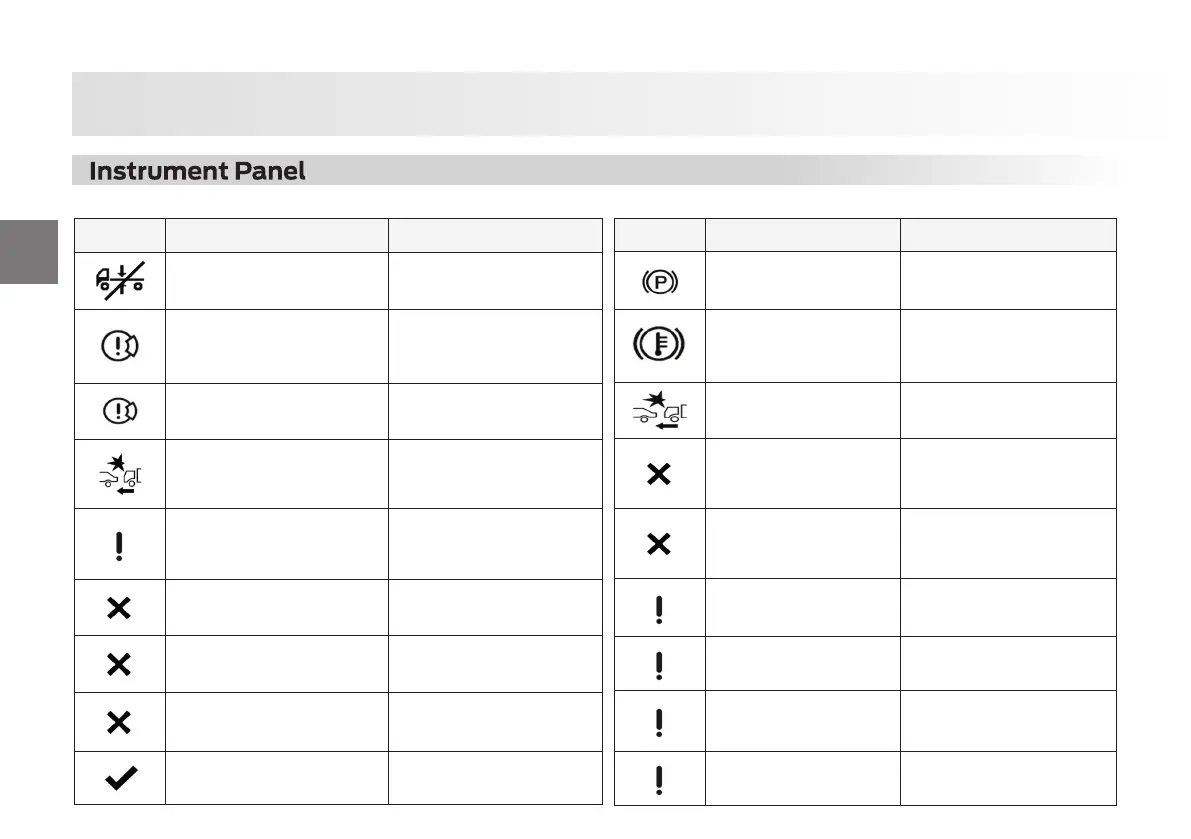

CONTROLS AND INDICATORS
3
SYMBOL WARNING WARNING DESCIRPTION
Vehicle is not at
optimum ride height
Vehicle is not at
optimum ride height
Critical brake pad
health.Performance is
reduced. Service required.
Critical brake pad
health.Performance is
reduced. Service required.
Low brake pad health.
Service required.
Low brake pad health.
Service required.
Adaptive Cruise Control Adaptive Cruise Control
Wheel sensor battery low. Wheel sensor battery low.
Sensor Learn is incomplete.
Vehicle speed must be zero
Sensor Learn is
incomplete. Vehicle
speed must be zero
Sensor Learn
incomplete. RPM is not
zero .
Sensor Learn
incomplete. RPM is not
zero
Sensor Learn incomplete.
Parking brake is not applied
Sensor Learn
incomplete. Parking
brake is not applied
Sensor Learn is complete. Sensor Learn is
complete.
SYMBOL WARNING WARNING DESCIRPTION
Do not leave the
vehicle without
applying parking brake.
Apply the Parking Brake
The brakes become
warmer, slow down
and use the auxiliary
brakes
The brakes become
warmer, slow down
and use the auxiliary
brakes
Advanced
Emergency Braking
Advanced Emergency
Braking
Sensor Learn is
incomplete.
Session expired.
Please try again.
Sensor Learn is
incomplete. Session
expired. Please try again.
Sensor Learn
incomplete. Sensor
ID conflict.
Sensor Learn
incomplete. Sensor ID
conflict.
Sensor Learn is in
progress
Sensor Learn is in
progress
New so ware update(s)
available.
New so ware update(s)
available.
End-of-Line
parameters are not
restored. Service
required.
End-of-Line
parameters are not
restored. Service
required.
Software is up-to-date.
Software is up-to-date.
