23
button allows you to access the Fusion Remote menu configuration and
step back one level in the menu system.
4-4 Understanding the Fusion Remote Display
The Fusion remote control screen can be viewed in three main
segments: top status line, primary display area, and bottom status line.
The top and bottom status lines are static. The primary display area is
dynamic and will change depending upon the operation that you are
performing.

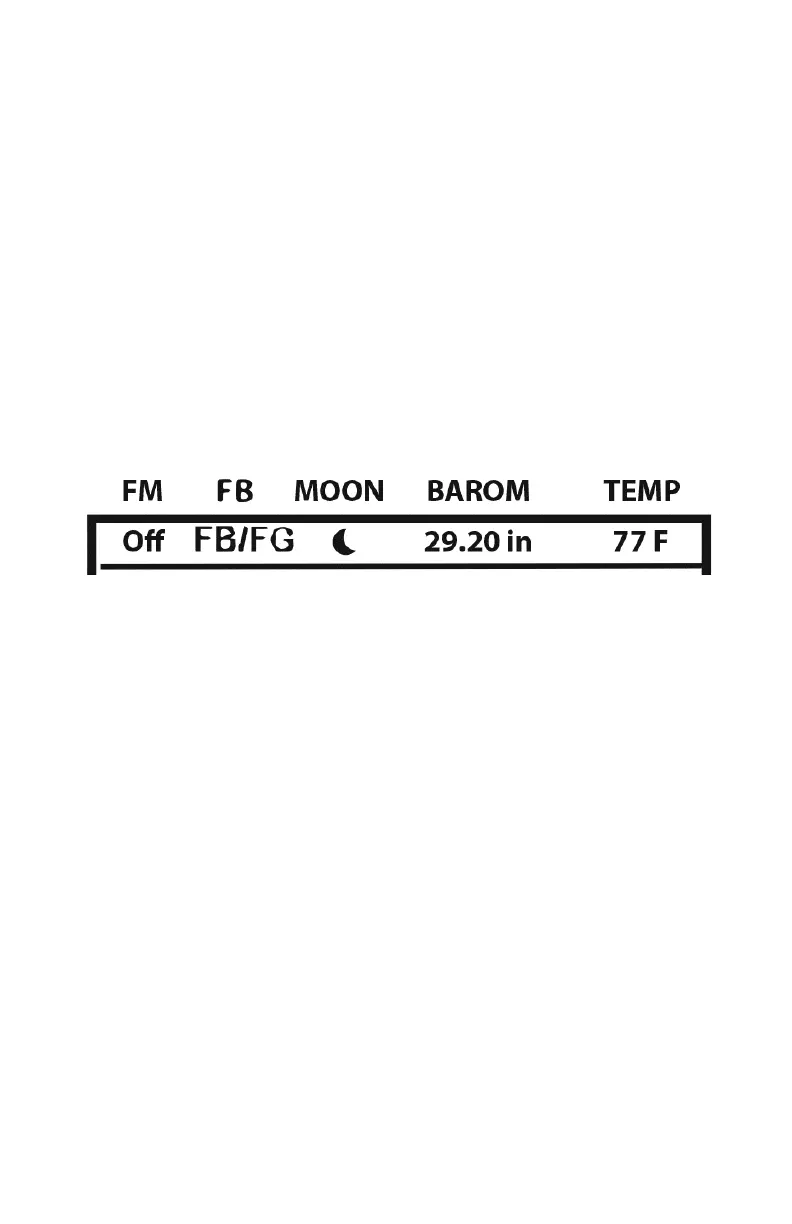

The following image shows the top status line of the Fusion
remote. A description of each element follows the image:
• FM: FOXMOTION status indicator. Displays either On or Off.
• FB: FOXBANG status indicator / FOXGRIP status indicator.
Displays “FB” if FOXBANG is activated. Displays “FG” if
FOXGRIP is activated. Displays “FB/FG” if both FOXBANG and
FOXGRIP are activated.
• MOON: Moon phase indicator. Displays an icon depicting
the current moon phase. Correct moon phase display
requires proper date and time configuration.
• BAROM: Barometer. Displays the barometric pressure in
either inches or millimeters depending upon configuration.
When enough measurements have been taken, an arrow
showing trend (up/down) will appear. When elevation is set
correctly, this value is automatically adjusted.
• TEMP: Thermometer. Displays the current temperature in
either C or F depending upon configuration.
