FRAMOS Depth Camera D400e Module Variant
FRAMOS Depth Camera D400e module variant is a module version of the D400e series camera,
providing the same functionality and connectivity without housing. The module variant aims for the
easy design-in and integration into compact form factor products.
The module variants have the same technical specifications as housed camera variants.
5.1 D400e Module Components
FRAMOS D400e Module consist of:
1. Intel RealSense Depth Module:
 D415e: Intel D410 Depth Module
 D435e: Intel D430 Depth Module
 D455e: Intel D450 Depth Module
2. Depth Module Cable Bracket
3. Depth Module Interposer
4. RGB Module Interposer (D415e/D435e only)
5. RGB Module (D415e/D435e only)
6. RGB Module Cover (D415e/D435e only)
7. FRAMOS D4 Visual Processing Board

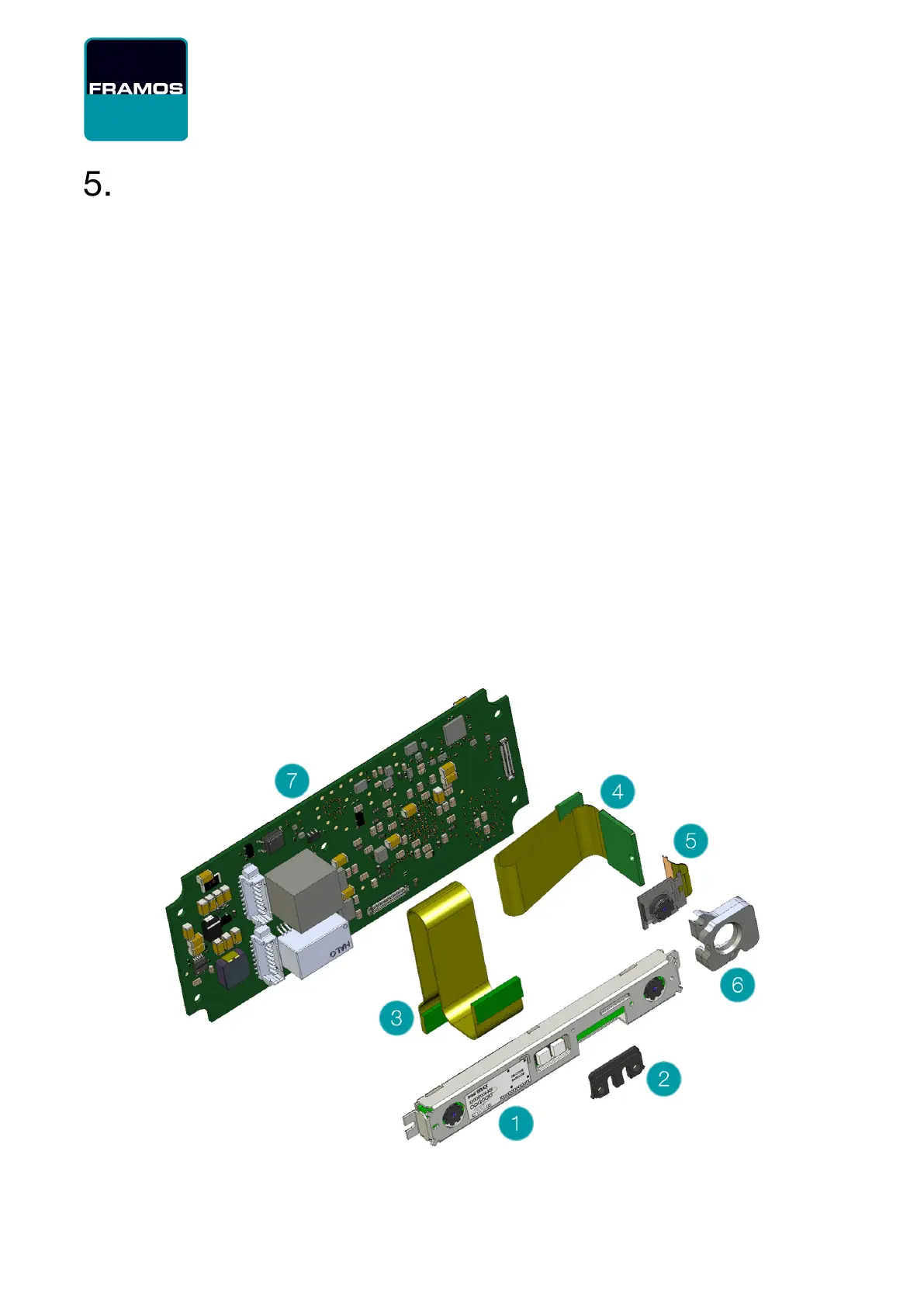

Figure 7 – FRAMOS D400e Module Components Overview
