FRAMOS Industrial Depth Camera D400e Series - User Manual

Version 1.6.0

from 2021-10-15 50 of 64

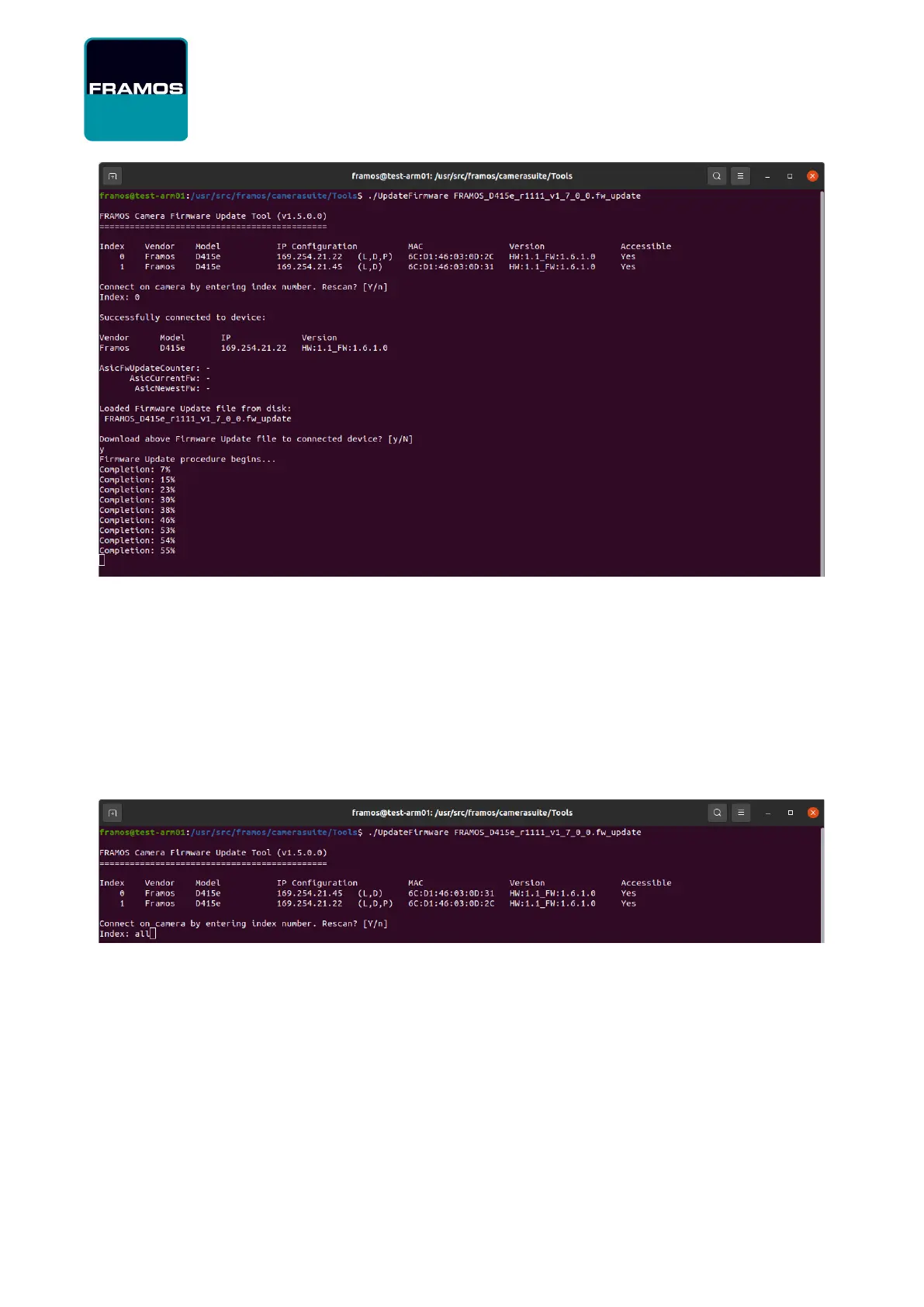

Figure 27 – Tool UpdateFirmware Part 2

9.1.1 Parallel Firmware Update

The UpdateFirmware tool can upgrade multiple cameras at the same time.

Usage example on Linux:

./UpdateFirmware FRAMOS_D415e_r1111_v1_7_0_0.fw_update

Enter keyword “all” to select all available cameras:

Figure 28 – Tool UpdateFirmware Parallel Part 1

Firmware update procedure will start on all cameras that are compatible with the selected firmware

update file. If there are cameras in the list that are not compatible with firmware update file, the

UpdateFirmware

tool will simply ignore these cameras and will inform user about incompatibility at

the end of the firmware update procedure.
