FRAMOS Industrial Depth Camera D400e Series - User Manual

Version 1.6.0

from 2021-10-15 26 of 64

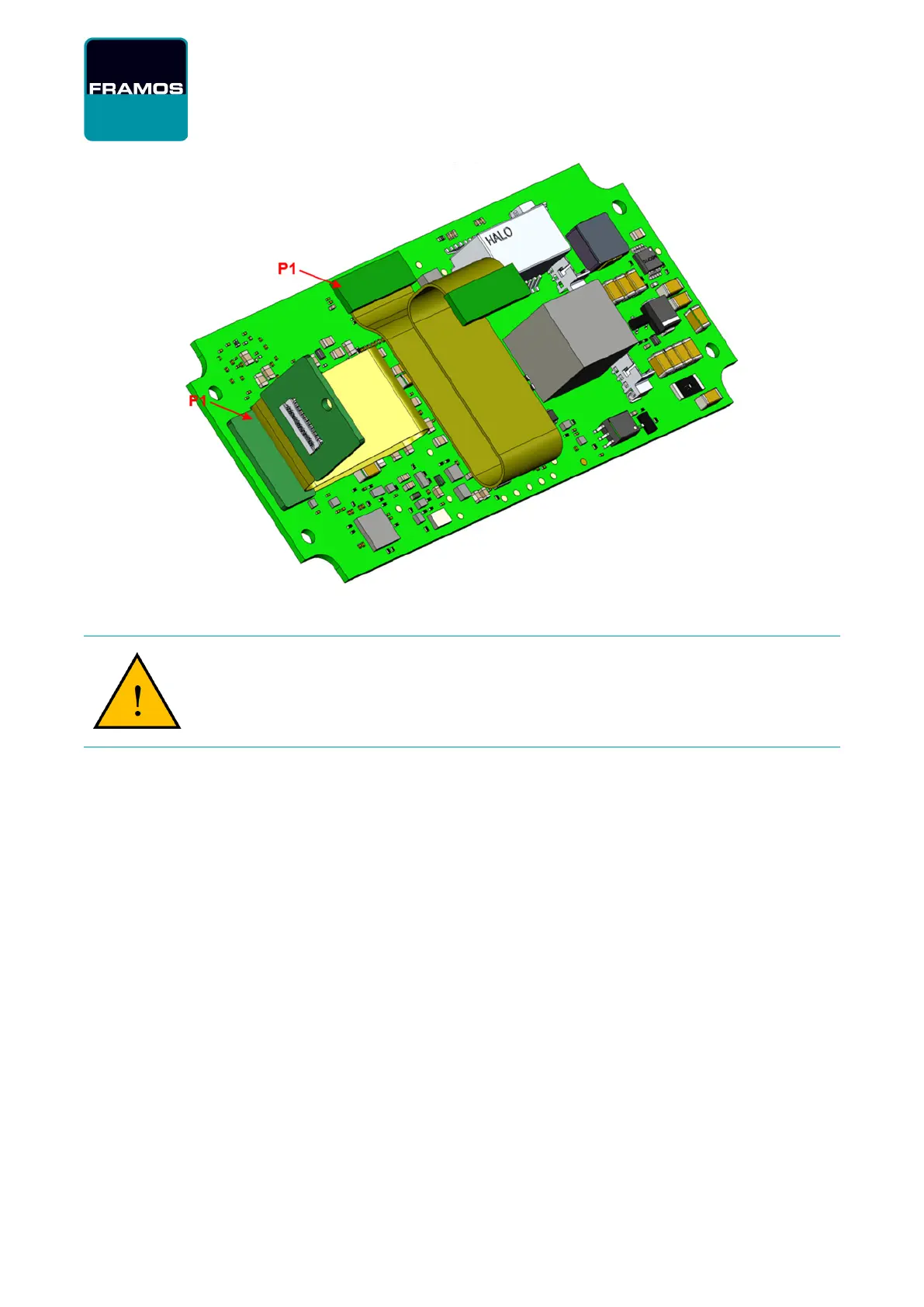

Figure 8 – Connecting Interposer Cables to FRAMOS D4 Visual Processing Board

Caution: Care should be taken when connecting RGB and Depth Interposer

cables to

FRAMOS D4 Visual Processing Board, as the wrong connection,

position or orientation, can cause

permanent damage to the device. The correct

cables position and orientation are shown in the Figure 8.

5.2 D400e Module Variant Connectors Pinout

Molex Pico Blade Standard Connector 53398-0871 is an interface connector for the ethernet,

power supply and GPIOs:

 J3 Ethernet Connector

 J6 Power and IO Connector
