FRAMOS Industrial Depth Camera D400e Series - User Manual

Version 1.6.0

from 2021-10-15 28 of 64

5.2.2 Power and IO Connector J6

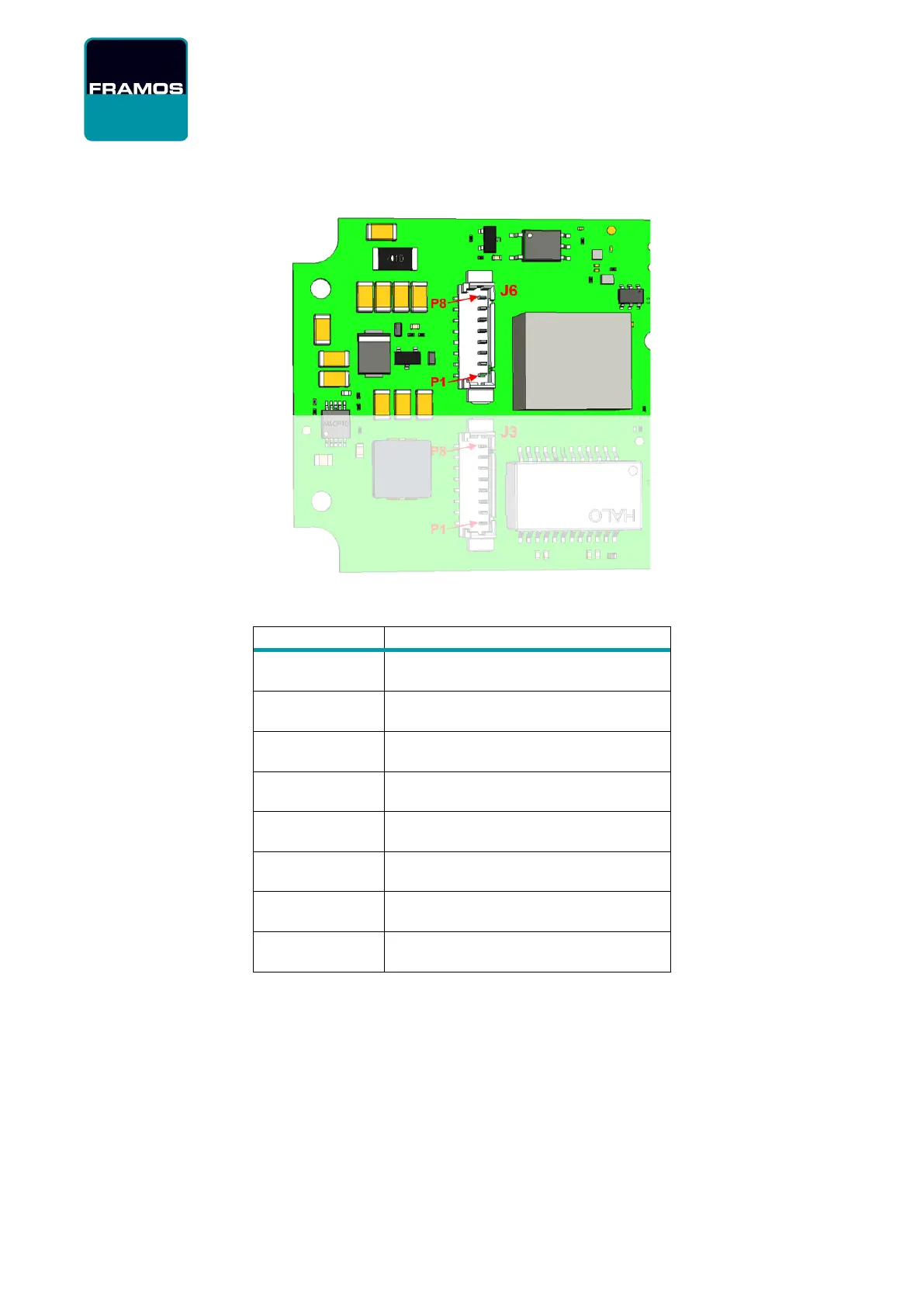

Figure 10 – FRAMOS D4 Visual Processing Board Power and IO Connector

J6 Pin

Description

DC Power supply, 12-24V DC (+/-

10%)

Power GND

Not connected

GND for opto-isolated I/O

Opto-isolated OUT

Opto-isolated IN

Table 24 – J6 Pin Assignment
