FRAMOS Industrial Depth Camera D400e Series - User Manual

Version 1.6.0

from 2021-10-15 53 of 64

9.3.2 Non-interactive Mode

In non-interactive mode, no warning will be displayed but selected cameras will be verified for IP

address conflict. If the list contains a camera that is in IP address conflict, the firmware update

procedure will be terminated.

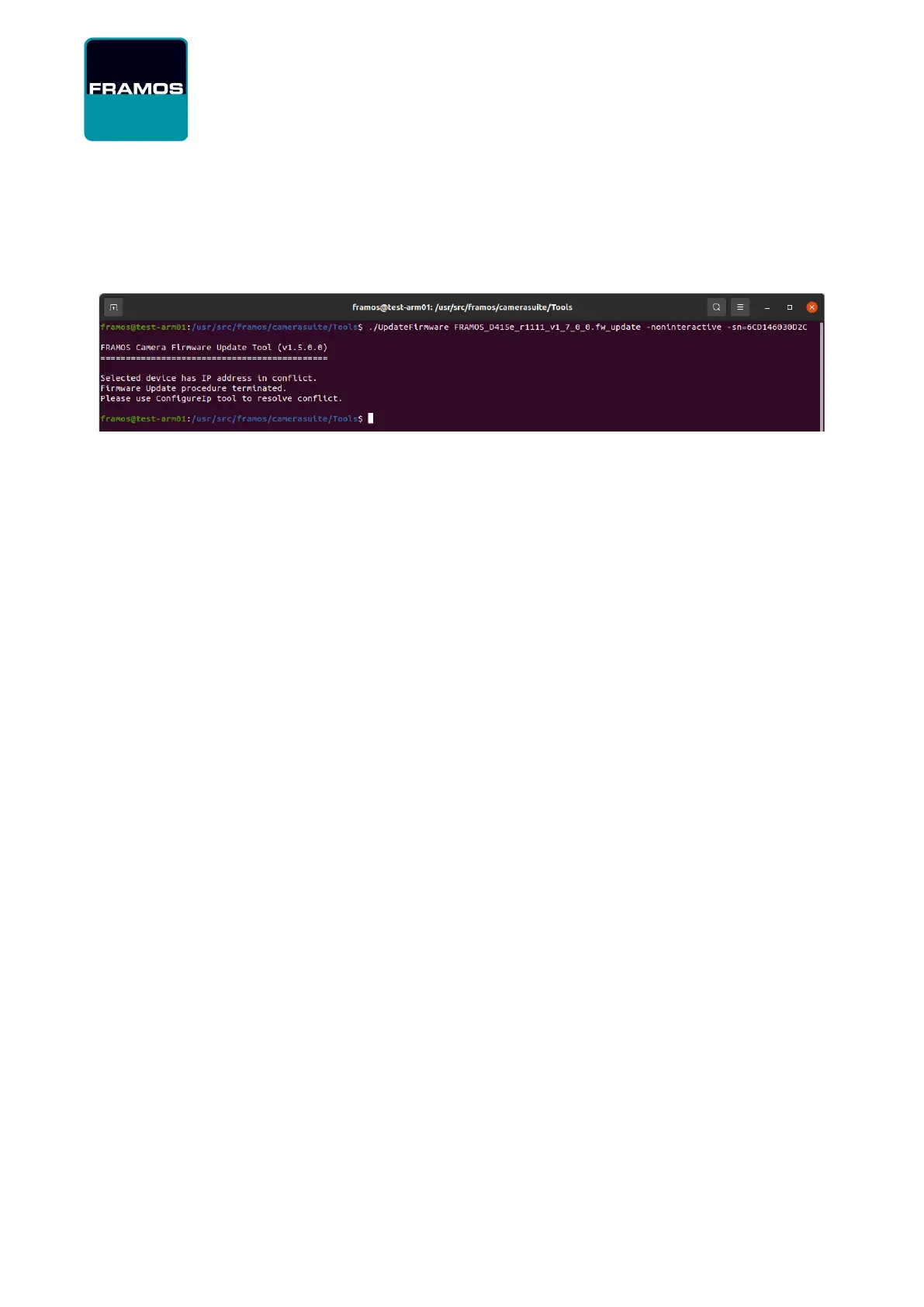

Figure 33 – IP address conflict, procedure terminated
