FRAMOS D455e - Figure 36 - IP Address Conflict Warning Message; Figure 37 - Configureip Tool Arguments; Figure 38 - Verification of Status of DHCP Protocol

64 pages

Save Page as PDF

To Next Page

To Previous Page

FRAMOS Industrial Depth Camera D400e Series - User Manual

Version 1.6.0

from 2021-10-15 56 of 64

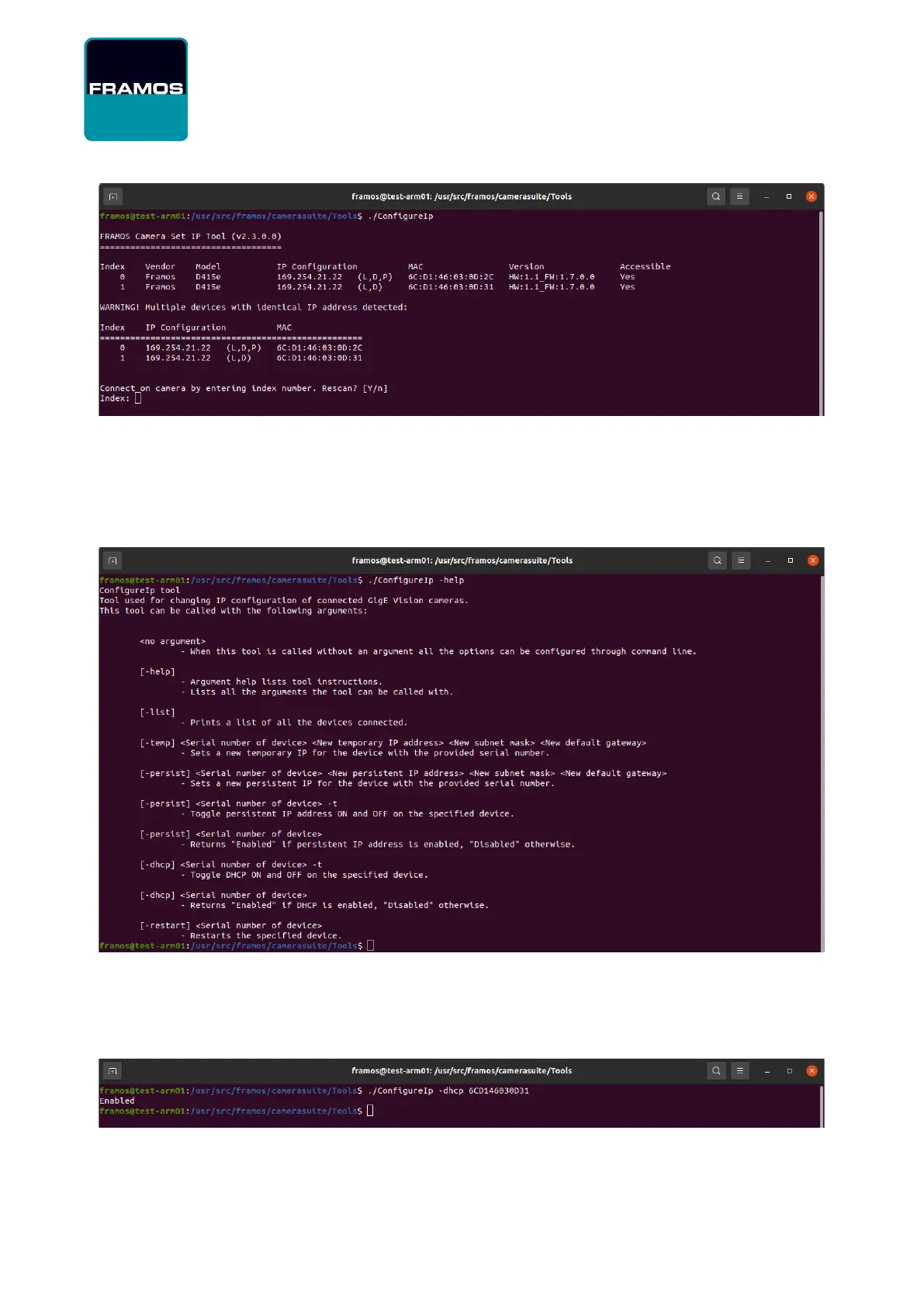

Figure 36 – IP address conflict warning message

Noninteractive mode

To get a list of all available arguments, run the tool with argument “-help”:

Figure 37 – ConfigureIp tool arguments

The following examples show how to run the tool with some of the available arguments.

To verify if the device has DHCP protocol enabled:

Figure 38 – Verification of status of DHCP protocol

To verify if the device has persistent IP address enabled:
