FRAMOS D455e - Ethernet Connector J3; Figure 9 - FRAMOS D4 Visual Processing Board Ethernet Connector; Table 23 - J3 Pin Assignment

64 pages

Save Page as PDF

To Next Page

To Previous Page

FRAMOS Industrial Depth Camera D400e Series - User Manual

Version 1.6.0

from 2021-10-15 27 of 64

5.2.1 Ethernet Connector J3

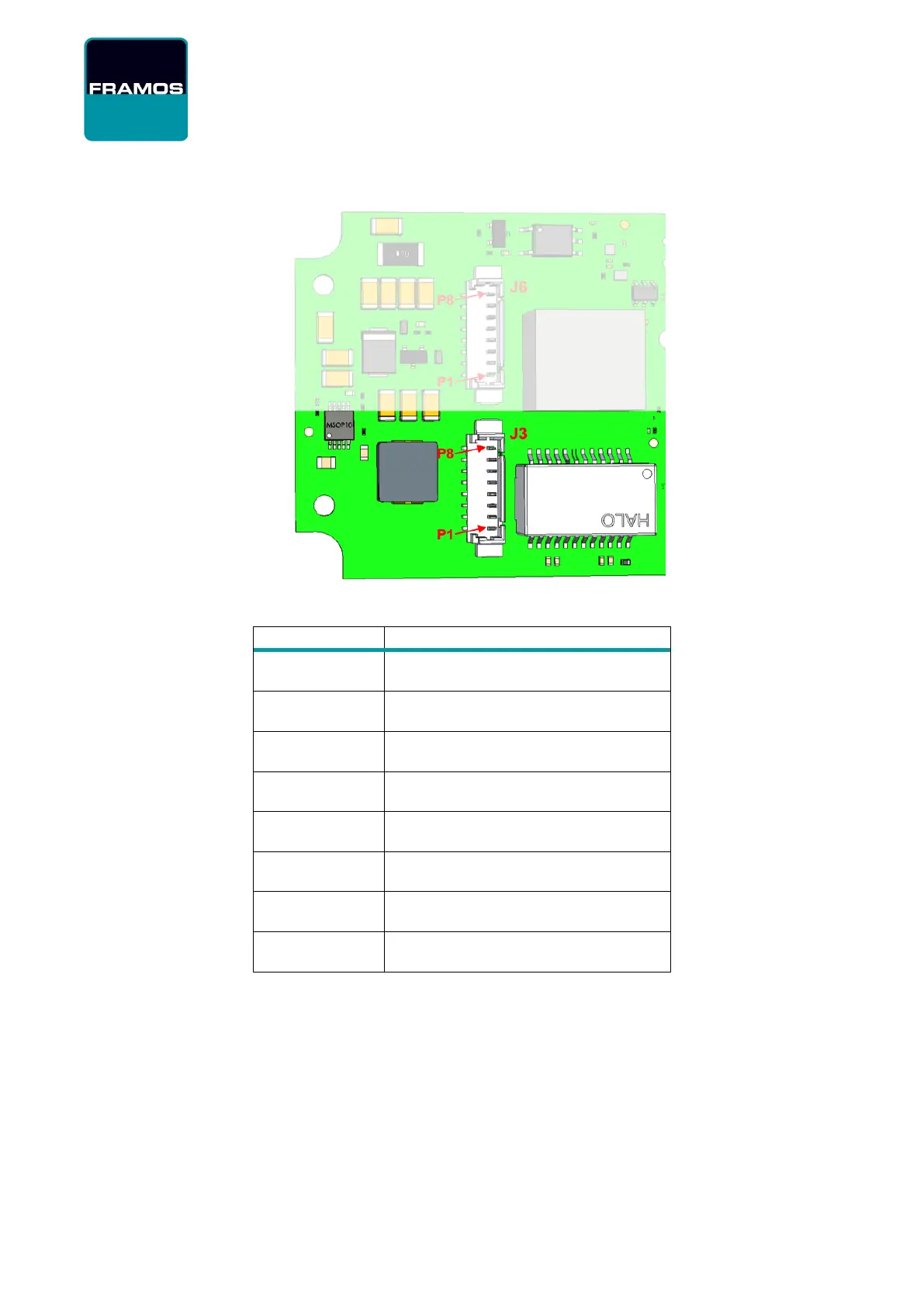

Figure 9 – FRAMOS D4 Visual Processing Board Ethernet Connector

J3 Pin

Description

BI_DA+

BI_DA-

BI_DD+

BI_DD-

BI_DC+

BI_DC-

BI_DB+

BI_DB-

Table 23 – J3 Pin Assignment
