FRAMOS Industrial Depth Camera D400e Series - User Manual
Version 1.6.0
from 2021-10-15 57 of 64

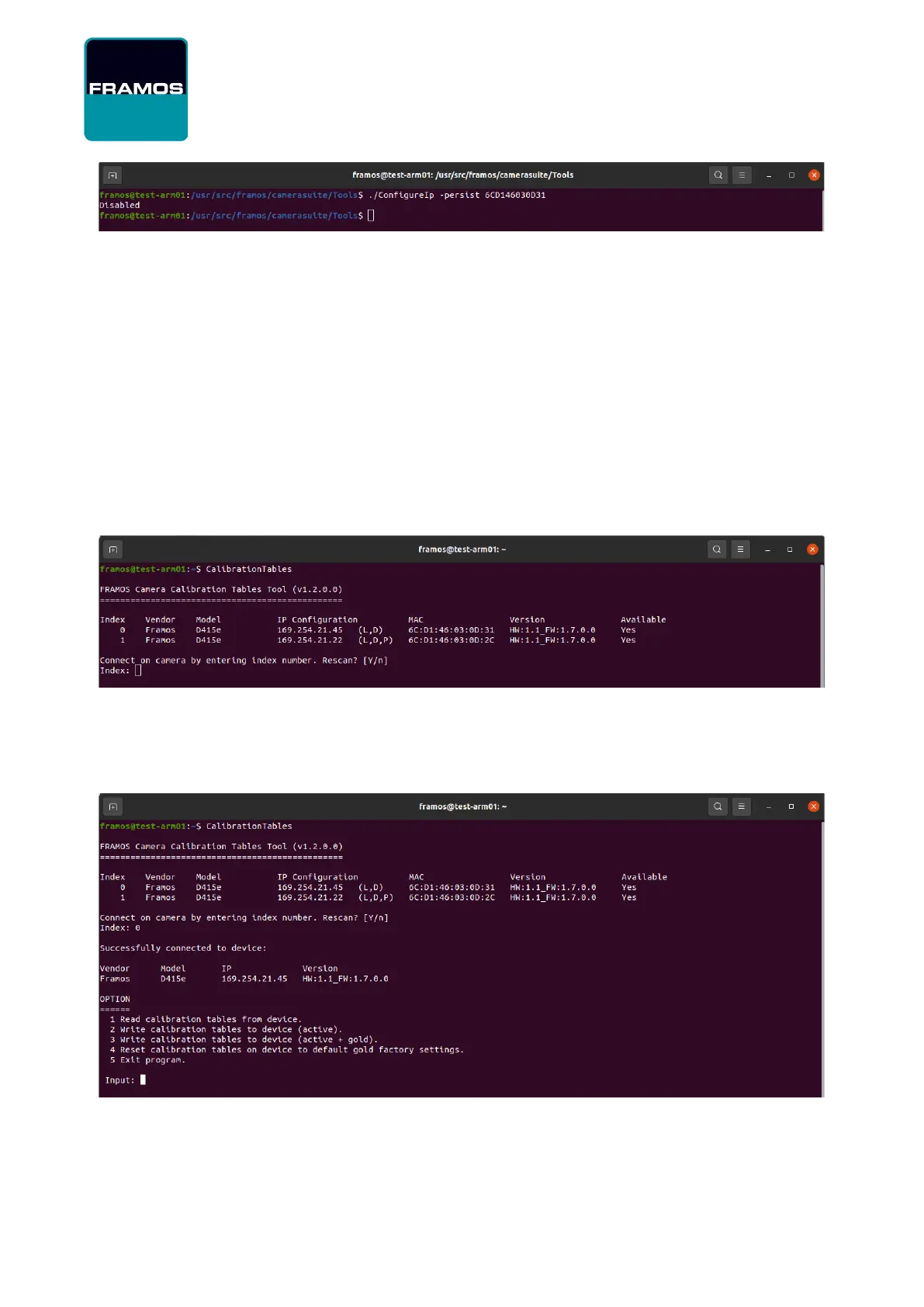

Figure 39 – Verification of status of persistent IP address
10.1.2 Manage Camera Calibration Tables
CalibrationTables tool is used to manage calibration tables on FRAMOS Industrial Depth Camera
D400e Series. Following actions are supported:
 Read calibration tables from device
 Write calibration tables to device (active)
 Write calibration tables to device (active + gold)
 Reset calibration tables on device to default gold factory settings
Usage example on Linux – running CalibrationTables tool:
CalibrationTables
Figure 40 – Tool CalibrationTables Part1
Select a camera from the list and then choose desired action:
Figure 41 – Tool CalibrationTables Part2
