FRAMOS Industrial Depth Camera D400e Series - User Manual

Version 1.6.0

from 2021-10-15 33 of 64

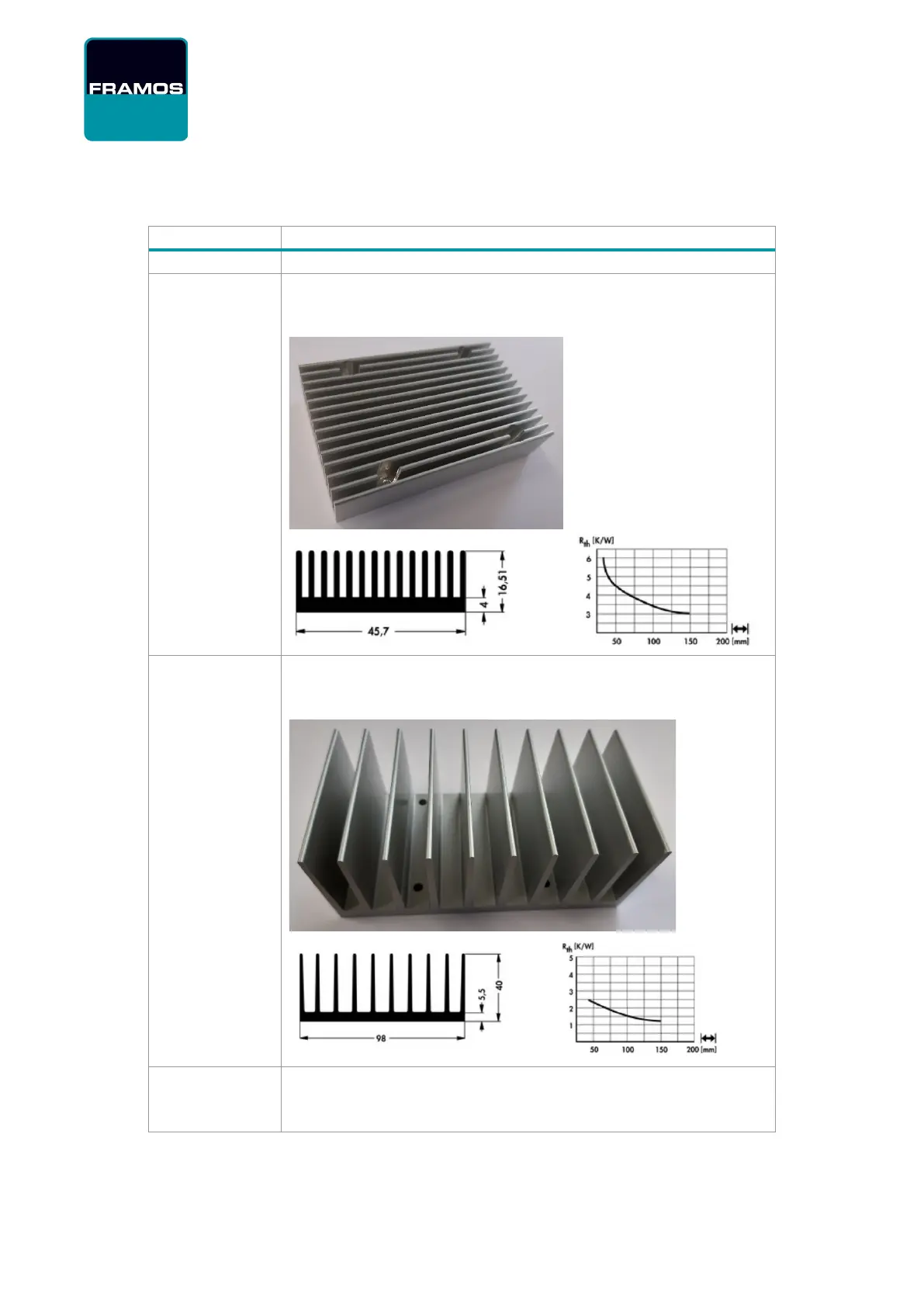

The table below lists several heat dissipation elements that can be used to keep the camera in a

safe operation mode.

Heatsink:

Description:

No heatsink attached

H1 - passive

SK 424 75 ME

Heatsink length: 75 mm

Thermal resistance: approx. 3.8 K/W

H2 - passive

SK 408 50 ME

Heatsink length: 50 mm

Thermal resistance: approx. 2.3 K/W

H3 - passive

SK 530 100 AL

Heatsink length: 100 mm

Thermal resistance: approx. 0.38 K/W
