Frick QUANTUM - Current Transformer (Motor Amps); Figure 20. Current Transformer

QUANTUM
™
HD COMPRESSOR CONTROL PANEL
MAINTENANCE
090.040-M (NOV 2016)
Page 38
Channel 16 of Analog Board 1 is dedicated to reading motor
amps, either through the use of the on board current trans-
former when using a 0-5 amp CT, or from an external source.
When reading motor amps directly at the P8 terminal strip
from a CT, the input signal cannot exceed 5 amps. An external
DC Ma or voltage device, may be used as an alternate method
of reading motor amps. Connect the wiring to connector
P7B as shown in the diagram below:

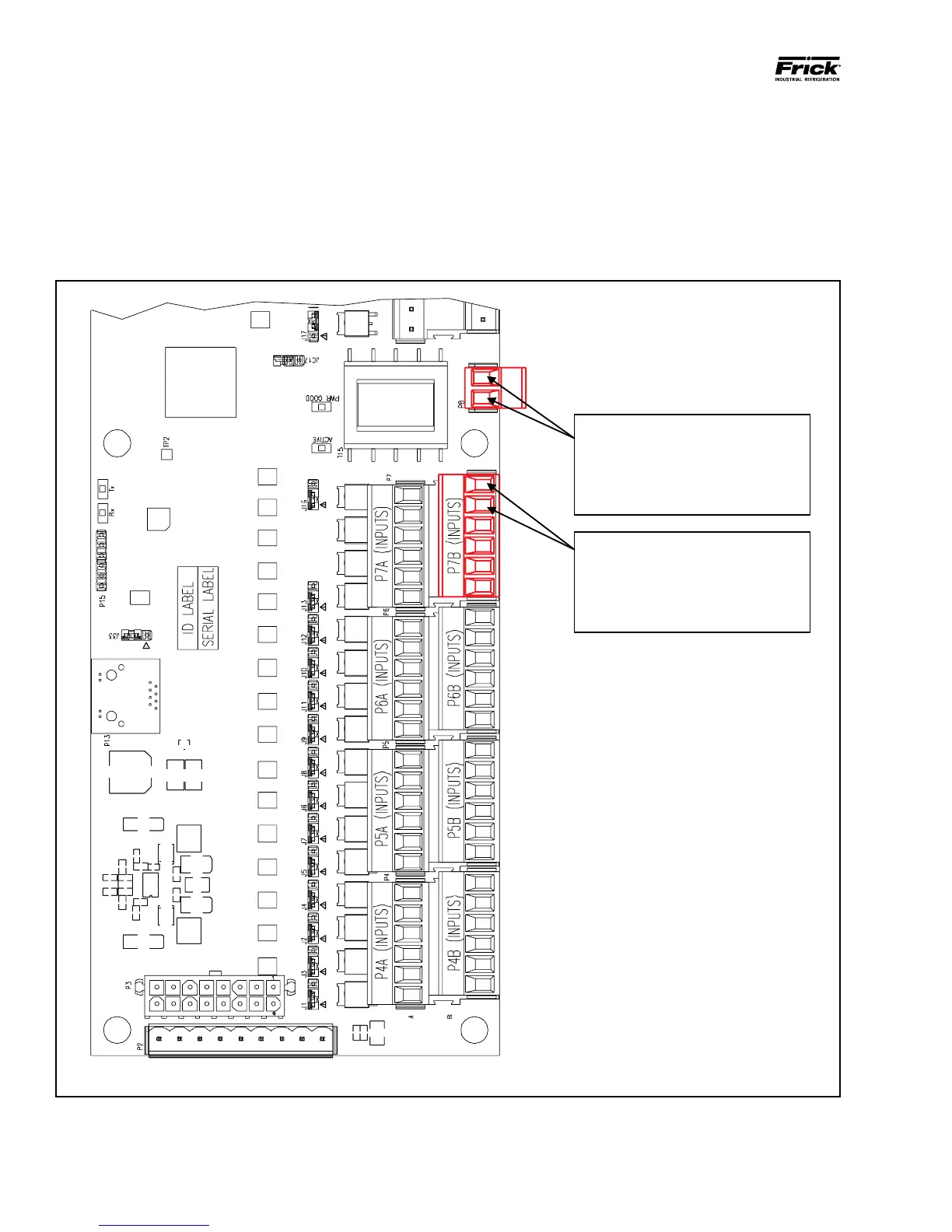

CURRENT TRANSFORMER (MOTOR AMPS)
CH.16
Current Transformer (CT) connecon
– Standard direct connecon,
0 - 5 amp input
CH.16
Motor Amps – Alternate external
signal connecon, 0 - 20mA or
4 - 20mA input
090.040-WD0010.eps
Figure 20. Current Transformer
