QUANTUM
™
HD COMPRESSOR CONTROL PANEL
MAINTENANCE
090.040-M (NOV 2016)
Page 48

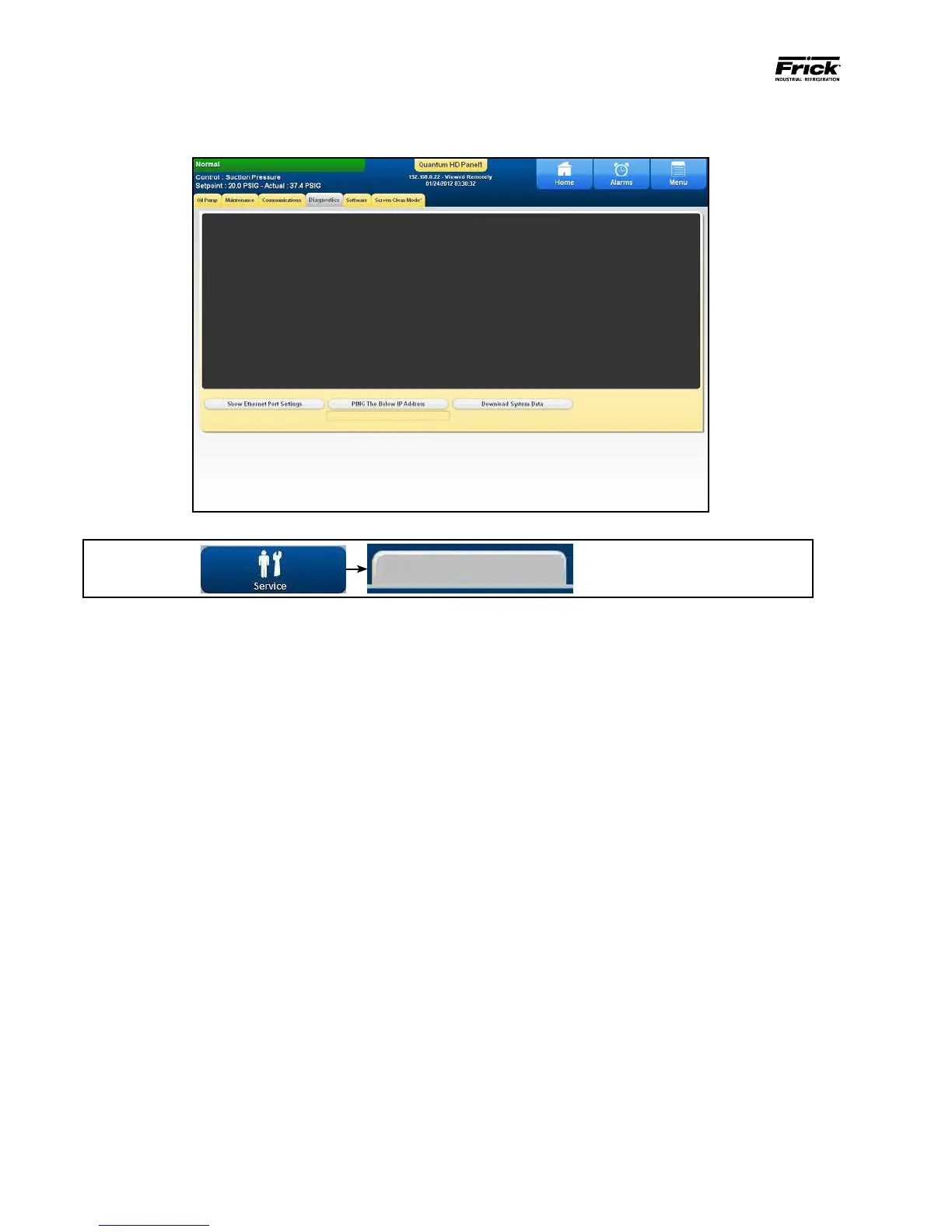

SERVICE - DIAGNOSTICS
DESCRIPTION: This screen provides for three different Com-
munications related troubleshooting items:
• Show Ethernet Port Settings - Pressing this button will
cause the Ethernet Port Settings to be shown.
• Ping the Below IP Address - There is a setpoint box
located below this button. Select this box to call up a
numeric keypad. Enter the IP address that you wish to
PING, then press the [PING The Below Address] button.
The results of the PING will be shown.
• Download System Data -
ACCESSING:
Diagnostics
090.040-PH0012.tif
