Frick QUANTUM - Status - Filter Info; Status - Vyper Info

QUANTUM
™
HD COMPRESSOR CONTROL PANEL
MAINTENANCE
090.040-M (NOV 2016)
Page 52

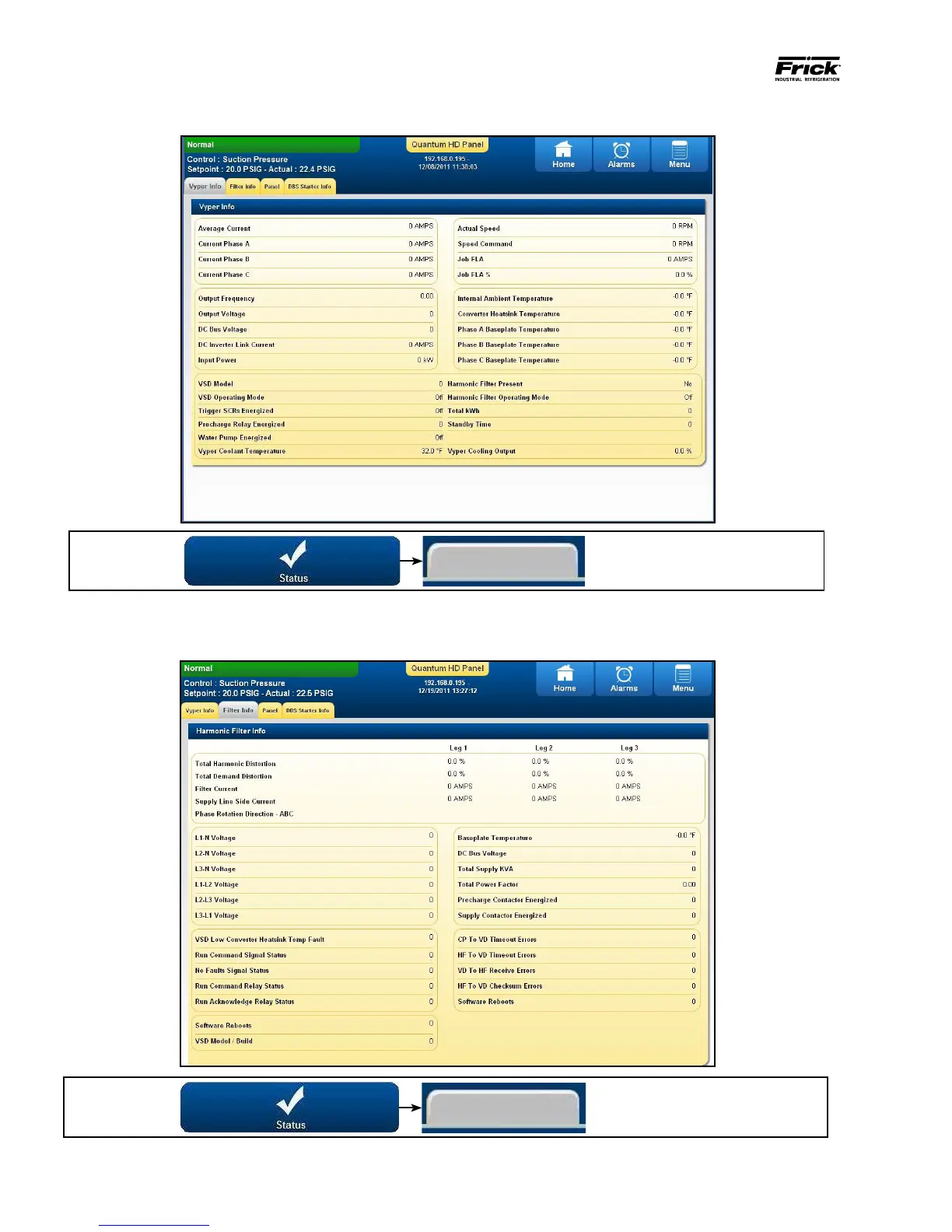

STATUS - VYPER INFO
DESCRIPTION: This screen is for informational purposes
only, as there is nothing that can be changed. The data that
is populated here is received via serial communications from
an optional Vyper drive unit.
STATUS - FILTER INFO
DESCRIPTION: This screen is for informational purposes
only, as there is nothing that can be changed. The data that
is populated here is received via serial communications from
an optional Vyper drive unit.
090.040-PH0018.tif
ACCESSING:
Vyper
ACCESSING:
Filter Info
090.040-PH0019.tif
