QUANTUM
™
HD COMPRESSOR CONTROL PANEL
MAINTENANCE
090.040-M (NOV 2016)
Page 55

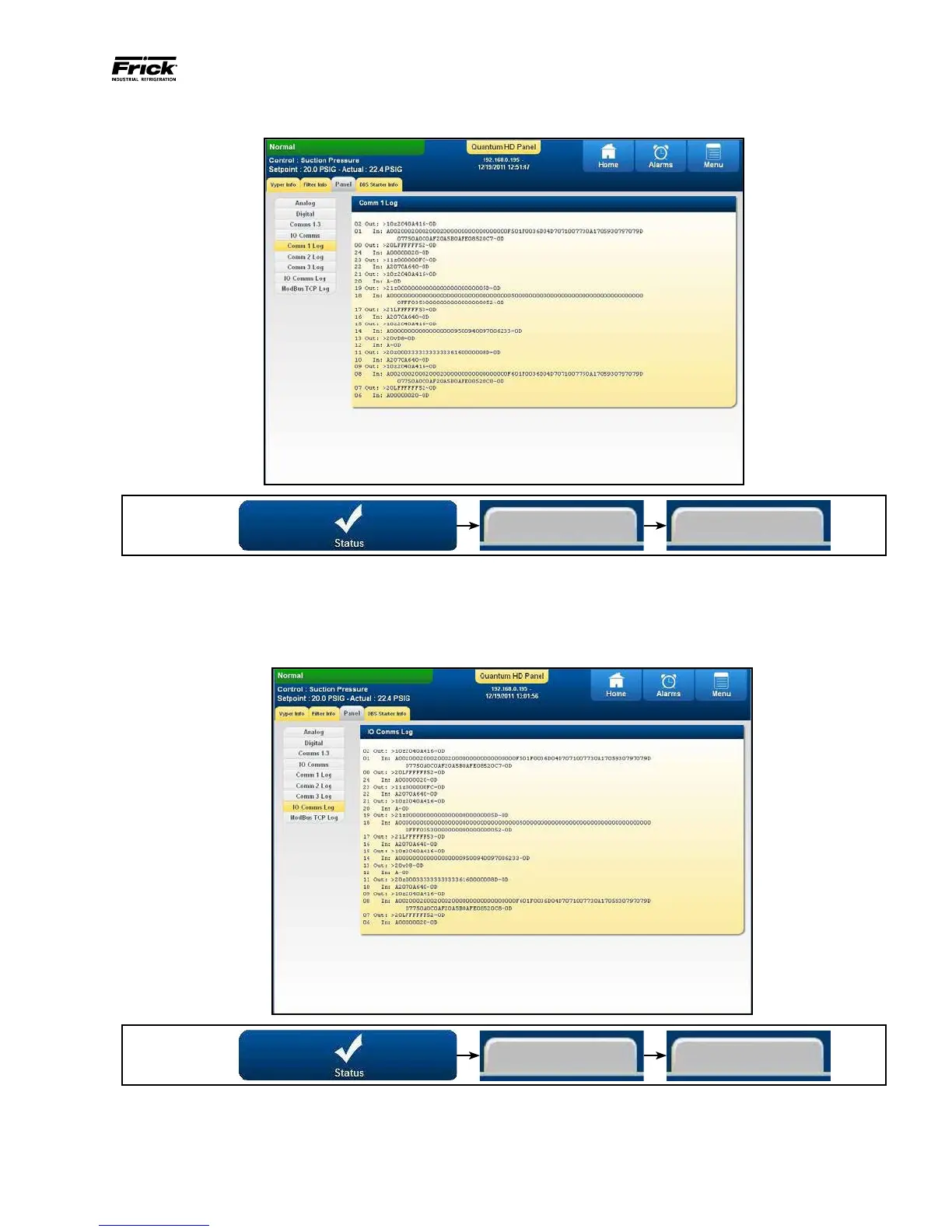

STATUS - PANEL (COMM 1-3 LOG)
DESCRIPTION: The screen shown above represents the
Comm 1 communications log, however, the same style screen
will appear for Comm 2 and Comm 3 also, with the title being
replaced to reect the Comm log that is being viewed. This
is an informational screen only, and provides a listing of the
most recent data that has been sent or received from the
port being viewed.
STATUS - PANEL (IO COMMS LOG)
DESCRIPTION: The screen shown above represents the
combined activity of all serial communications, viewable at
one time. This is an informational screen only, and provides a
listing of the most recent data that has been sent or received
through all serial communications.
ACCESSING:
Panel Comms 1-3 Log
ACCESSING:
Panel IO Comms Log
090.040-PH0025.tif
090.040-PH0024.tif
