QUANTUM
™
HD COMPRESSOR CONTROL PANEL
MAINTENANCE
090.040-M (NOV 2016)
Page 53

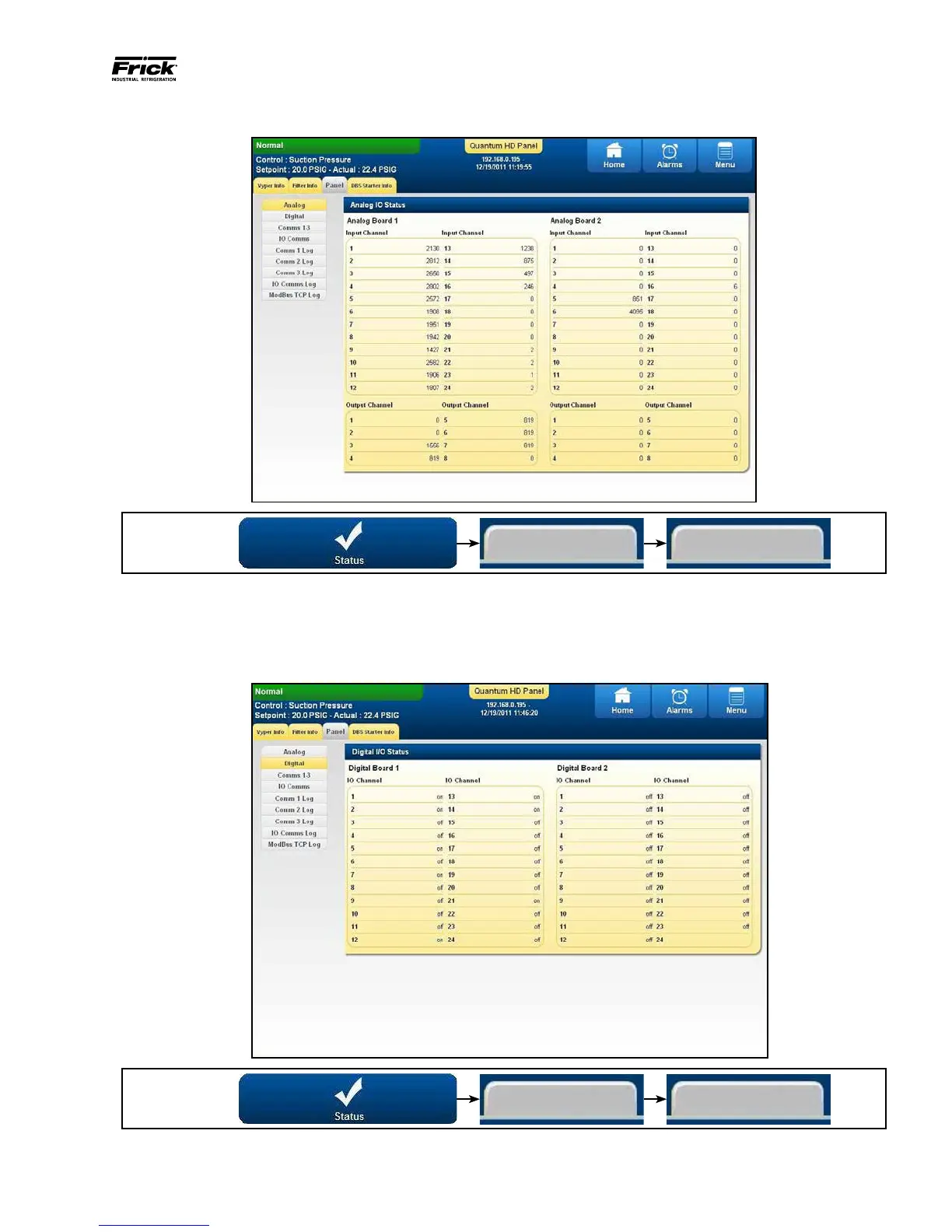

DESCRIPTION: The Analog Service Screen has been provided
to view the raw data from an Analog Board. Input Channels
1 through 24 as well as Output channels 1 through 8 are
shown for Analog Board 1, and optionally for Analog board
2 (if installed). Analog values are converted from binary to
show volts. The error factor is +/- .05 volts. This is an in-
formational screen only.
STATUS - PANEL (DIGITAL)
DESCRIPTION: The Digital Service Screen has been provided
to view the On/Off status of each of the 24 available I/O
channels for Digital Board 1, and optionally Digital Board 2.
This is an informational screen only.
STATUS - PANEL (ANALOG)
ACCESSING:
Panel Analog
ACCESSING:
Panel Digital
090.040-PH0020.tif
090.040-PH0021.tif
