QUANTUM
™
HD COMPRESSOR CONTROL PANEL
MAINTENANCE
090.040-M (NOV 2016)
Page 67
This drawing appears here for reference purposes only, and is subject to change without notice. When installing, or servicing equipment,
always refer to the actual drawings that are included with the control panel for the latest information.
DETAIL C
I/O BD COMMS
COMM 4P17 COMM 3P16
B
H
TOUCHGLASS
RIBBON
CABLE
090.040-LD0012.eps

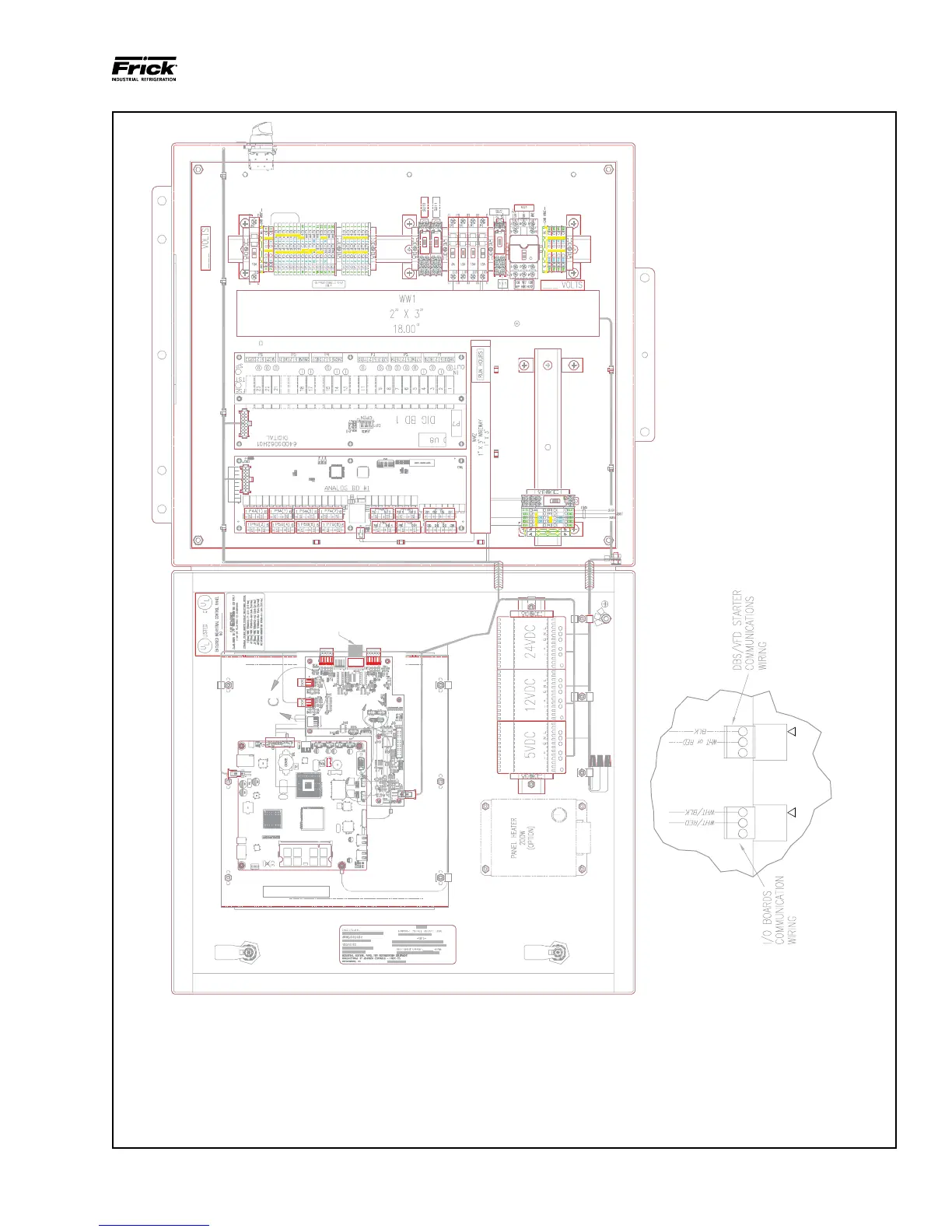

Figure 24a. Quantum HD Panel Assembly (2/4)
