QUANTUM
™
HD COMPRESSOR CONTROL PANEL
MAINTENANCE
090.040-M (NOV 2016)
Page 69
This drawing appears here for reference purposes only, and is subject to change without notice. When installing, or servicing equipment,
always refer to the actual drawings that are included with the control panel for the latest information.
STANDARD WIRING
OF “CRLL”
STANDARD WIRING
OF “CRSH”
STANDARD WIRING OF “CROH”
CONTROL RELAY FOR 500W HT
FOR WIRING TO 2–1000W HTRS
MOVE WIRE 104 TO TERMINAL
DIGITAL BOARD #2
OPTION TERMINALS
PANEL HEATER
OPTION BREAKER
WHEN 2 – 1KW HEATERS
OR MORE ARE USED, THEN
MOVE WIRE 104 TO CB1A.
090.040-WD0017.eps

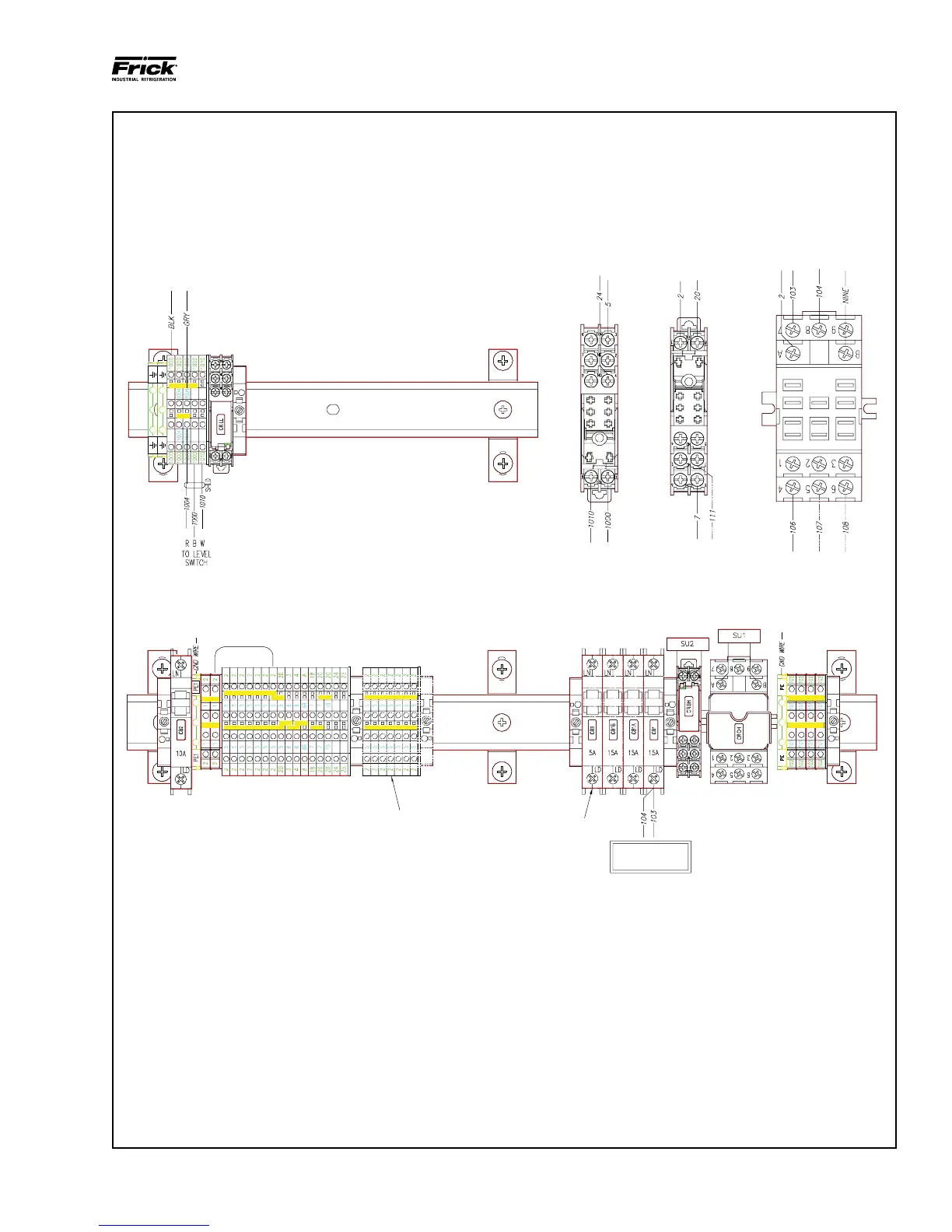

Figure 24c. Quantum HD Panel Assembly (4/4)
To Next Page
