QUANTUM
™
HD COMPRESSOR CONTROL PANEL
MAINTENANCE
090.040-M (NOV 2016)
Page 84
This drawing appears here for reference purposes only, and is subject to change without notice. When installing, or servicing equipment,
always refer to the actual drawings that are included with the control panel for the latest information.
Vi YY-3 YY-4
2.2ONOFF
3.5OFF ON
5ONON
Vi SOLENOID LOGIC
090.040-WD0032.eps

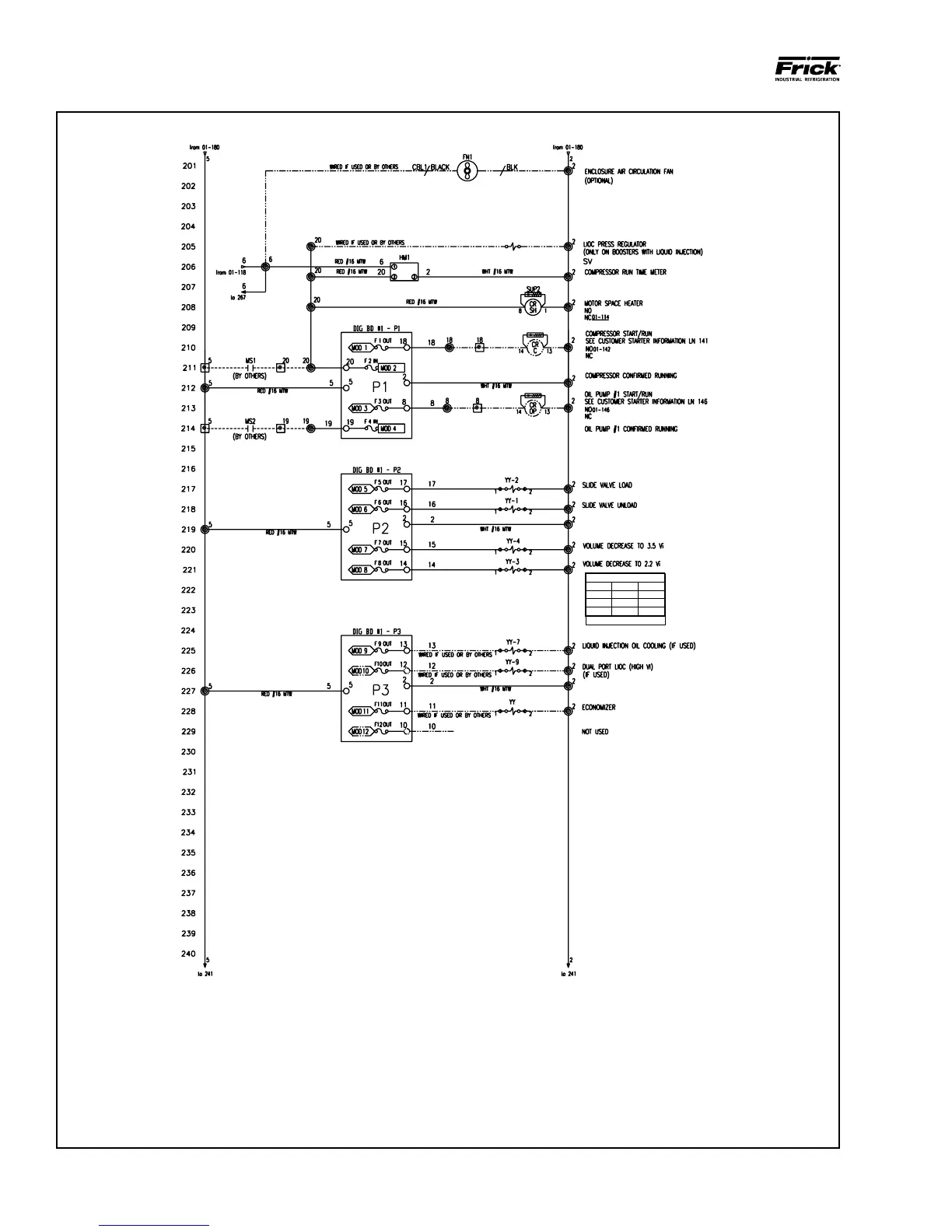

Figure 27b. RXF / RXB Wiring Diagram (Capacity Slide Potentiometer)(3/6)
To Next Page
