QUANTUM
™
HD COMPRESSOR CONTROL PANEL
MAINTENANCE
090.040-M (NOV 2016)
Page 93
This drawing appears here for reference purposes only, and is subject to change without notice. When installing, or servicing equipment,
always refer to the actual drawings that are included with the control panel for the latest information.
090.040-WD0041.eps

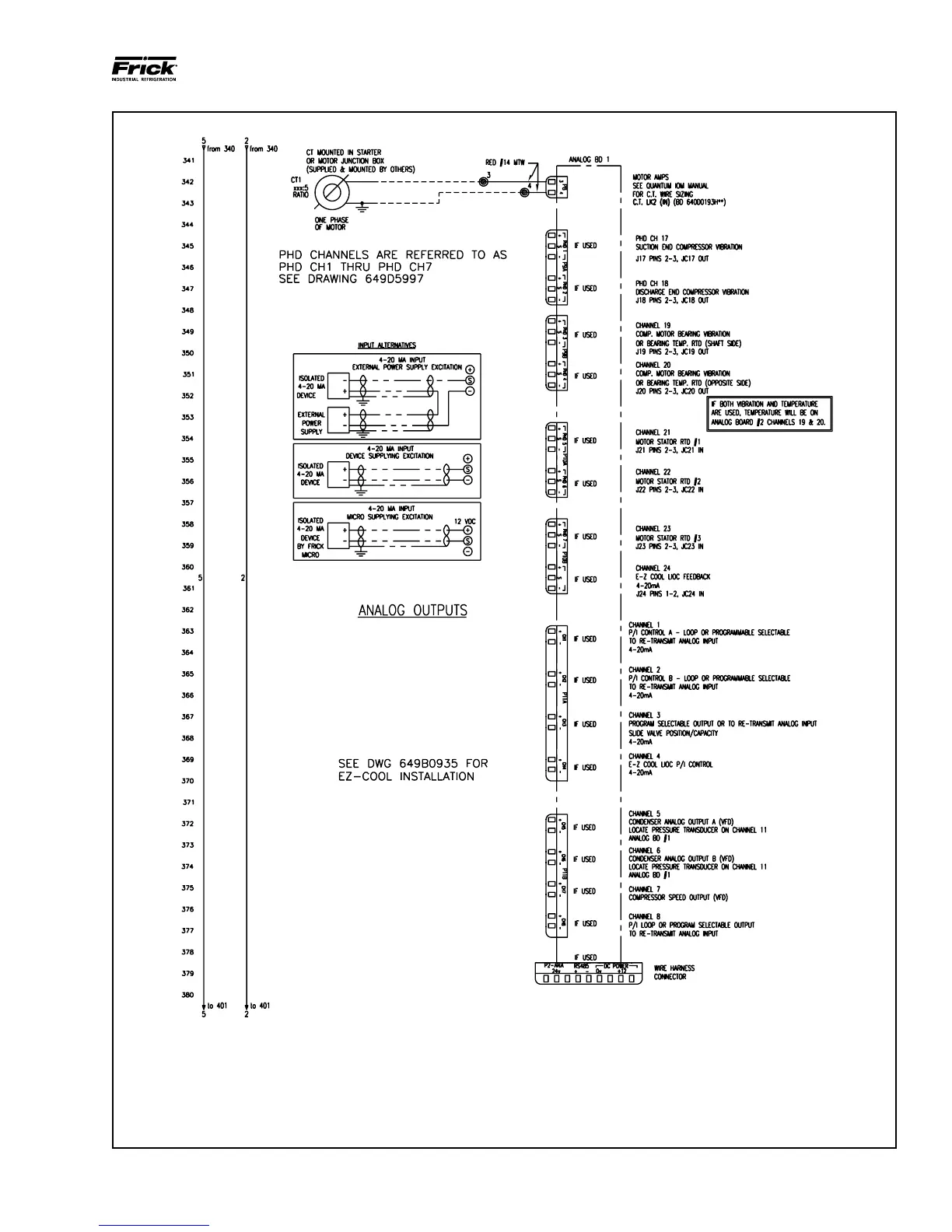

Figure 28e. RWBII Wiring Diagram (Capacity Slide Potentiometer) (6/6)
