QUANTUM
™
HD COMPRESSOR CONTROL PANEL
MAINTENANCE
090.040-M (NOV 2016)
Page 96
This drawing appears here for reference purposes only, and is subject to change without notice. When installing, or servicing equipment,
always refer to the actual drawings that are included with the control panel for the latest information.

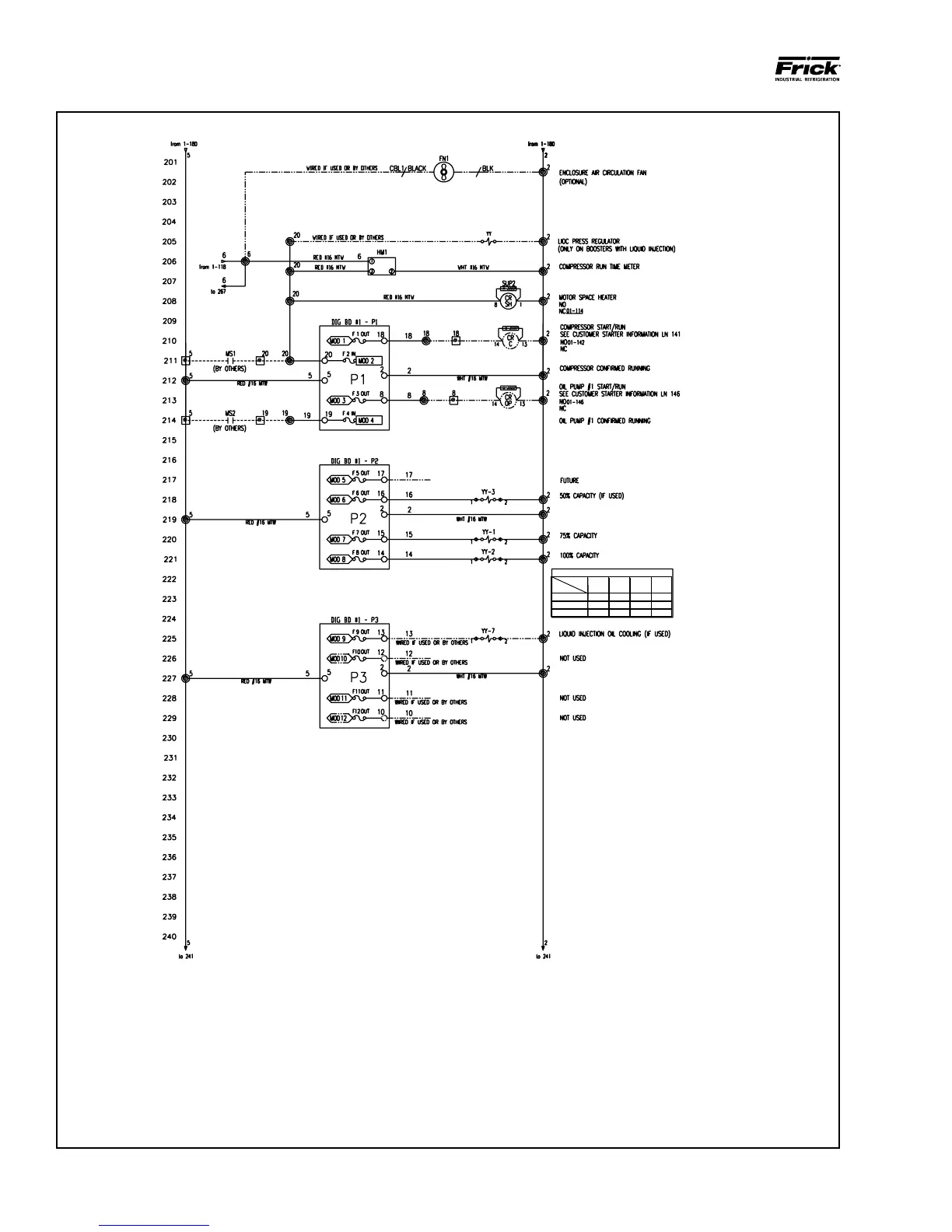

Figure 29b. RDB Wiring Diagram (3/6)
% CAP.
SOL
*
25 50 75 100
* 50%OFF ON ON ON
75%OFF OFFONON
100% OFFOFF OFFON
CAPACITY OUTPUTS
090.040-WD0044.eps
To Next Page
