Froling P4 Installation Manual

Technology
Components, Connections, and Dimensions
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 13
Tel +43 (0) 7248 606-0 Fax +43 (0) 7248 606-600 info@froeling.com www.froeling.com M0930207
3
2 Technical Data

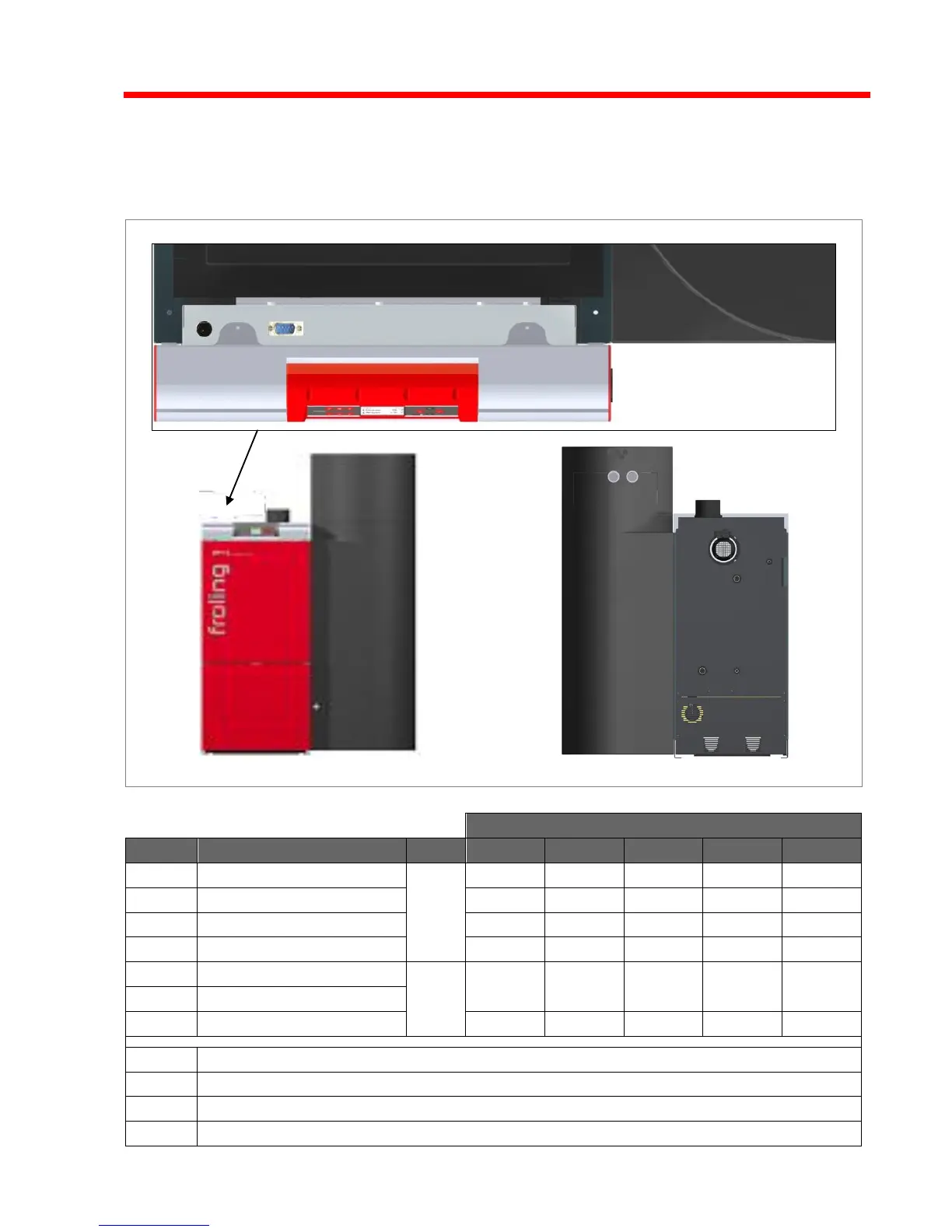

2.1 Components and Connections
P4 Pellet
Pos.
Component
Unit
8 / 15
20 / 25
32 / 38
48/60
80/100
A
Boiler outfeed connection
inches
1
1½
1½
1½
2
B
Boiler return feed connection
1
1½
1½
1½
2
C
Drain
½
½
½
½
1
D
Air vent
½
½
½
½
1
E
Pellet suction line
inches
2
2
2
2
2
F
Return-air line
G
Flue gas pipe connection
5
5
6
6
8
1
Lambdatronic P 3200 control system
2
Switch box
3
Safety temperature limiter - STL
4
Induced draught fan
4
C
A
G
1
2
3
B
D
E
F

Froling P4 Specifications

General

Model	P4
Category	Boiler
Fuel Type	Wood Pellets
Automatic Ignition	Yes
Automatic Cleaning	Yes
Touchscreen Control	Yes
Remote Monitoring	Yes
Weight	Varies depending on model
Dimensions (H x W x D)	Varies depending on model
