Froling P4 - Fitting the Ash Container and Doors

Technology
Components, Connections, and Dimensions
Page 26
M0930207 I
3

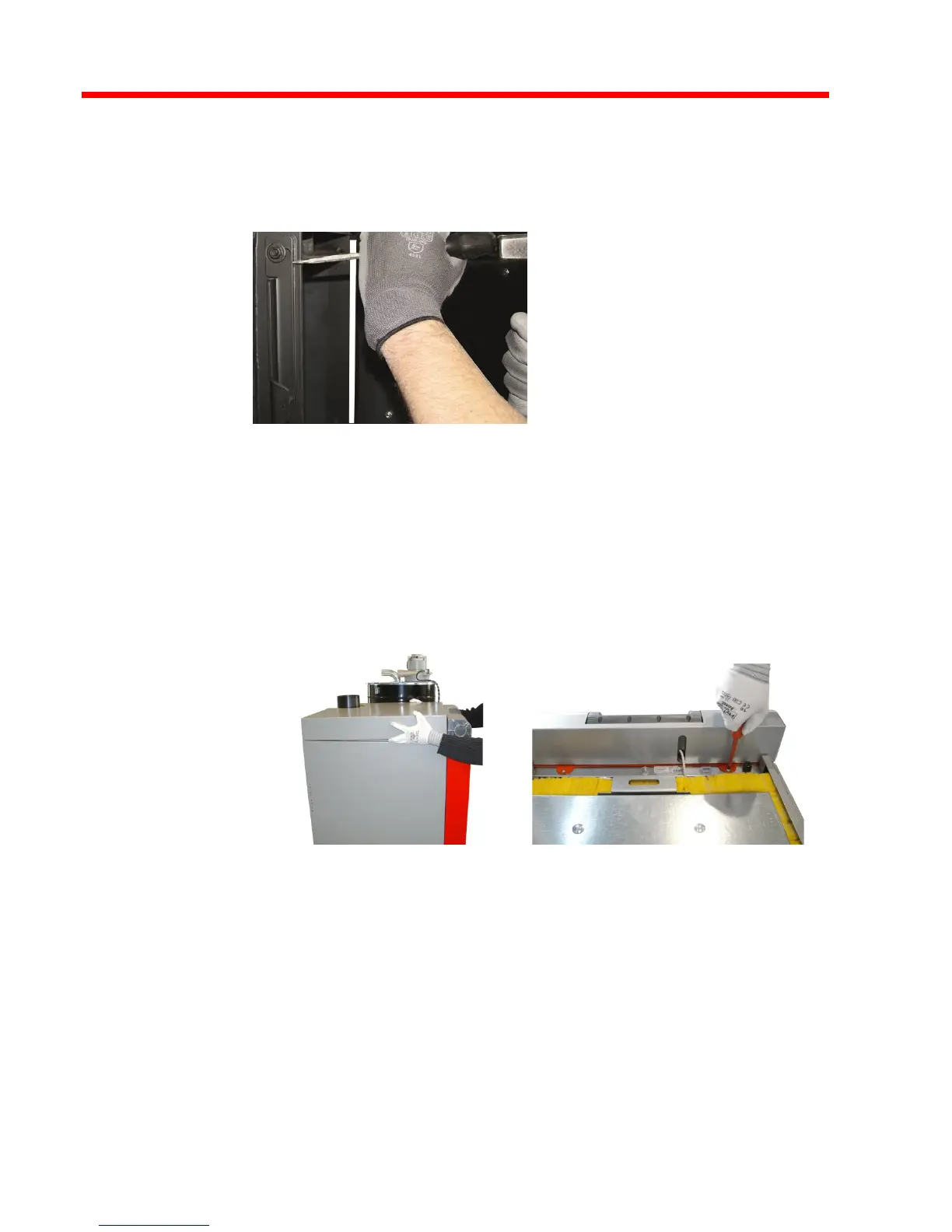

❒ Loosen the lock nuts at the top and bottom of the locking plate using a
wrench (13 mm).
❒ Close the door.
 With a gap of approx. 5-6” there should be noticeable resistance.
❒ If the resistance is too low or too high, move the locking plate backwards
or forwards using appropriate tools (e.g. screwdriver and hammer).
 Caution: The locking plate must be aligned at the top and bottom.
❒ Close the door.
❒ If the door will not close, move the locking plate forward slightly.
 Caution: The locking plate must be aligned at the top and bottom.
❒ Secure the lock nuts again.
3.4.2 Fitting the ash container and doors
❒ Remove the insulating cover.
❒ Remove the two screws and lock washers from the flaps of the controller
cover.
 Caution: Do not lose the lock washers!
