Froling P4 Installation Manual

Plumbing Systems
Page 50
M0930207 I
5
5.4.2 Pellet Boiler Circulator Pump Connection (Pump 0.1):
-Connect to Pump 1 socket on the Hydraulic board (See Fig 5.1).
5.4.3 DHW Circulator Pump Connection (Pump 0.2)
-Connect to Pump 2 socket on the Hydraulic board (See Fig 5.1).
5.4.4 Temperature Sensors (sensor 0.1-0.5)
-Connect Temperature sensors to sensors 1 to sensors 6 (See Fig 5.1).
5.5 Plumbing at the Boiler
 Install the included Air Vent and
fittings in the Air Vent upper right
tapping (D).
Pump 0.1
Pump 0.2
Sensors
0.1
0.2
0.3
0.4
0.5
0.6

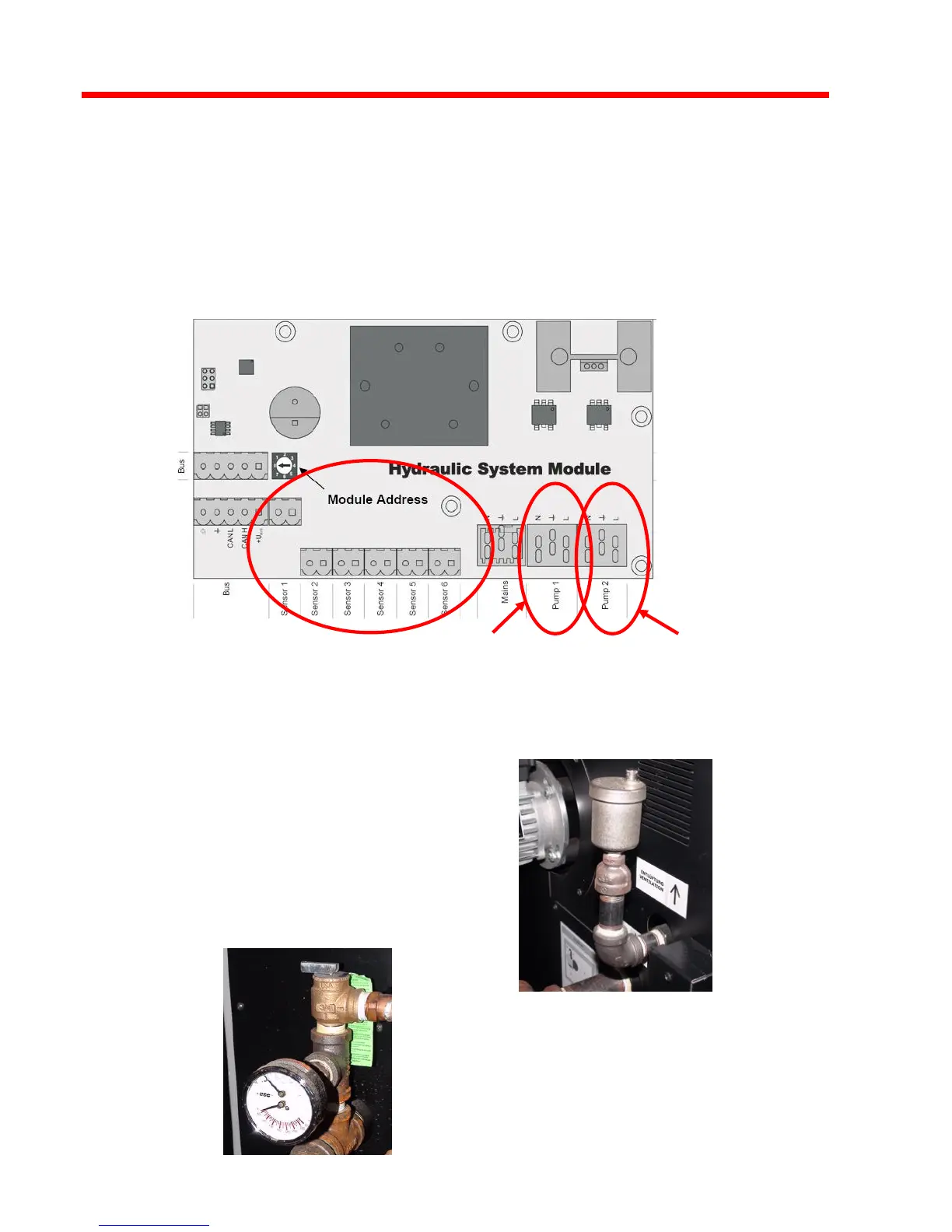

Fig 5.1
 Install the included
Pressure/
Temperature Gauge
and Pressure Relief
valve in the lower left
supply tapping (A).
