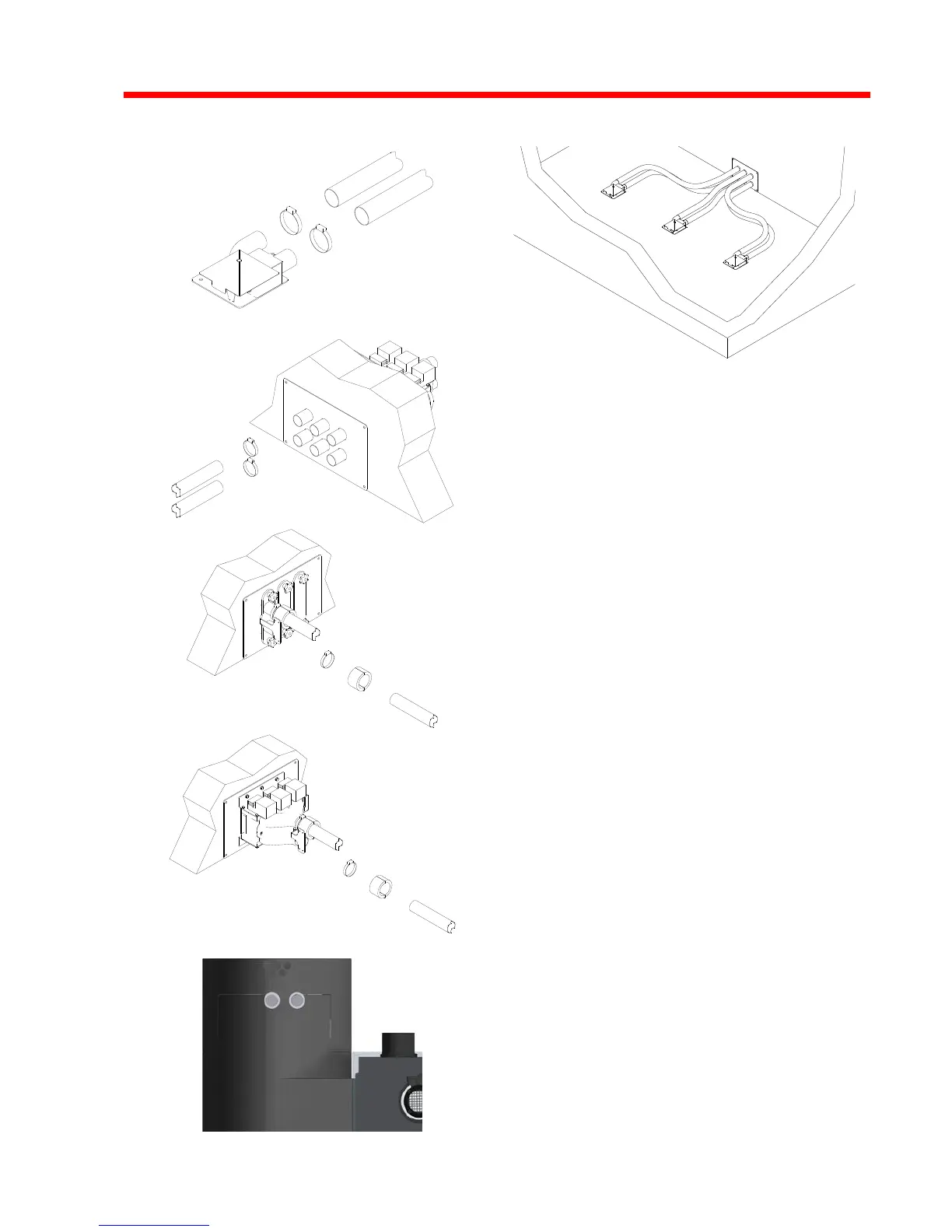

Installing the suction probes and lines
 Position the suction probes (K) at equal distances
in the pellet supply bin.
 Secure the suction probes to the bottom using
frame screws.
 Fix hose lines (A) to the suction probe using hose
clips (B).
 Lay the hose lines to the pellet box and secure
them using hose clips.
 WARNING! Read the label on the suction
probe or pellet box about the suction line and
return-air line! Ensure correct connection!
 WARNING! When connecting the hose lines,
be aware of proper grounding!
 Page 12, Proper Hose Grounding.
 Thread the fire protection choke collar (C) on to
the hose line (A) (optional).
 Attach the hose lines to the pellet box pipes
using hose clips (B).
 Lay the hose lines to the boiler, through
identified openings at the back plate and install
with hose clamps to the identified connections.
 WARNING! Read the label on the suction
probe or pellet box about the suction line and
return-air line! Ensure correct connection!
 Suction line: hose line to left connection (1)
on the back of the boiler.
 Return-air line: hose line to right connection
(2) on the back of the boiler.
 WARNING! When connecting the hose lines,
beware of potential equalisation!
 Page 12, Proper Hose Grounding.
 Mount included Safety Placard.
