Froling P4 - Install Delivery System; Universal Suction System

Installation
Install delivery system
Page 34
M0930207 I
3

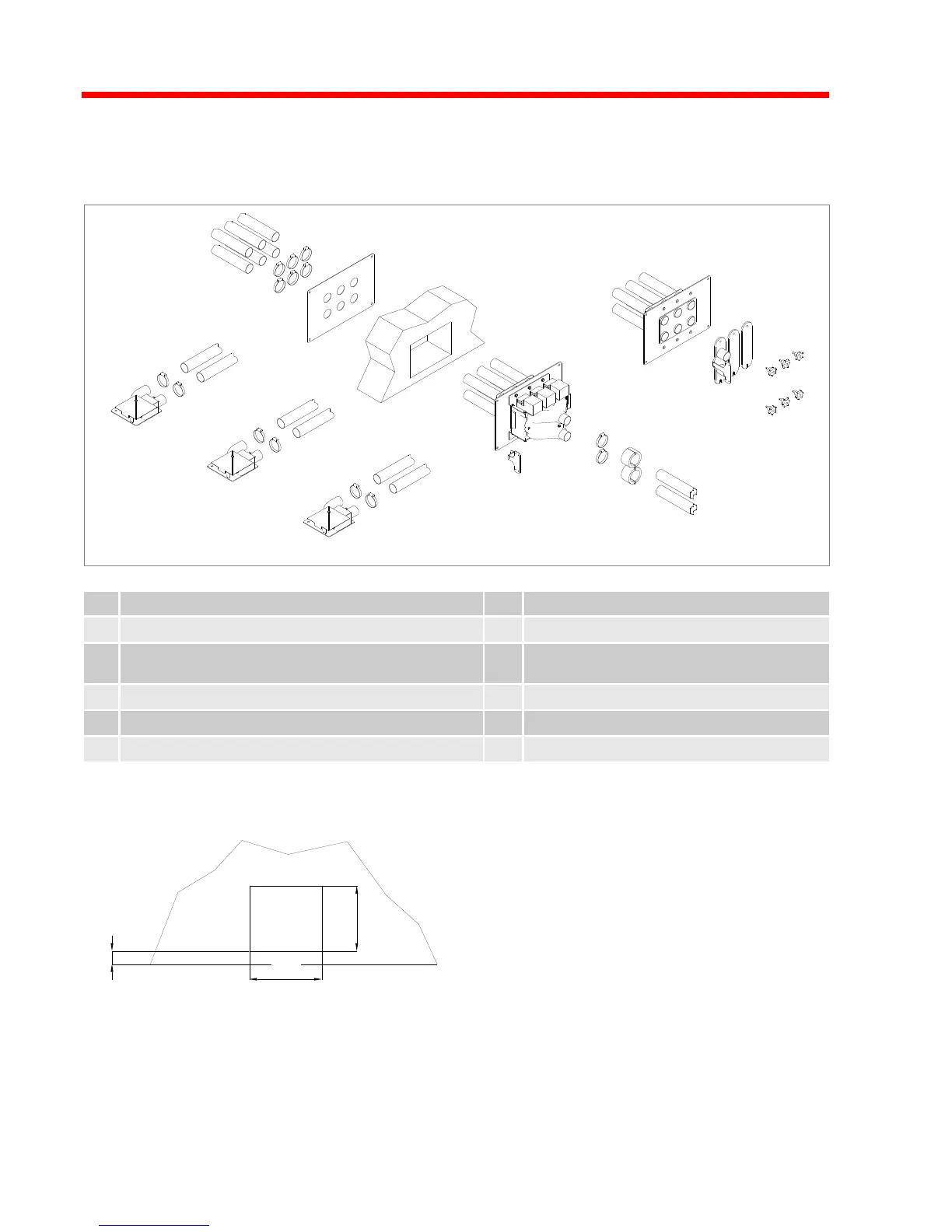

3.6 Install delivery system
3.6.1 Universal suction system
A
25 m Suction hose
G
Manual re-arranging unit (Variant 2)
B
Hose clamps 50-65 mm
H
2 Blind plates (Variant 2)
C
2 Fire protection choke collar
(Optional)
I
6 Star-shaped handle (Variant 2)
D
Comfort pellet box (Variant 1)
J
Cover plate for wall
E
Support for fire protection choke collar (Variant 1)
K
Suction probe
F
Installation module for wall
280
250
50
Before installation:
 Prepare hole in the wall for the pellet box (width:
11” (28cm), height: 10” (25cm)).
 Maintain a distance of at least 2” (5 cm) from
the finished floor.
F
G
I
A
C
A
B
E
D
J
B
A
B
K
Variant 2 - Eco Pellet Box
Variant 1 - Comfort pellet box
G
H
280
Dimensions in mm
50
250
