5 Plumbing Systems
This chapter contains examples of plumbing schematics that are most
suitable for the P4 Pellet boiler. They are merely examples and are no
substitute for complete system planning.
We reserve the right to make technical changes without prior notice.
If you need more information, please contact Tarm Biomass.

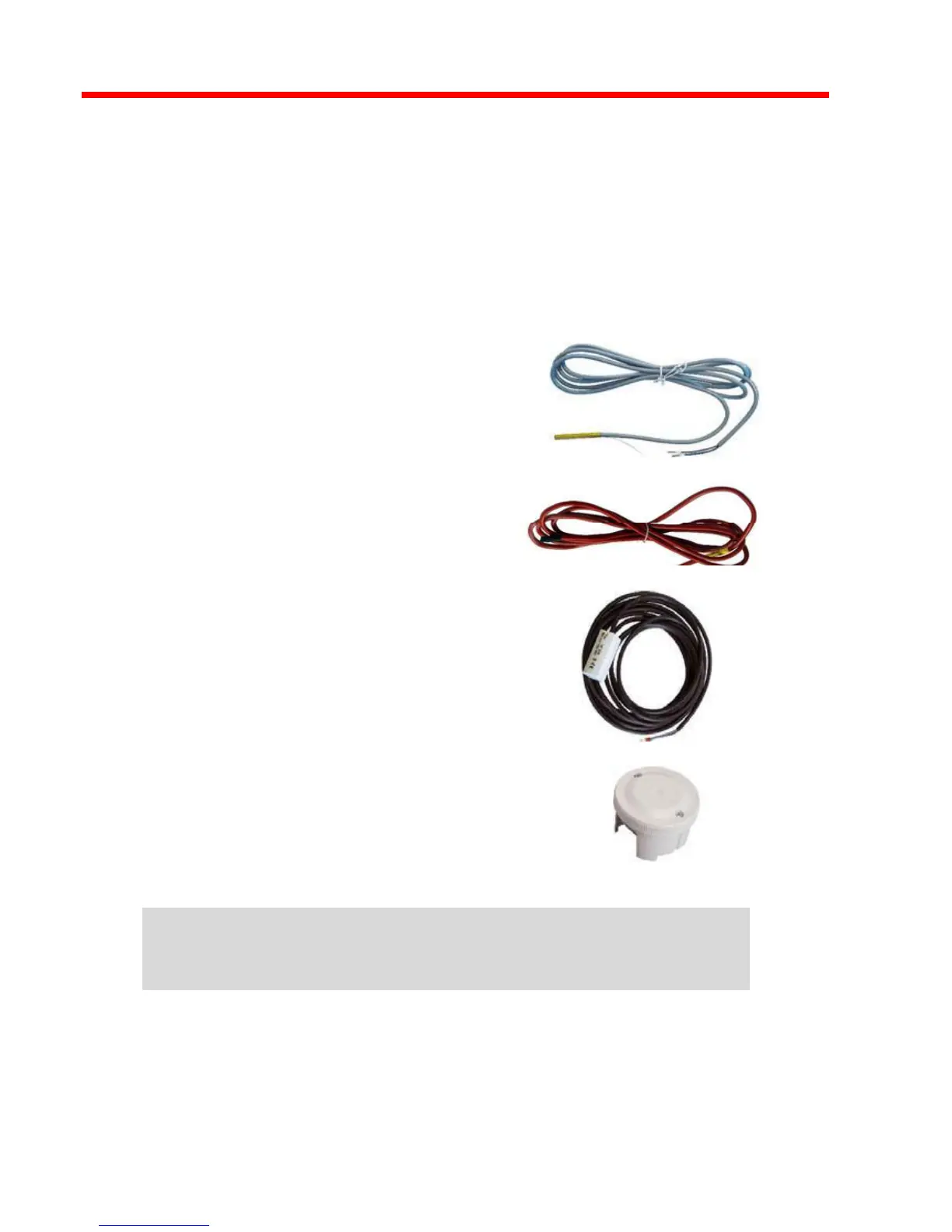

5.1 Sensors
5.1.1 Immersion Sensor-Boiler sensor, DHW
Sensor, Storage Tank Sensor (Item #18641).
5.1.2 Solar Collector Sensor- (Item #67036)
5.1.3 Contact Sensor- Return feed sensor, supply feed
sensor (Item # 67391A). (NOT USED AT THIS TIME)
5.1.4 External Sensor (NOT USED AT THIS TIME)
Technical specification for the sensors listed above:
Resistance sensor type: KVT 20/KTY 10; approx. 2k at 20ºC
Maximum cable lenghth: 130 ft (40m) with shielded cable
