Froling P4 Installation Manual

Installation
Install delivery system
Page 38
M0930207 I
3

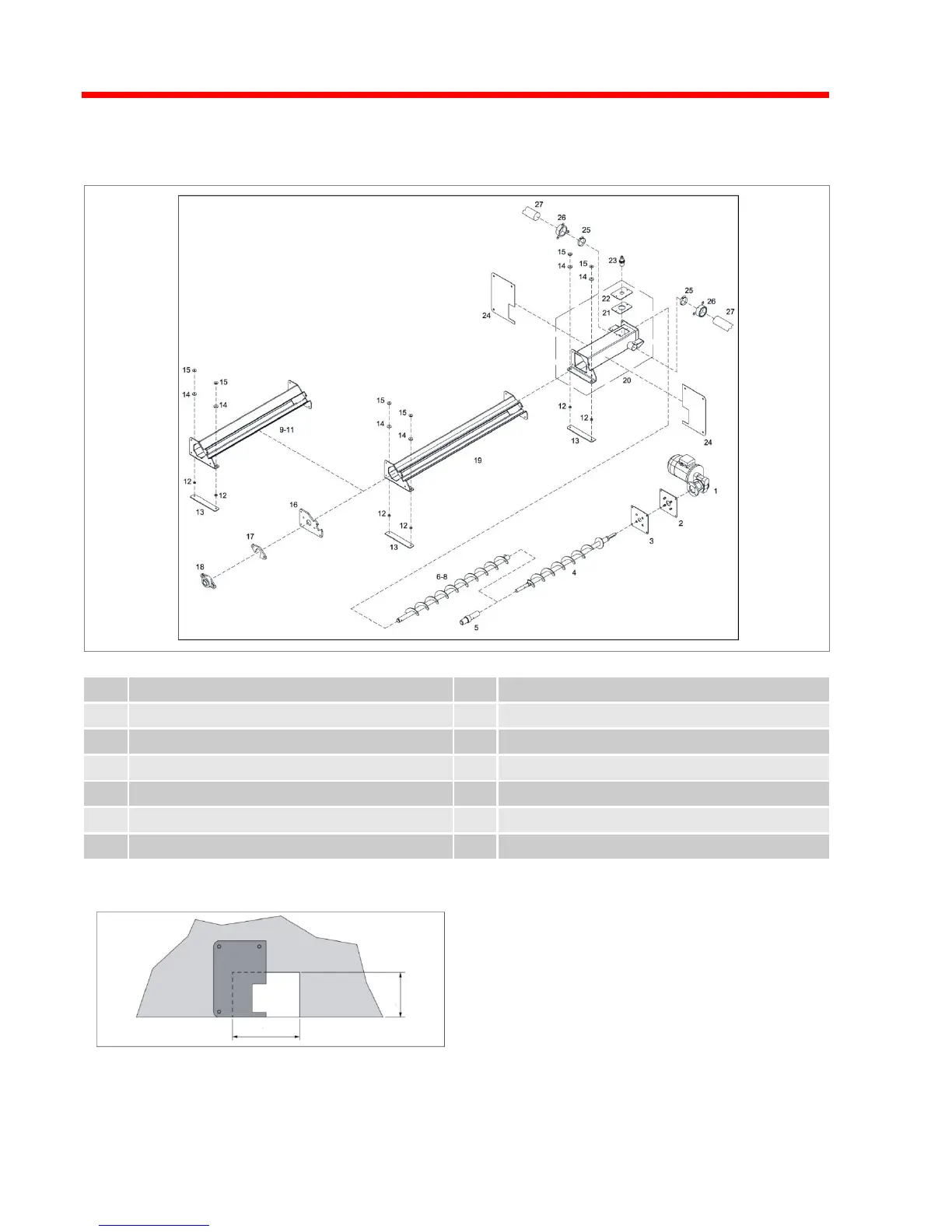

3.6.2 Suction screw system
A
Flange bearing
H
Gearbox flange
B
Ejector flange
I
Drive flange seal
C
Trough mount with rubber pad
J
Geared motor
D
Bearing flange
K
2 Cover plates for wall penetration
E
Open trough
L
Main worm
F
Suction intake with integrated support
M
Shaft end for main worm
G
Proximity switch
N
Worm extension (if needed)
Before installation:
 Prepare hole in wall for suction intake (width:
30cm, height: 20cm).
 Position the hole in the wall so that the feed
screw is in the middle of the room.
 See complete assembly instructions
“Suction screw system DM80”
A
B
C
D
E
F
M
L
K
H
I
J
N
G
300 mm
200 mm
