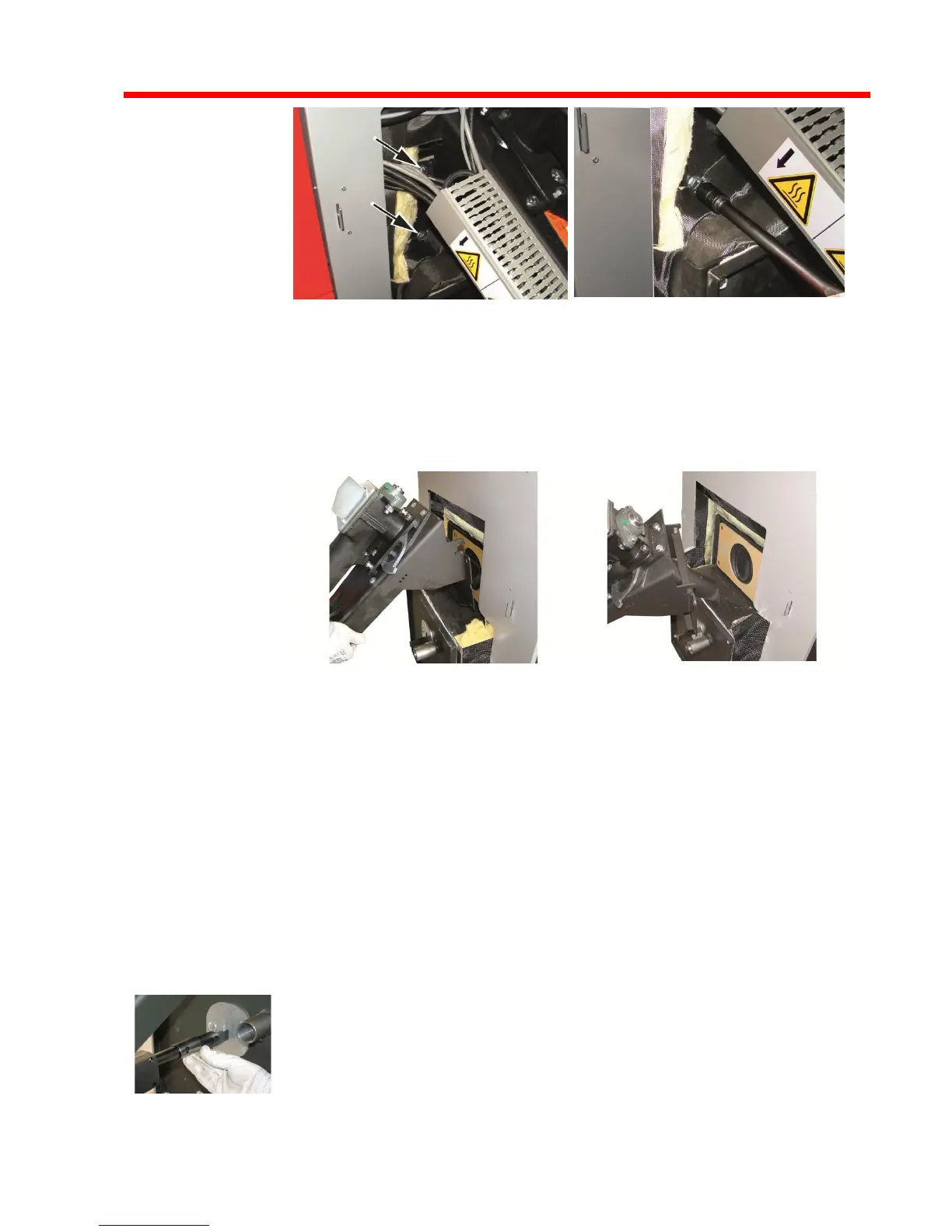

❒ Push the heat insulation mat aside slightly and remove two bolts each
from the right and left of the flange of the stoker unit.
You can remove the bolts completely as the stoker unit is
secured to the boiler with two hooks.
Notice! The following steps require two people:
▪ Weight of stoker unit P4 Pellet 80 - 100: approx. 31 lbs.
❒ Pull the stoker unit up slightly until the hooks come out of the stoker
flange.
❒ Tip the unit back slightly and lift away.
The P4 is now fully dismantled and can be brought in.
3.3.4 Notes for reassembly
❒ After positioning, reassemble the boiler in the reverse order.
It is particularly important to carry out the following steps during
assembly:
❒ Check that the housing is in the right position at the grate rod (see figure).
