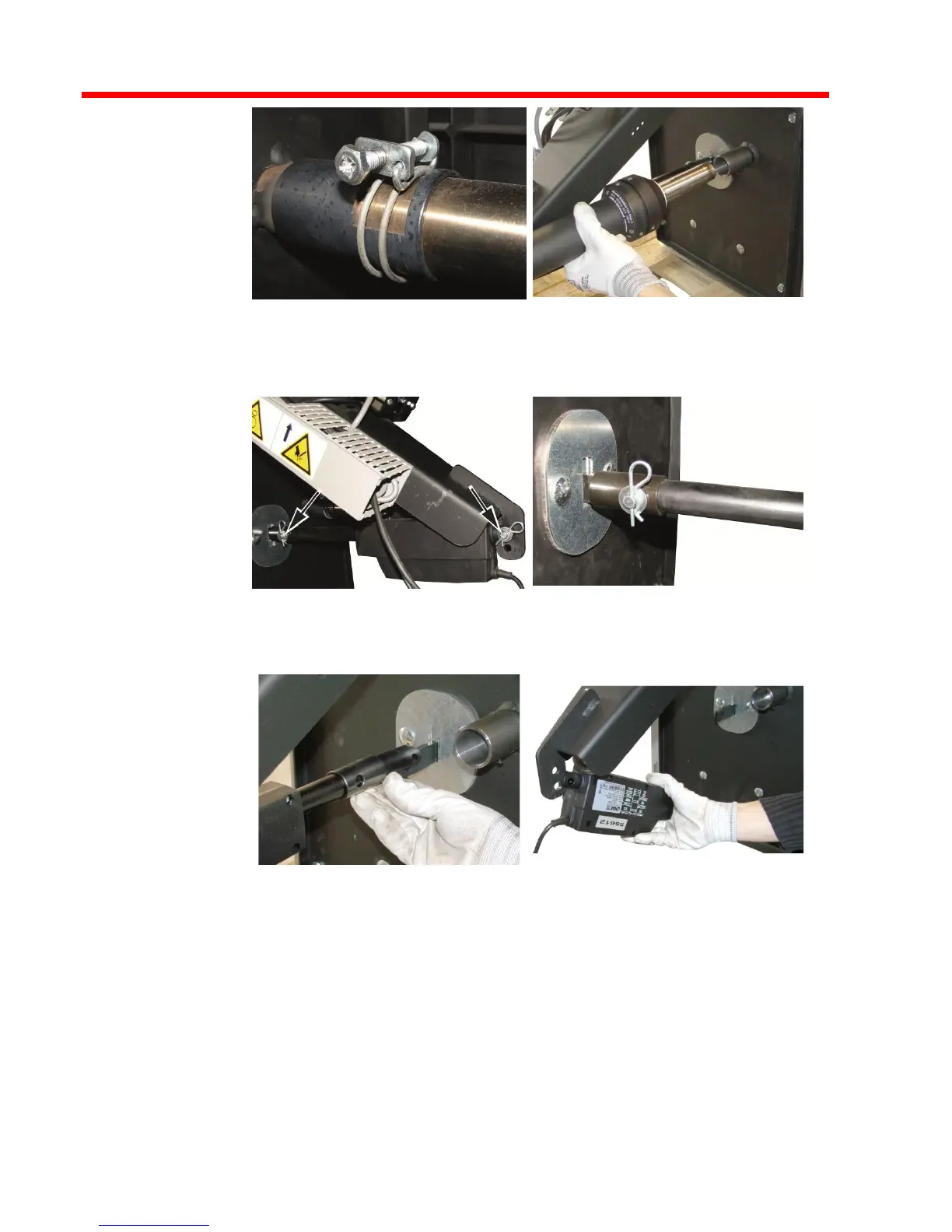

❒ Undo the screw and remove the clamp on the igniter.
❒ Remove the igniter.
❒ Remove the cotter pin at the front and back of the grate drive and remove
the bolts.
 CAUTION: Secure the grate motor so that it does not fall!
❒ Push the sleeve on the grate rod back.
❒ Remove the grate motor.
