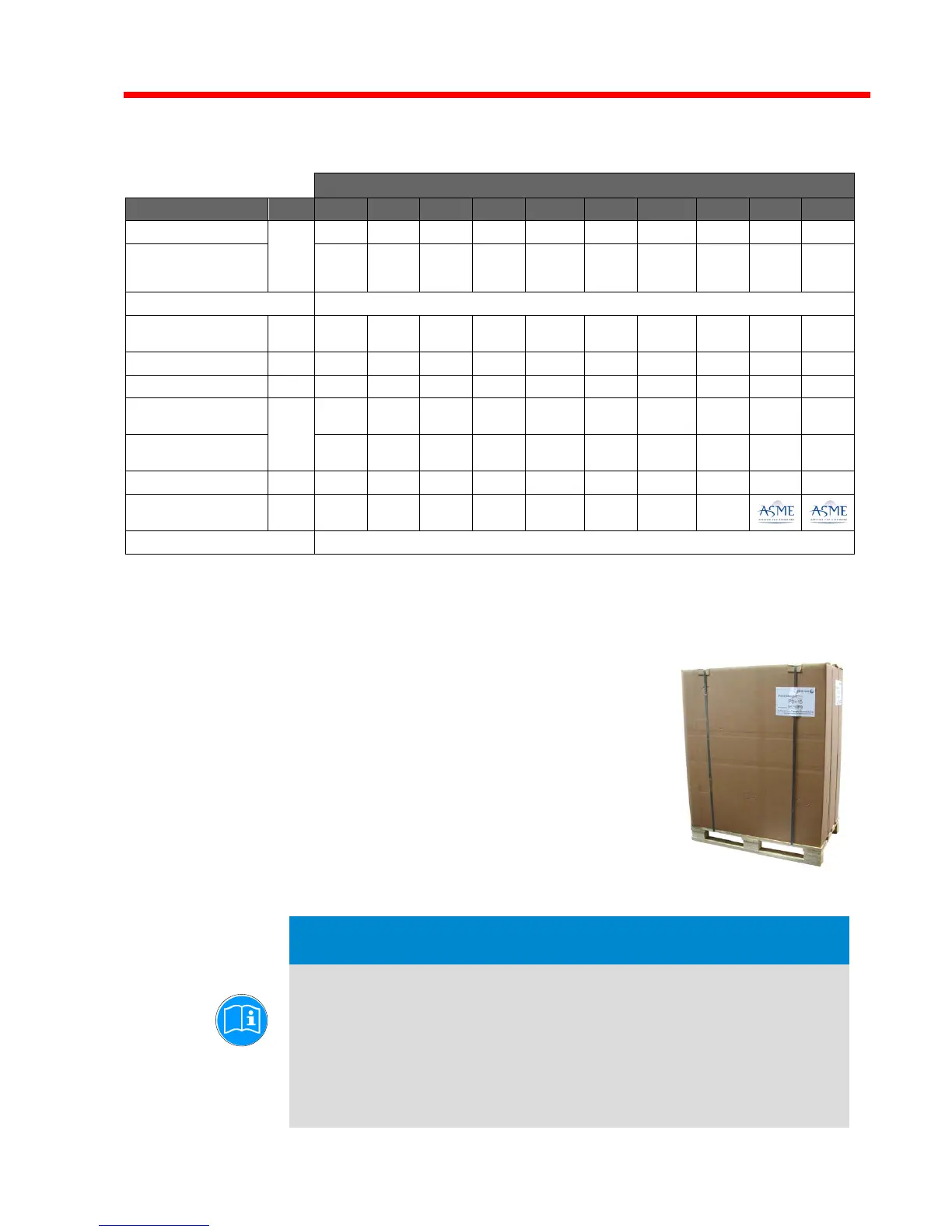

2.3 Specification Data
P4 Pellet
Component
Unit
8
15
20
25
32
38
48
60
80
100
Rated heat output
Btu/
Hr
35,800
50,800
68,200
85,300
109,000
129,650
163,780
200,000
273,000
341,000
Heating efficiency
range
10,500
-
35,800
10,500
-
50,800
20,500
-
68,200
25,600
-
83,300
30,400
-
109,000
30,400
-
129,650
57,300
-
163,780
57,300
-
200,000
82,000
-
273,000
102,000
-
341,000
Electrical Connection
240V / 60Hz fused 15A
Electrical
Consumption
W
96
123
110
110
110
110
120
120
120
120
Weight of boiler
1)
lbs
772
772
948
948
1168
1168
1676
1676
2425
2425
Water Contents
gals
18.5
18.5
21
21
33
33
45
45
74
74
Maximum boiler
temperature setting
°F
176
176
176
176
176
176
176
176
190
190
Minimum boiler
temperature setting
104
104
104
104
104
104
104
104
104
104
Boiler Test Pressure
psi
65
65
65
65
65
65
65
65
65
65
Pressure Vessel
Standard
EN
303-5
EN
303-5
EN
303-5
EN
303-5
EN
303-5
EN
303-5
EN
303-5
EN
303-5
Permitted fuel
Wood pellets Ø (¼”) 6mm
3 Boiler Installation
3.1 Transport
The boiler is delivered packed in cardboard
and on a pallet.
 Move the boiler without jarring or
jolting.
 Follow the instructions on the
packaging when moving the boiler.
3.1.1 Positioning
NOTICE
Damage to components if handled incorrectly
❒ Follow the transport instructions on the packaging.
❒ Transport components with care to avoid damage.
❒ Protect the packaging against damp conditions.
❒ Pay attention to the pallet's center of gravity when lifting.

Froling P4 Specifications

General

Model	P4
Category	Boiler
Fuel Type	Wood Pellets
Automatic Ignition	Yes
Automatic Cleaning	Yes
Touchscreen Control	Yes
Remote Monitoring	Yes
Weight	Varies depending on model
Dimensions (H x W x D)	Varies depending on model
