Froling P4 - Bag Silo System

Installation
Install delivery system
Page 42
M0930207 I
3

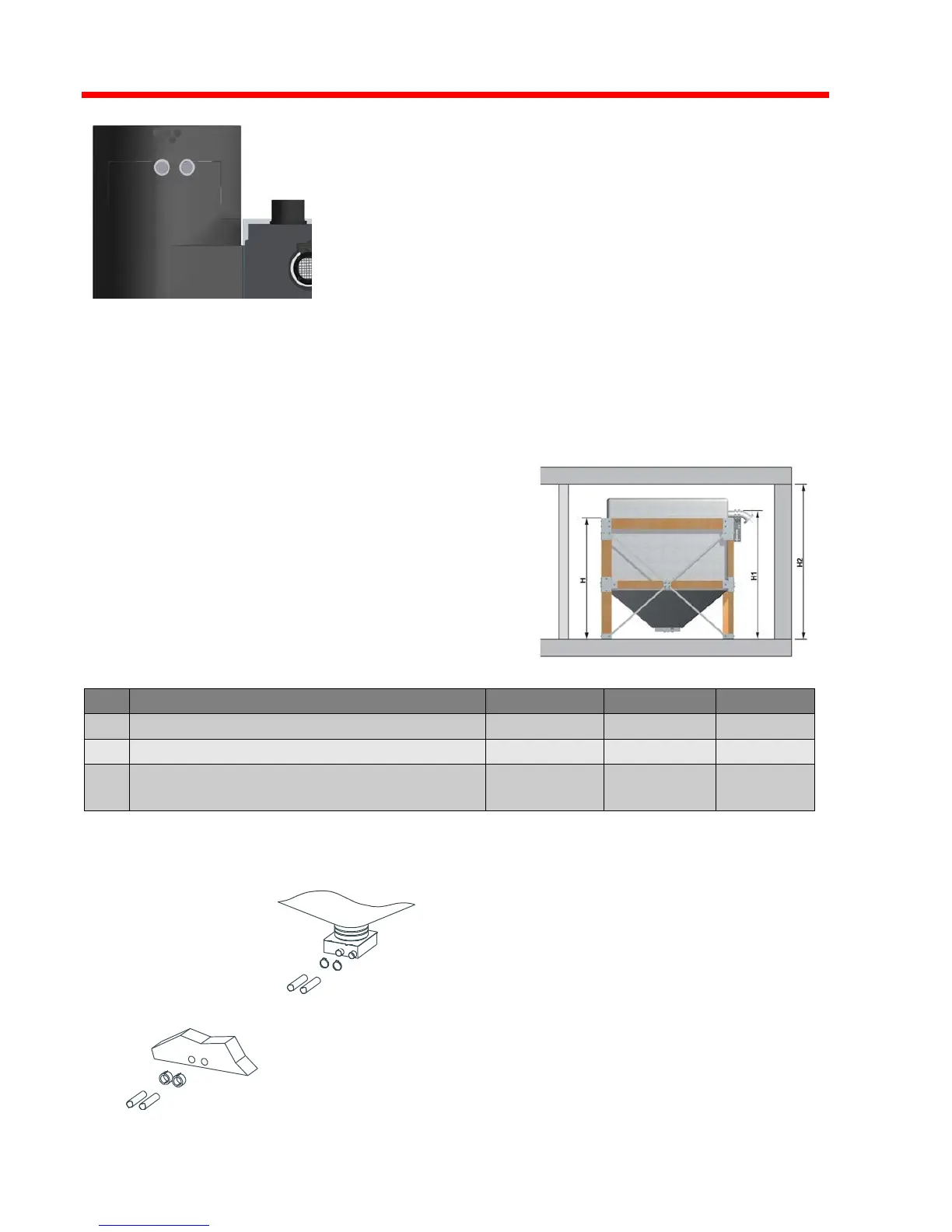

 Lay the hose lines to the boiler, through
identified openings at the back plate and install
with hose clamps to the identified connections.
 WARNING! Read the label on the suction
probe or pellet box about the suction line and
return-air line! Ensure correct connection!
 Suction line: hose line to left connection (1)
on the back of the boiler.
 Return-air line: hose line to right connection
(2) on the back of the boiler.
 WARNING! When connecting the hose lines,
be aware of correct grounding!
 Page 12, Proper Hose Grounding.
 Mount the included Safety Placard.
3.6.3 Bag silo system
 Fit frame with sack silo
 See assembly instructions “Pellet bag silo
Type 10 - 50”
 Observe the height of the boiler room during planning.
Type 10
Type 20
Type 30
H
Bag silo frame height inches
72
72
75
H1
Height including filler coupling inches
81
81
83
H2
Required minimum room height
1)
inches
Ideal store room height
2)
inches
75
90½
75
90½
77
90½
1) Minimum room height for connection to filler pipe in installation room (filler coupling mounted below frame).
2) When full, the bag silo has a “hood” shape. The optimum height is to make the best use of the total capacity.
 Thread one fire protection choke collar each (B)
on to the suction and return-air lines (optional).
 Run hose lines through the openings in the wall
into the pellet store.
 Secure the hose lines to the silo suction probe
using hose clamps (D).
 Read the label on the silo suction probe!
 Suction line: hose line to the cover of the
suction cyclone.
 Return-air line: hose line to the suction
motor.
1
2
B
D
